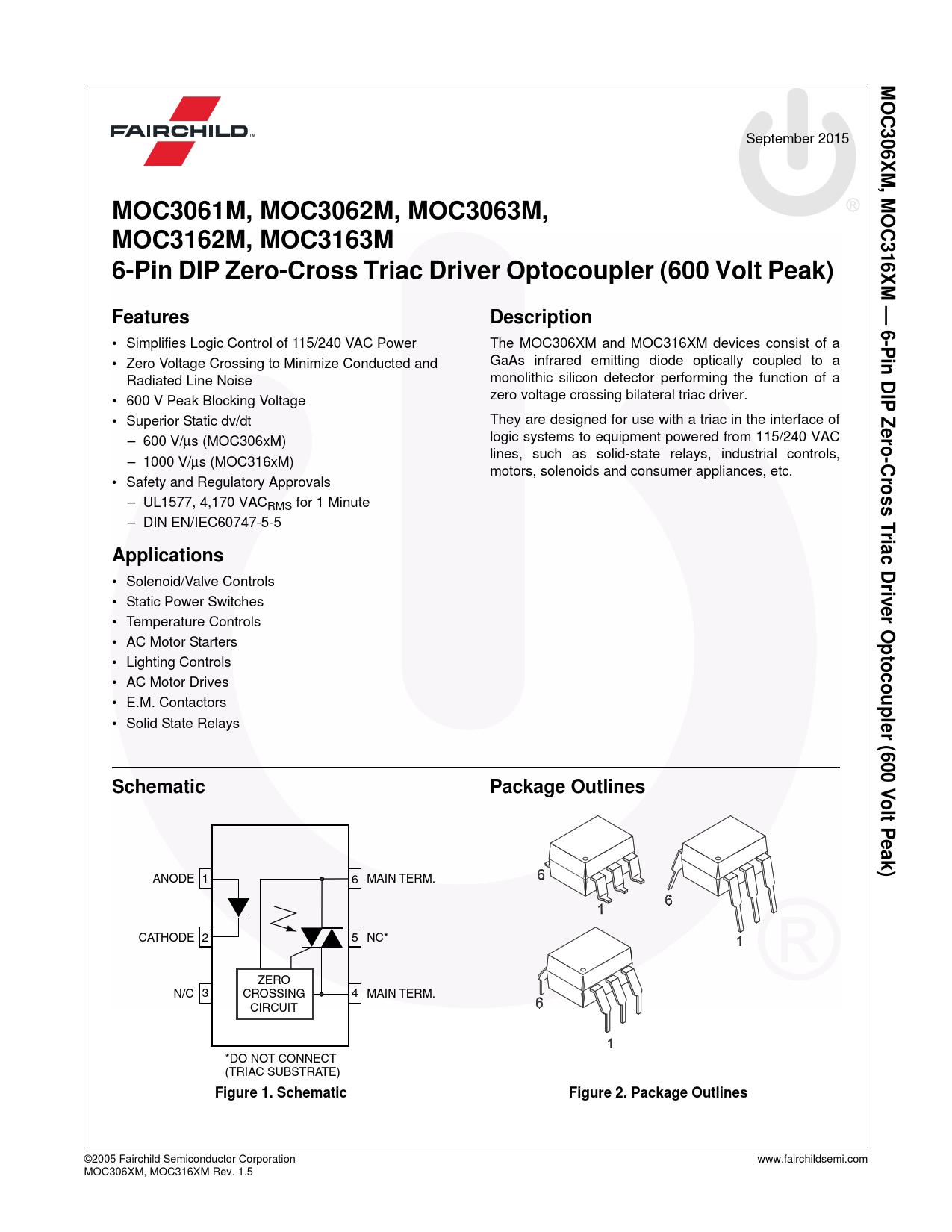

MOC3061M, MOC3062M, MOC3063M,
MOC3162M, MOC3163M
6-Pin DIP Zero-Cross Triac Driver Optocoupler (600 Volt Peak)
Features Description • Simplifies Logic Control of 115/240 VAC Power
• Zero Voltage Crossing to Minimize Conducted and
Radiated Line Noise
• 600 V Peak Blocking Voltage
• Superior Static dv/dt
– 600 V/μs (MOC306xM)
– 1000 V/μs (MOC316xM)
• Safety and Regulatory Approvals
– UL1577, 4,170 VACRMS for 1 Minute
– DIN EN/IEC60747-5-5 The MOC306XM and MOC316XM devices consist of a
GaAs infrared emitting diode optically coupled to a
monolithic silicon detector performing the function of a
zero voltage crossing bilateral triac driver.
They are designed for use with a triac in the interface of
logic systems to equipment powered from 115/240 VAC
lines, such as solid-state relays, industrial controls,
motors, solenoids and consumer appliances, etc. Applications
•
•
•
•
•
•
•
• Solenoid/Valve Controls
Static Power Switches
Temperature Controls
AC Motor Starters
Lighting Controls
AC Motor Drives
E.M. Contactors
Solid State Relays Schematic Package Outlines ANODE 1 6 MAIN TERM. 5 NC* CATHODE 2 N/C 3 ZERO
CROSSING
CIRCUIT 4 MAIN TERM. *DO NOT CONNECT
(TRIAC SUBSTRATE) Figure 1. Schematic ©2005 Fairchild Semiconductor Corporation
MOC306XM, MOC316XM Rev. 1.5 Figure 2. Package Outlines www.fairchildsemi.com MOC306XM, MOC316XM — 6-Pin DIP Zero-Cross Triac Driver Optocoupler (600 Volt Peak) September 2015
