Datasheet MOC3061M, MOC3062M, MOC3063M, MOC3162M, MOC3163M (ON Semiconductor) - 3
| 制造商 | ON Semiconductor |
| 描述 | 6-Pin DIP Zero-Cross Triac Driver Optocoupler (600 Volt Peak) |
| 页数 / 页 | 14 / 3 — As per DIN EN/IEC 60747-5-5, this optocoupler is suitable for “safe … |
| 文件格式/大小 | PDF / 444 Kb |
| 文件语言 | 英语 |

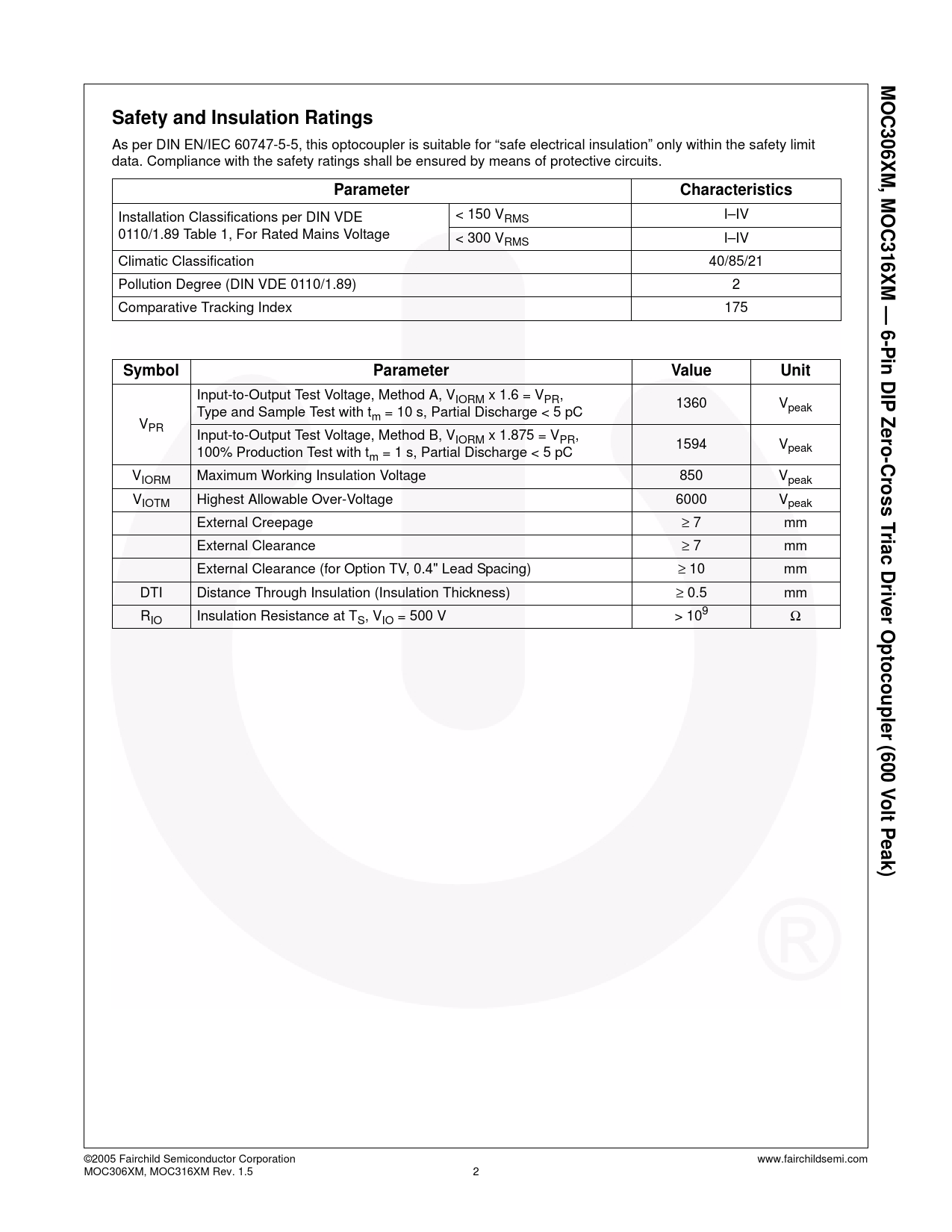

As per DIN EN/IEC 60747-5-5, this optocoupler is suitable for “safe electrical insulation” only within the safety limit
文件文字版本
As per DIN EN/IEC 60747-5-5, this optocoupler is suitable for “safe electrical insulation” only within the safety limit
data. Compliance with the safety ratings shall be ensured by means of protective circuits. Parameter
Installation Classifications per DIN VDE
0110/1.89 Table 1, For Rated Mains Voltage Characteristics
I–IV < 150 VRMS I–IV < 300 VRMS Climatic Classification 40/85/21 Pollution Degree (DIN VDE 0110/1.89) 2 Comparative Tracking Index Symbol 175 Value Unit Input-to-Output Test Voltage, Method A, VIORM x 1.6 = VPR,
Type and Sample Test with tm = 10 s, Partial Discharge < 5 pC 1360 Vpeak Input-to-Output Test Voltage, Method B, VIORM x 1.875 = VPR,
100% Production Test with tm = 1 s, Partial Discharge < 5 pC 1594 Vpeak VIORM Maximum Working Insulation Voltage 850 Vpeak VIOTM Highest Allowable Over-Voltage VPR Parameter 6000 Vpeak External Creepage ≥7 mm External Clearance ≥7 mm External Clearance (for Option TV, 0.4" Lead Spacing) ≥ 10 mm DTI Distance Through Insulation (Insulation Thickness) ≥ 0.5 mm RIO Insulation Resistance at TS, VIO = 500 V > 109 Ω ©2005 Fairchild Semiconductor Corporation
MOC306XM, MOC316XM Rev. 1.5 www.fairchildsemi.com
2 MOC306XM, MOC316XM — 6-Pin DIP Zero-Cross Triac Driver Optocoupler (600 Volt Peak) Safety and Insulation Ratings
