Datasheet AD8417 (Analog Devices) - 5
| 制造商 | Analog Devices |
| 描述 | Bidirectional, Zero Drift, Current Sense Amplifier |
| 页数 / 页 | 17 / 5 — AD8417. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 3. Parameter. Rating. … |
| 修订版 | D |
| 文件格式/大小 | PDF / 409 Kb |
| 文件语言 | 英语 |
AD8417. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 3. Parameter. Rating. ESD CAUTION
文件文字版本

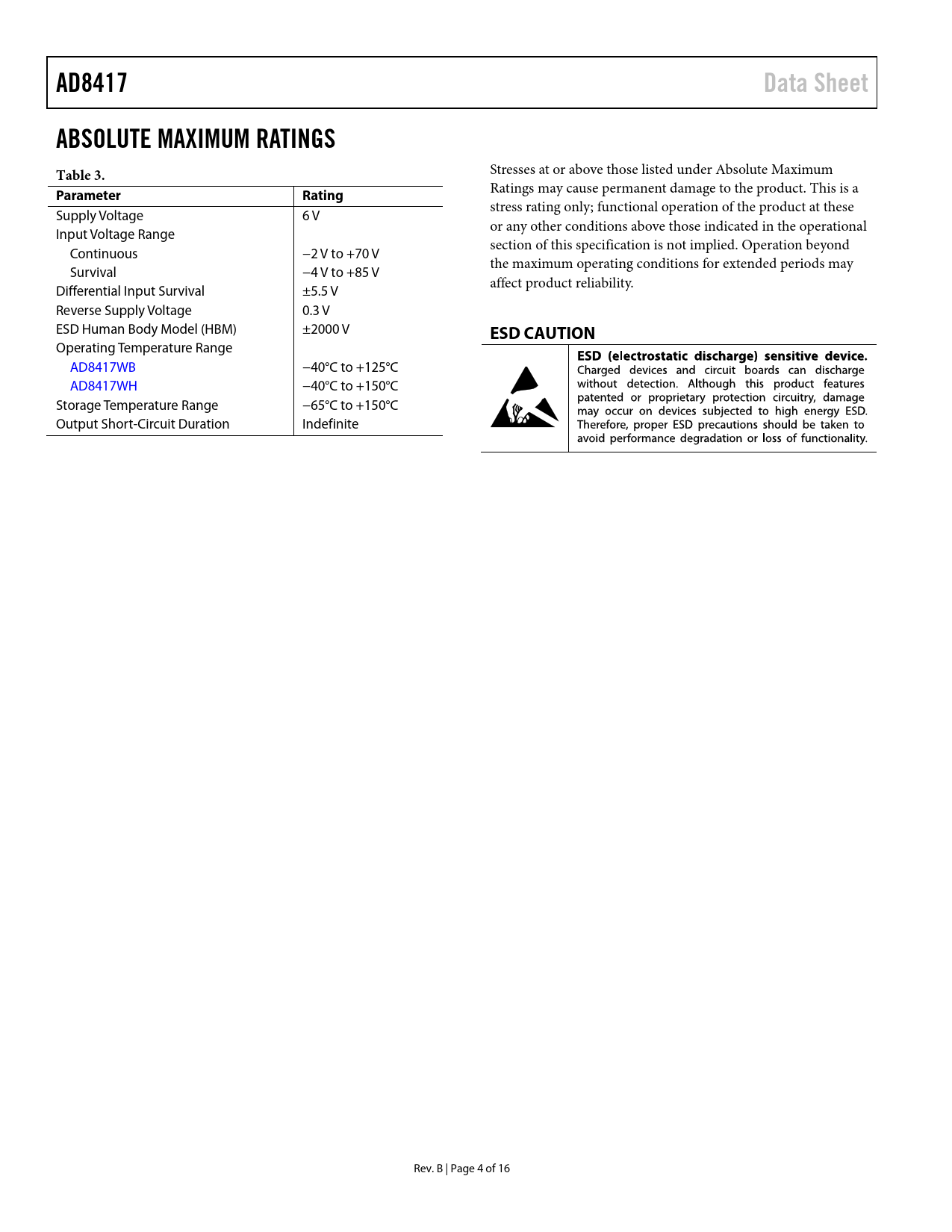

AD8417 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 3.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these Supply Voltage 6 V or any other conditions above those indicated in the operational Input Voltage Range section of this specification is not implied. Operation beyond Continuous −2 V to +70 V the maximum operating conditions for extended periods may Survival −4 V to +85 V affect product reliability. Differential Input Survival ±5.5 V Reverse Supply Voltage 0.3 V ESD Human Body Model (HBM) ±2000 V
ESD CAUTION
Operating Temperature Range AD8417WB −40°C to +125°C AD8417WH −40°C to +150°C Storage Temperature Range −65°C to +150°C Output Short-Circuit Duration Indefinite Rev. B | Page 4 of 16 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION OUTPUT OFFSET ADJUSTMENT UNIDIRECTIONAL OPERATION Ground Referenced Output Mode VS Referenced Output Mode BIDIRECTIONAL OPERATION EXTERNAL REFERENCED OUTPUT SPLITTING THE SUPPLY SPLITTING AN EXTERNAL REFERENCE APPLICATIONS INFORMATION MOTOR CONTROL 3-Phase Motor Control H-Bridge Motor Control SOLENOID CONTROL High-Side Current Sense with a Low-Side Switch High-Side Current Sense with a High-Side Switch High Rail Current Sensing OUTLINE DIMENSIONS ORDERING GUIDE AUTOMOTIVE PRODUCTS
