Datasheet AD713 (Analog Devices) - 6
| 制造商 | Analog Devices |
| 描述 | Precision, High Speed, BiFET Quad Op Amp |
| 页数 / 页 | 21 / 6 — AD713. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter Rating. THERMAL … |
| 修订版 | C |
| 文件格式/大小 | PDF / 387 Kb |
| 文件语言 | 英语 |
AD713. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter Rating. THERMAL RESISTANCE. Table 3. Thermal Resistance. Package Type. θJA
该数据表的模型线
文件文字版本
link to page 6

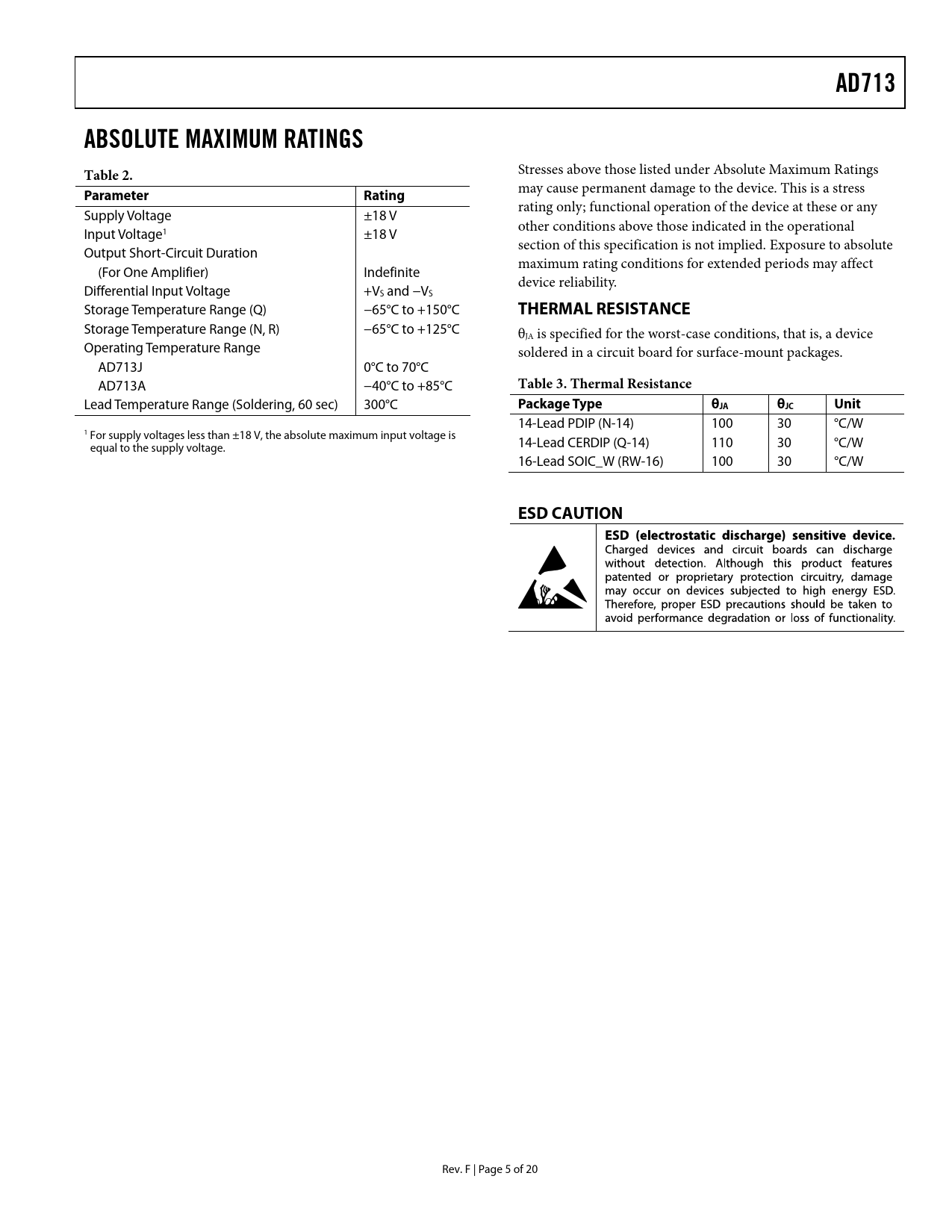

AD713 ABSOLUTE MAXIMUM RATINGS Table 2.
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress
Parameter Rating
rating only; functional operation of the device at these or any Supply Voltage ±18 V other conditions above those indicated in the operational Input Voltage1 ±18 V section of this specification is not implied. Exposure to absolute Output Short-Circuit Duration maximum rating conditions for extended periods may affect (For One Amplifier) Indefinite device reliability. Differential Input Voltage +VS and −VS Storage Temperature Range (Q) −65°C to +150°C
THERMAL RESISTANCE
Storage Temperature Range (N, R) −65°C to +125°C θJA is specified for the worst-case conditions, that is, a device Operating Temperature Range soldered in a circuit board for surface-mount packages. AD713J 0°C to 70°C AD713A −40°C to +85°C
Table 3. Thermal Resistance
Lead Temperature Range (Soldering, 60 sec) 300°C
Package Type θJA θJC Unit
14-Lead PDIP (N-14) 100 30 °C/W 1 For supply voltages less than ±18 V, the absolute maximum input voltage is 14-Lead CERDIP (Q-14) 110 30 °C/W equal to the supply voltage. 16-Lead SOIC_W (RW-16) 100 30 °C/W
ESD CAUTION
Rev. F | Page 5 of 20 Document Outline FEATURES APPLICATIONS CONNECTION DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS THEORY OF OPERATION MEASURING AD713 SETTLING TIME POWER SUPPLY BYPASSING A HIGH SPEED INSTRUMENTATION AMPLIFIER CIRCUIT A HIGH SPEED 4-OP-AMP CASCADED AMPLIFIER CIRCUIT HIGH SPEED OP AMP APPLICATIONS AND TECHNIQUES DAC Buffers (I-to-V Converters) Driving the Analog Input of an Analog-to-Digital Converter Driving A Large Capacitive Load CMOS DAC APPLICATIONS FILTER APPLICATIONS A Programmable State Variable Filter GIC AND FDNR FILTER APPLICATIONS OUTLINE DIMENSIONS ORDERING GUIDE
