Datasheet OP77 (Analog Devices) - 6
| 制造商 | Analog Devices |
| 描述 | Next Generation OP07, Ultralow Offset Voltage Operational Amplifier |
| 页数 / 页 | 17 / 6 — Data Sheet. OP77. TYPICAL ELECTRICAL CHARACTERISTICS. Table 4. Parameter. … |
| 修订版 | G |
| 文件格式/大小 | PDF / 407 Kb |
| 文件语言 | 英语 |

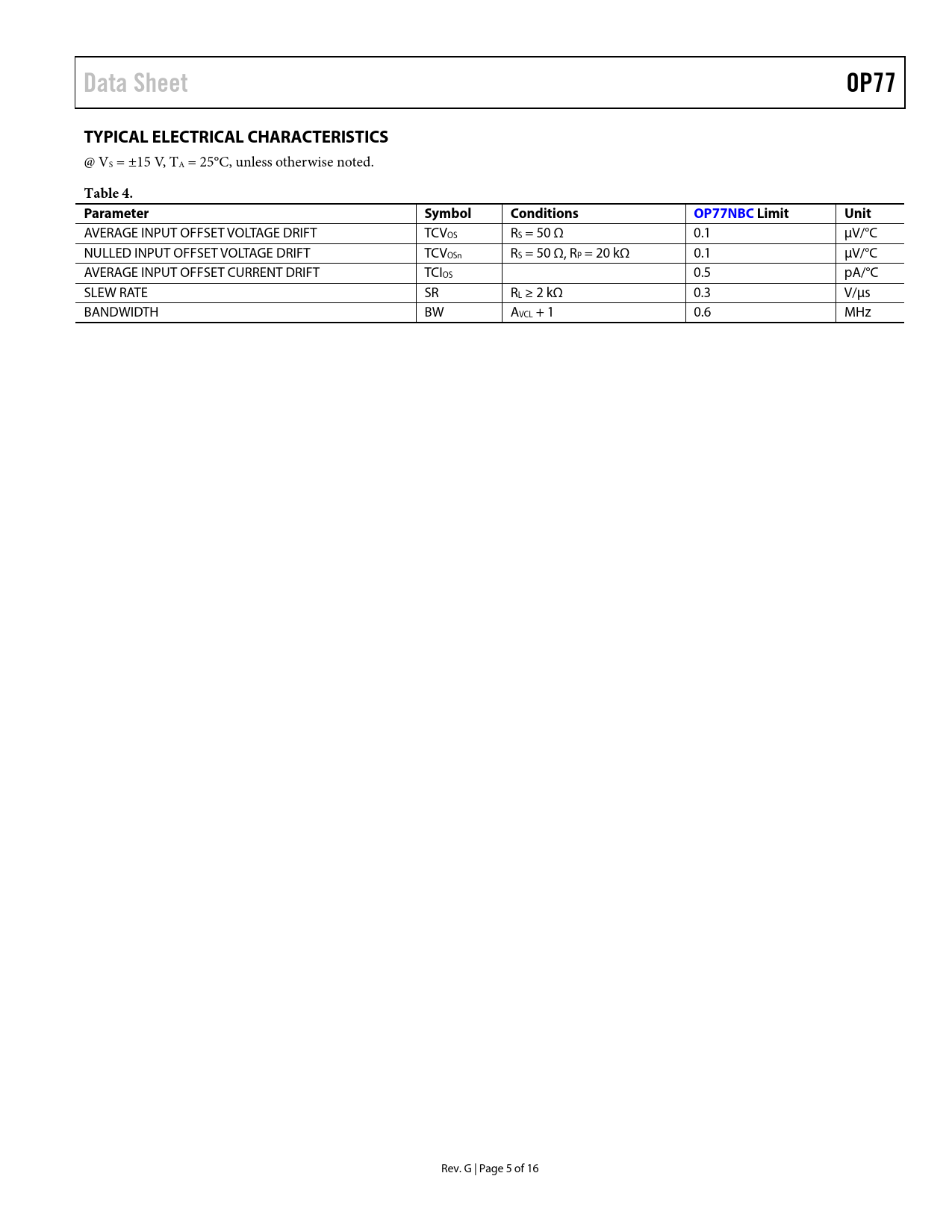

Data Sheet. OP77. TYPICAL ELECTRICAL CHARACTERISTICS. Table 4. Parameter. Symbol. Conditions. OP77NBC L. imit. Unit
文件文字版本
Data Sheet OP77 TYPICAL ELECTRICAL CHARACTERISTICS
@ VS = ±15 V, TA = 25°C, unless otherwise noted.
Table 4. Parameter Symbol Conditions OP77NBC L imit Unit
AVERAGE INPUT OFFSET VOLTAGE DRIFT TCVOS RS = 50 Ω 0.1 µV/°C NULLED INPUT OFFSET VOLTAGE DRIFT TCVOSn RS = 50 Ω, RP = 20 kΩ 0.1 µV/°C AVERAGE INPUT OFFSET CURRENT DRIFT TCIOS 0.5 pA/°C SLEW RATE SR RL ≥ 2 kΩ 0.3 V/µs BANDWIDTH BW AVCL + 1 0.6 MHz Rev. G | Page 5 of 16 Document Outline Features Pin Connections General Description Table of Contents Revision History Specifications Electrical Specifications Wafer Test Limits Typical Electrical Characteristics Absolute Maximum Ratings Thermal Resistance ESD Caution Typical Performance Characteristics Test Circuits Applications Precision Current Sinks Outline Dimensions Ordering Guide
