| 制造商 | Analog Devices |
| 描述 | Next Generation OP07, Ultralow Offset Voltage Operational Amplifier |
| 页数 / 页 | 17 / 7 — OP77. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 5. Parameter1. Rating. … |
| 修订版 | G |
| 文件格式/大小 | PDF / 407 Kb |
| 文件语言 | 英语 |

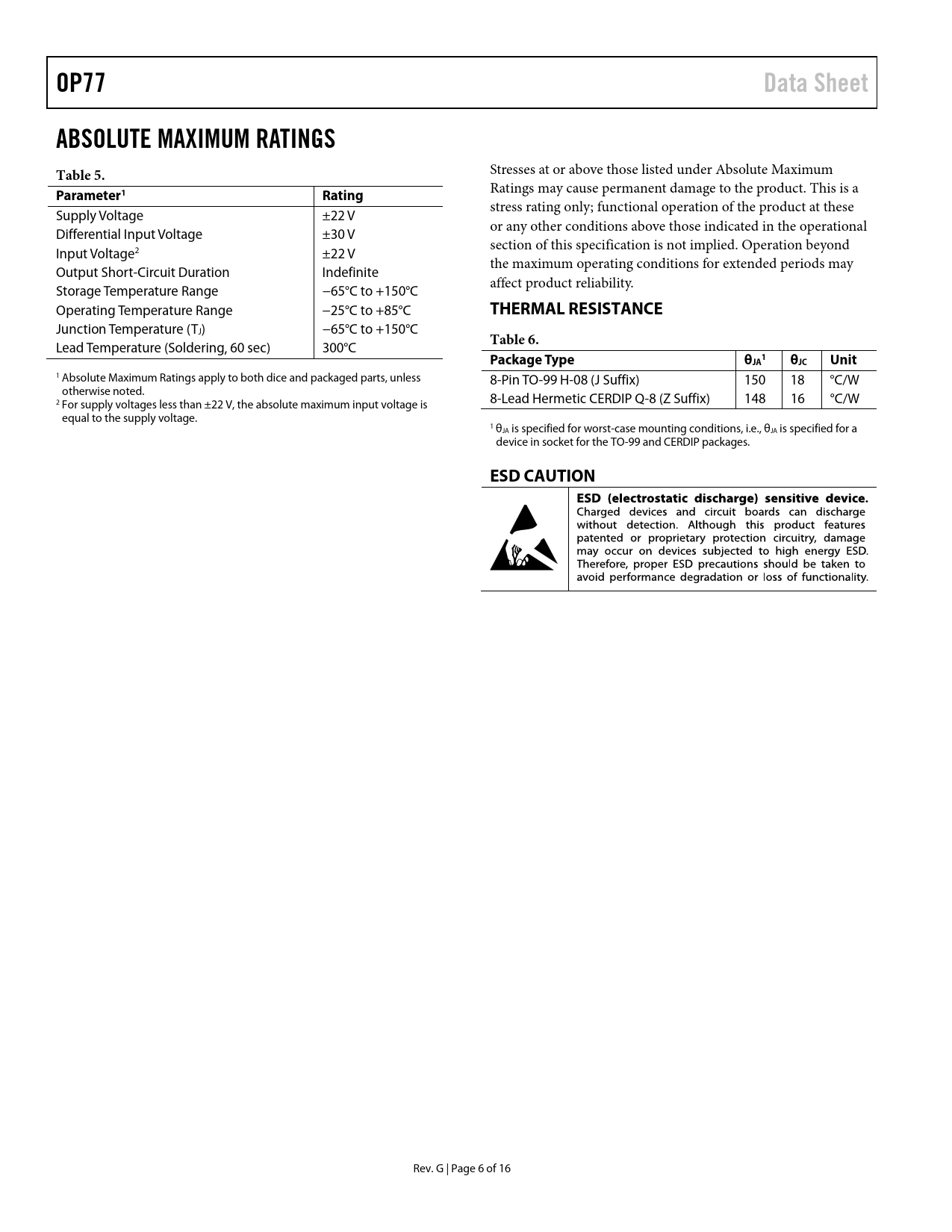

OP77. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 5. Parameter1. Rating. THERMAL RESISTANCE. Table 6. Package Type. θJA. θJC. Unit
文件文字版本
OP77 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 5.
Stresses at or above those listed under Absolute Maximum
Parameter1 Rating
Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these Supply Voltage ±22 V or any other conditions above those indicated in the operational Differential Input Voltage ±30 V section of this specification is not implied. Operation beyond Input Voltage2 ±22 V the maximum operating conditions for extended periods may Output Short-Circuit Duration Indefinite affect product reliability. Storage Temperature Range −65°C to +150°C Operating Temperature Range −25°C to +85°C
THERMAL RESISTANCE
Junction Temperature (TJ) −65°C to +150°C
Table 6.
Lead Temperature (Soldering, 60 sec) 300°C
1 Package Type θJA θJC Unit
1 Absolute Maximum Ratings apply to both dice and packaged parts, unless 8-Pin TO-99 H-08 (J Suffix) 150 18 °C/W otherwise noted. 2 For supply voltages less than ±22 V, the absolute maximum input voltage is 8-Lead Hermetic CERDIP Q-8 (Z Suffix) 148 16 °C/W equal to the supply voltage. 1 θJA is specified for worst-case mounting conditions, i.e., θJA is specified for a device in socket for the TO-99 and CERDIP packages.
