Datasheet ATtiny13A. Summary (Microchip)
| 制造商 | Microchip |
| 描述 | 8-bit AVR Microcontroller with 1K Bytes In-System Programmable Flash |
| 页数 / 页 | 20 / 1 — Features. High Performance, Low Power AVR. 8-Bit Microcontroller. … |
| 文件格式/大小 | PDF / 591 Kb |
| 文件语言 | 英语 |
Features. High Performance, Low Power AVR. 8-Bit Microcontroller. Advanced RISC Architecture
该数据表的模型线
文件文字版本
link to page 6

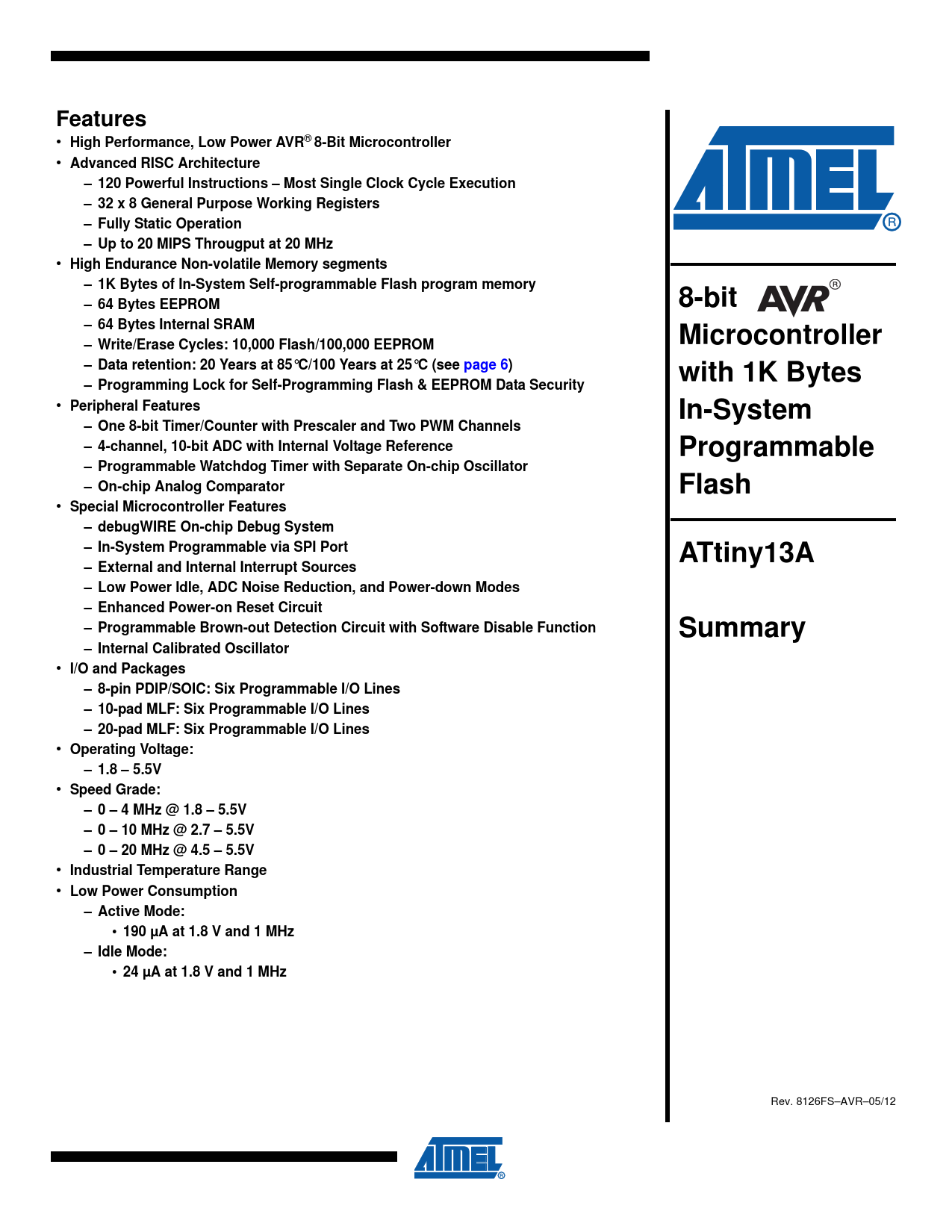

Features
•
High Performance, Low Power AVR
®
8-Bit Microcontroller
•
Advanced RISC Architecture – 120 Powerful Instructions – Most Single Clock Cycle Execution – 32 x 8 General Purpose Working Registers – Fully Static Operation – Up to 20 MIPS Througput at 20 MHz
•
High Endurance Non-volatile Memory segments – 1K Bytes of In-System Self-programmable Flash program memory – 64 Bytes EEPROM 8-bit – 64 Bytes Internal SRAM Microcontroller – Write/Erase Cycles: 10,000 Flash/100,000 EEPROM – Data retention: 20 Years at 85°C/100 Years at 25°C (see page 6 ) with 1K Bytes – Programming Lock for Self-Programming Flash & EEPROM Data Security
•
Peripheral Features In-System – One 8-bit Timer/Counter with Prescaler and Two PWM Channels – 4-channel, 10-bit ADC with Internal Voltage Reference Programmable – Programmable Watchdog Timer with Separate On-chip Oscillator – On-chip Analog Comparator Flash
•
Special Microcontroller Features – debugWIRE On-chip Debug System – In-System Programmable via SPI Port ATtiny13A – External and Internal Interrupt Sources – Low Power Idle, ADC Noise Reduction, and Power-down Modes – Enhanced Power-on Reset Circuit – Programmable Brown-out Detection Circuit with Software Disable Function Summary – Internal Calibrated Oscillator
•
I/O and Packages – 8-pin PDIP/SOIC: Six Programmable I/O Lines – 10-pad MLF: Six Programmable I/O Lines – 20-pad MLF: Six Programmable I/O Lines
•
Operating Voltage: – 1.8 – 5.5V
•
Speed Grade: – 0 – 4 MHz @ 1.8 – 5.5V – 0 – 10 MHz @ 2.7 – 5.5V – 0 – 20 MHz @ 4.5 – 5.5V
•
Industrial Temperature Range
•
Low Power Consumption – Active Mode: • 190 µA at 1.8 V and 1 MHz – Idle Mode: • 24 µA at 1.8 V and 1 MHz
Rev. 8126FS–AVR–05/12 Document Outline Features 1. Pin Configurations 1.1 Pin Description 1.1.1 VCC 1.1.2 GND 1.1.3 Port B (PB5:PB0) 1.1.4 RESET 2. Overview 2.1 Block Diagram 3. About 3.1 Resources 3.2 Code Examples 3.3 Data Retention 4. Register Summary 5. Instruction Set Summary 6. Ordering Information 7. Packaging Information 7.1 8P3 7.2 8S2 7.3 8S1 7.4 20M1 7.5 10M1 8. Errata 8.1 ATtiny13A Rev. G – H 8.2 ATtiny13A Rev. E – F 8.3 ATtiny13 Rev. A – D 9. Datasheet Revision History 9.1 Rev. 8126F – 05/12 9.2 Rev. 8126E – 07/10 9.3 Rev. 8126D – 11/09 9.4 Rev. 8126C – 09/09 9.5 Rev. 8126B – 11/08 9.6 Rev. 8126A – 05/08
