Datasheet ATtiny13A. Summary (Microchip) - 8

制造商Microchip
描述8-bit AVR Microcontroller with 1K Bytes In-System Programmable Flash
页数 / 页20 / 8 — ATtiny13A
文件格式/大小PDF / 591 Kb
文件语言英语

ATtiny13A

ATtiny13A

该数据表的模型线

文件文字版本

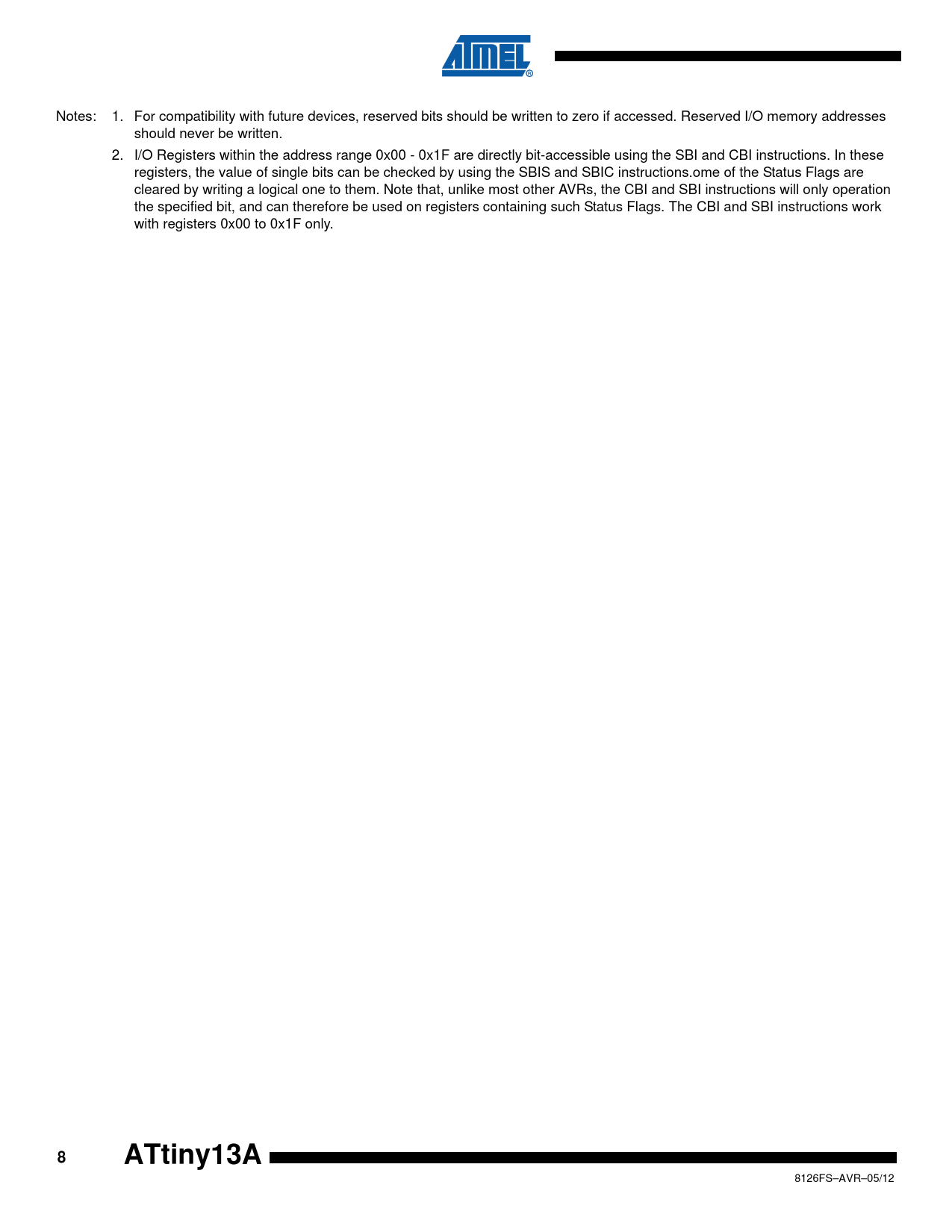

Notes: 1. For compatibility with future devices, reserved bits should be written to zero if accessed. Reserved I/O memory addresses should never be written. 2. I/O Registers within the address range 0x00 - 0x1F are directly bit-accessible using the SBI and CBI instructions. In these registers, the value of single bits can be checked by using the SBIS and SBIC instructions.ome of the Status Flags are cleared by writing a logical one to them. Note that, unlike most other AVRs, the CBI and SBI instructions will only operation the specified bit, and can therefore be used on registers containing such Status Flags. The CBI and SBI instructions work with registers 0x00 to 0x1F only.
8 ATtiny13A
