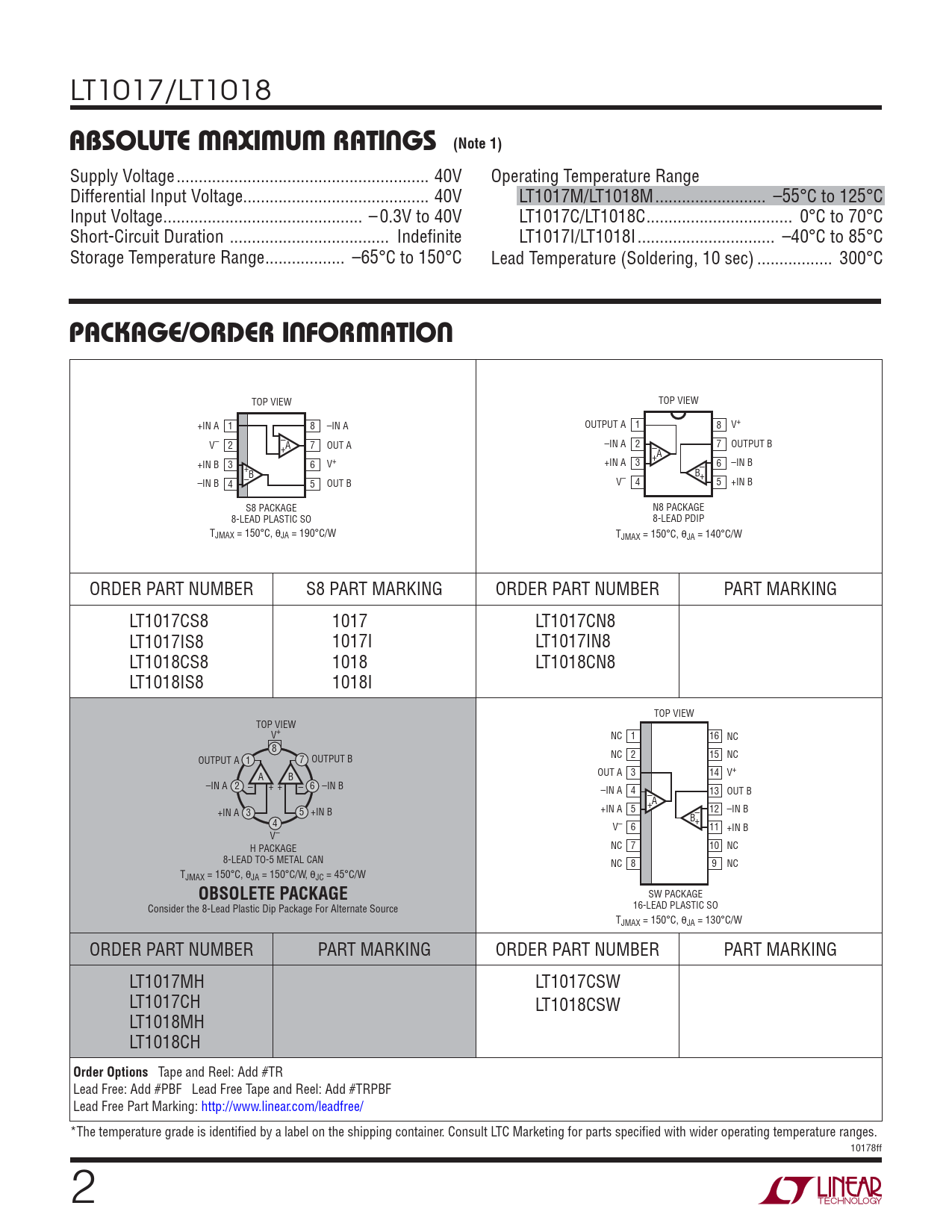

LT1017/LT1018
ABSOLUTE MAXIMUM RATINGS (Note 1)
Supply Voltage ... 40V Operating Temperature Range Differential Input Voltage.. 40V LT1017M/LT1018M ... –55°C to 125°C Input Voltage ... – 0.3V to 40V LT1017C/LT1018C ... 0°C to 70°C Short-Circuit Duration .. Indefi nite LT1017I/LT1018I ... –40°C to 85°C Storage Temperature Range .. –65°C to 150°C Lead Temperature (Soldering, 10 sec) ... 300°C
PACKAGE/ORDER INFORMATION
TOP VIEW TOP VIEW +IN A 1 8 –IN A OUTPUT A 1 8 V+ – V– 2 A 7 OUT A –IN A 2 7 OUTPUT B + – + A +IN B 3 6 V+ +IN A 3 6 –IN B + – B + B –IN B – 4 5 OUT B V– 4 5 +IN B S8 PACKAGE N8 PACKAGE 8-LEAD PLASTIC SO 8-LEAD PDIP TJMAX = 150°C, θJA = 190°C/W TJMAX = 150°C, θJA = 140°C/W ORDER PART NUMBER S8 PART MARKING ORDER PART NUMBER PART MARKING LT1017CS8 1017 LT1017CN8 LT1017IS8 1017I LT1017IN8 LT1018CS8 1018 LT1018CN8 LT1018IS8 1018I TOP VIEW TOP VIEW V+ NC 1 16 NC 8 NC 2 15 NC OUTPUT A 1 7 OUTPUT B OUT A 3 14 V+ A B –IN A 2 – + + – 6 –IN B –IN A 4 13 OUT B – + A +IN A +IN A 5 3 5 +IN B 12 –IN B – 4 + B V– 6 11 +IN B V– H PACKAGE NC 7 10 NC 8-LEAD TO-5 METAL CAN NC 8 9 NC TJMAX = 150°C, θJA = 150°C/W, θJC = 45°C/W
OBSOLETE PACKAGE
SW PACKAGE Consider the 8-Lead Plastic Dip Package For Alternate Source 16-LEAD PLASTIC SO TJMAX = 150°C, θJA = 130°C/W ORDER PART NUMBER PART MARKING ORDER PART NUMBER PART MARKING LT1017MH LT1017CSW LT1017CH LT1018CSW LT1018MH LT1018CH
Order Options
Tape and Reel: Add #TR Lead Free: Add #PBF Lead Free Tape and Reel: Add #TRPBF Lead Free Part Marking: http://www.linear.com/leadfree/ *The temperature grade is identifi ed by a label on the shipping container. Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. 10178ff 2
