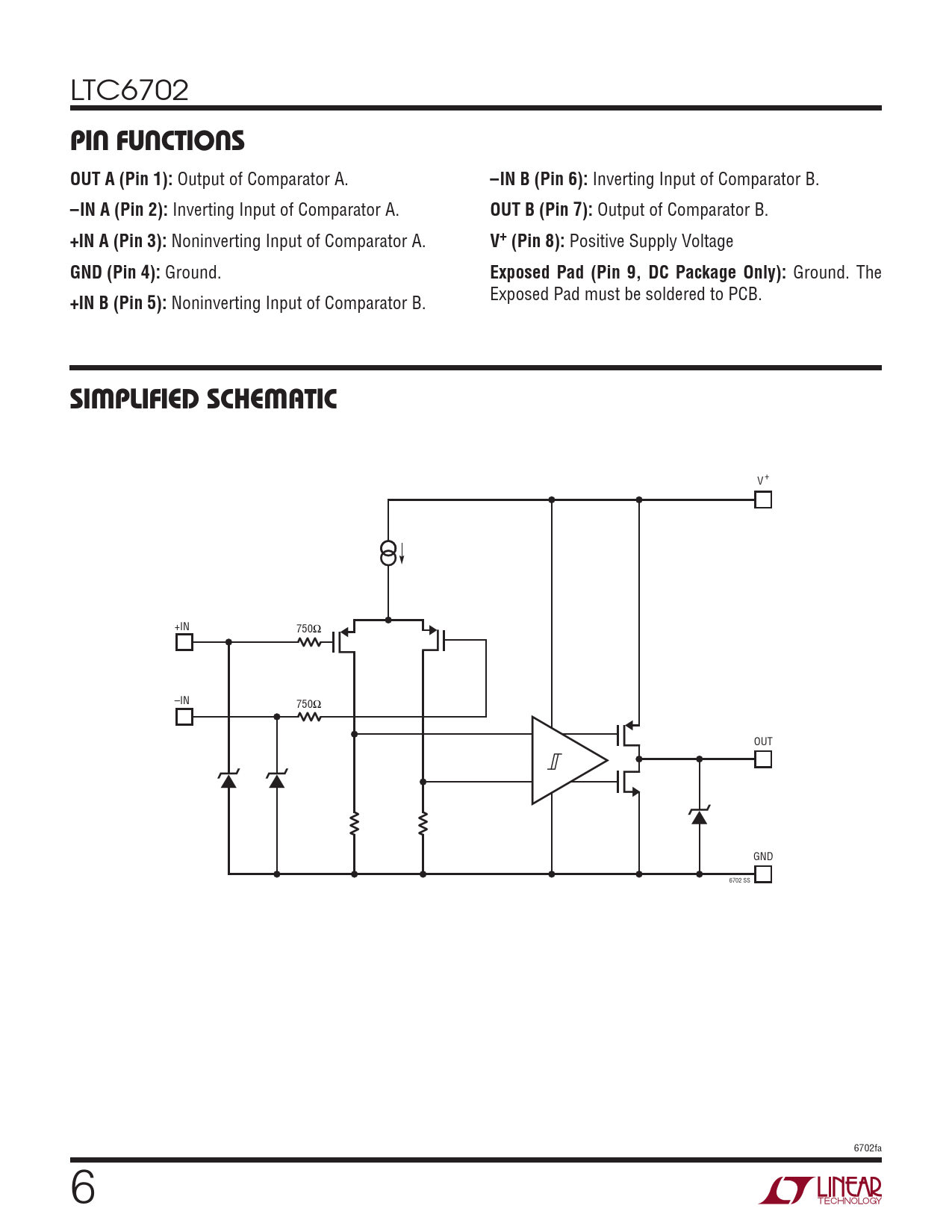

LTC6702
PIN FUNCTIONS OUT A (Pin 1):
Output of Comparator A.
–IN B (Pin 6):
Inverting Input of Comparator B.
–IN A (Pin 2):
Inverting Input of Comparator A.
OUT B (Pin 7):
Output of Comparator B.
+IN A (Pin 3):
Noninverting Input of Comparator A.
V+ (Pin 8):
Positive Supply Voltage
GND (Pin 4):
Ground.
Exposed Pad (Pin 9, DC Package Only):
Ground. The Exposed Pad must be soldered to PCB.
+IN B (Pin 5):
Noninverting Input of Comparator B.
SIMPLIFIED SCHEMATIC
V + +IN 750Ω –IN 750Ω OUT GND 6702 SS 6702fa 6
