Datasheet LTC6702 (Analog Devices) - 9
| 制造商 | Analog Devices |
| 描述 | Tiny Micropower, Low Voltage Dual Comparators |
| 页数 / 页 | 12 / 9 — TYPICAL APPLICATIONS. High to Low Level Translator. Micropower Battery … |
| 文件格式/大小 | PDF / 369 Kb |
| 文件语言 | 英语 |

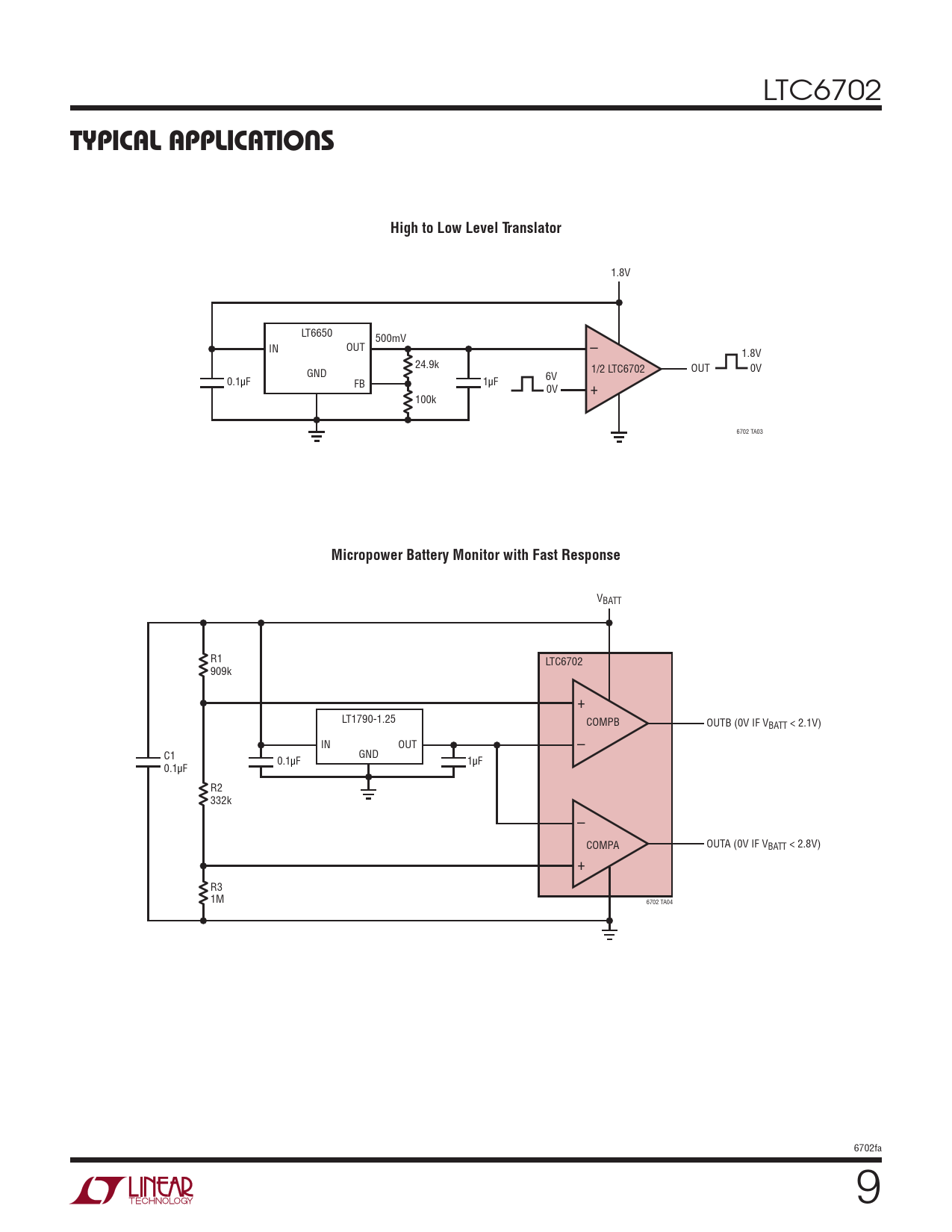

TYPICAL APPLICATIONS. High to Low Level Translator. Micropower Battery Monitor with Fast Response
该数据表的模型线
- LTC6702CDC#PBF LTC6702CDC#TRMPBF LTC6702CDC#TRMPBF LTC6702CDC#TRPBF LTC6702CDC#TRPBF LTC6702CTS8#PBF LTC6702CTS8#TRMPBF LTC6702CTS8#TRMPBF LTC6702CTS8#TRPBF LTC6702CTS8#TRPBF LTC6702HDC#PBF LTC6702HDC#TRMPBF LTC6702HDC#TRMPBF LTC6702HDC#TRPBF LTC6702HDC#TRPBF LTC6702HTS8#PBF LTC6702HTS8#TRMPBF LTC6702HTS8#TRMPBF LTC6702HTS8#TRPBF LTC6702HTS8#TRPBF LTC6702IDC#PBF LTC6702IDC#TRMPBF LTC6702IDC#TRMPBF LTC6702IDC#TRPBF LTC6702IDC#TRPBF LTC6702ITS8#PBF LTC6702ITS8#TRMPBF LTC6702ITS8#TRMPBF LTC6702ITS8#TRPBF LTC6702ITS8#TRPBF
文件文字版本
LTC6702
TYPICAL APPLICATIONS High to Low Level Translator
1.8V LT6650 500mV IN OUT – 1.8V 24.9k 1/2 LTC6702 OUT 0V GND 6V 0.1μF FB 1μF 0V + 100k 6702 TA03
Micropower Battery Monitor with Fast Response
VBATT R1 LTC6702 909k + LT1790-1.25 COMPB OUTB (0V IF VBATT < 2.1V) IN OUT – C1 GND 0.1μF 1μF 0.1μF R2 332k – COMPA OUTA (0V IF VBATT < 2.8V) + R3 1M 6702 TA04 6702fa 9
