Datasheet AD8055, AD8056 (Analog Devices) - 4
| 制造商 | Analog Devices |
| 描述 | Low Cost, Dual, 300 MHz Voltage Feedback Amplifier |
| 页数 / 页 | 16 / 4 — AD8055/AD8056. AD8055A/AD8056A. Parameter. Conditions. Min. Typ. Max. Unit |
| 修订版 | J |
| 文件格式/大小 | PDF / 264 Kb |
| 文件语言 | 英语 |
AD8055/AD8056. AD8055A/AD8056A. Parameter. Conditions. Min. Typ. Max. Unit
该数据表的模型线
文件文字版本
link to page 5

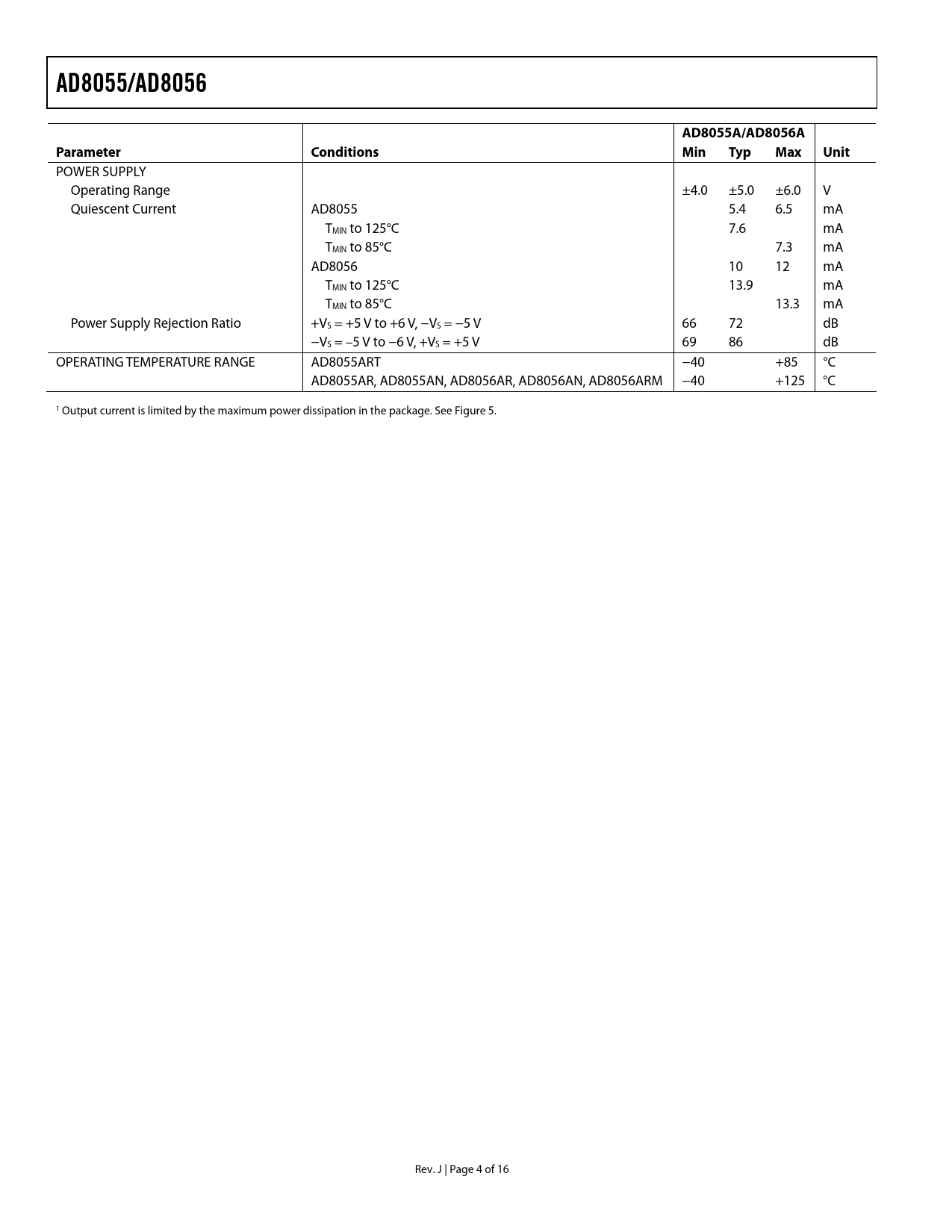

AD8055/AD8056 AD8055A/AD8056A Parameter Conditions Min Typ Max Unit
POWER SUPPLY Operating Range ±4.0 ±5.0 ±6.0 V Quiescent Current AD8055 5.4 6.5 mA TMIN to 125°C 7.6 mA TMIN to 85°C 7.3 mA AD8056 10 12 mA TMIN to 125°C 13.9 mA TMIN to 85°C 13.3 mA Power Supply Rejection Ratio +VS = +5 V to +6 V, −VS = −5 V 66 72 dB −VS = –5 V to −6 V, +VS = +5 V 69 86 dB OPERATING TEMPERATURE RANGE AD8055ART −40 +85 °C AD8055AR, AD8055AN, AD8056AR, AD8056AN, AD8056ARM −40 +125 °C 1 Output current is limited by the maximum power dissipation in the package. See Figure 5. Rev. J | Page 4 of 16 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION CONNECTION DIAGRAMS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS MAXIMUM POWER DISSIPATION ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS APPLICATIONS FOUR-LINE VIDEO DRIVER SINGLE-ENDED-TO-DIFFERENTIAL LINE DRIVER LOW NOISE, LOW POWER PREAMP POWER DISSIPATION LIMITS RESISTOR SELECTION DRIVING CAPACITIVE LOADS OUTLINE DIMENSIONS ORDERING GUIDE
