Datasheet AD8055, AD8056 (Analog Devices) - 5
| 制造商 | Analog Devices |
| 描述 | Low Cost, Dual, 300 MHz Voltage Feedback Amplifier |
| 页数 / 页 | 16 / 5 — AD8055/AD8056. ABSOLUTE MAXIMUM RATINGS. Table 2. MAXIMUM POWER … |
| 修订版 | J |
| 文件格式/大小 | PDF / 264 Kb |
| 文件语言 | 英语 |

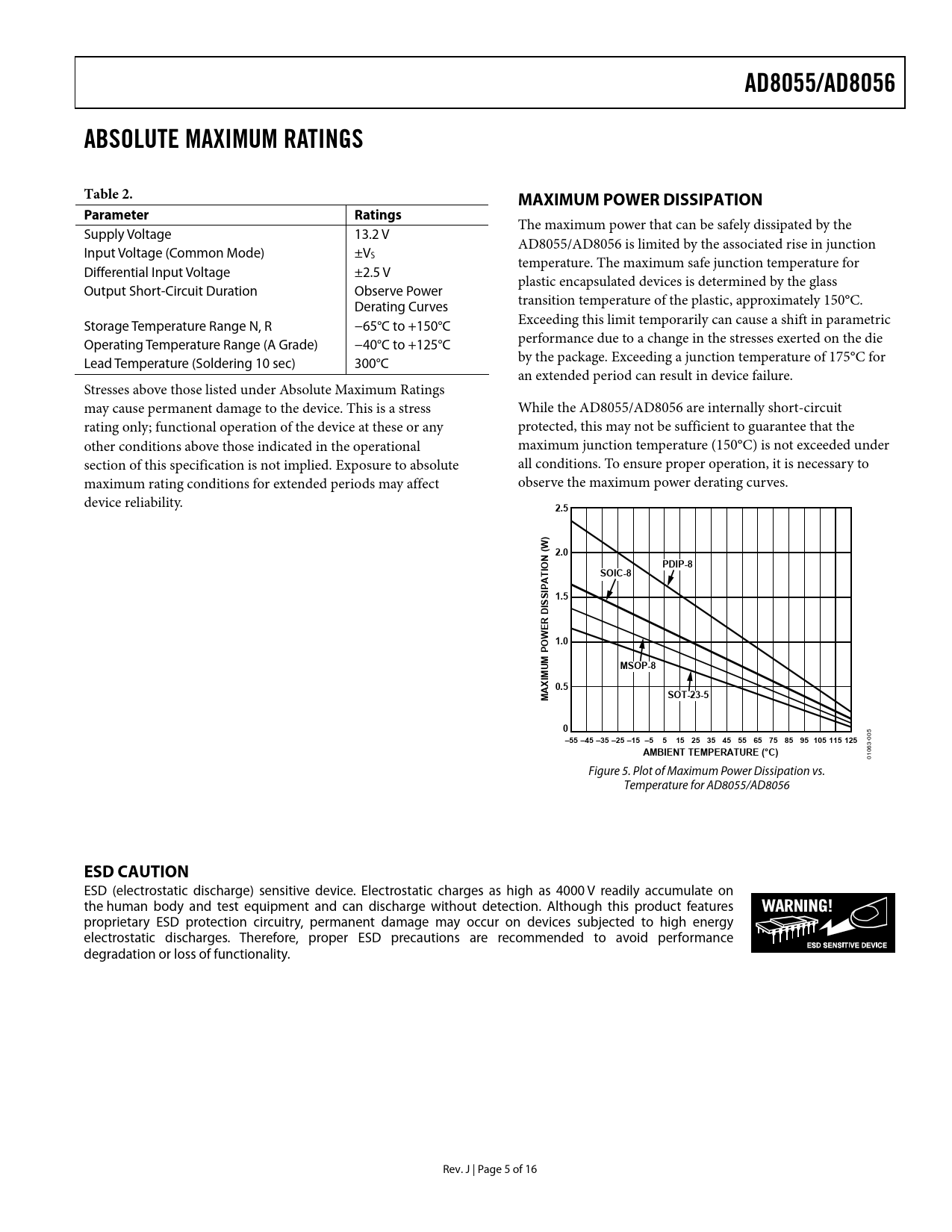

AD8055/AD8056. ABSOLUTE MAXIMUM RATINGS. Table 2. MAXIMUM POWER DISSIPATION. Parameter Ratings. 2.5. ) (W 2.0. PDIP-8. SOIC-8
该数据表的模型线
文件文字版本
AD8055/AD8056 ABSOLUTE MAXIMUM RATINGS Table 2. MAXIMUM POWER DISSIPATION Parameter Ratings
The maximum power that can be safely dissipated by the Supply Voltage 13.2 V AD8055/AD8056 is limited by the associated rise in junction Input Voltage (Common Mode) ±VS temperature. The maximum safe junction temperature for Differential Input Voltage ±2.5 V plastic encapsulated devices is determined by the glass Output Short-Circuit Duration Observe Power transition temperature of the plastic, approximately 150°C. Derating Curves Exceeding this limit temporarily can cause a shift in parametric Storage Temperature Range N, R −65°C to +150°C performance due to a change in the stresses exerted on the die Operating Temperature Range (A Grade) −40°C to +125°C by the package. Exceeding a junction temperature of 175°C for Lead Temperature (Soldering 10 sec) 300°C an extended period can result in device failure. Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress While the AD8055/AD8056 are internally short-circuit rating only; functional operation of the device at these or any protected, this may not be sufficient to guarantee that the other conditions above those indicated in the operational maximum junction temperature (150°C) is not exceeded under section of this specification is not implied. Exposure to absolute all conditions. To ensure proper operation, it is necessary to maximum rating conditions for extended periods may affect observe the maximum power derating curves. device reliability.
2.5 ) (W 2.0 N PDIP-8 IO SOIC-8 AT IP S 1.5 S R DI E W 1.0 O P UM MSOP-8 IM 0.5 AX SOT-23-5 M 0
05
–55 –45 –35 –25 –15 –5 5 15 25 35 45 55 65 75 85 95 105 115 125
0 3-
AMBIENT TEMPERATURE (°C)
06 01 Figure 5. Plot of Maximum Power Dissipation vs. Temperature for AD8055/AD8056
ESD CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily accumulate on the human body and test equipment and can discharge without detection. Although this product features proprietary ESD protection circuitry, permanent damage may occur on devices subjected to high energy electrostatic discharges. Therefore, proper ESD precautions are recommended to avoid performance degradation or loss of functionality. Rev. J | Page 5 of 16 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION CONNECTION DIAGRAMS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS MAXIMUM POWER DISSIPATION ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS APPLICATIONS FOUR-LINE VIDEO DRIVER SINGLE-ENDED-TO-DIFFERENTIAL LINE DRIVER LOW NOISE, LOW POWER PREAMP POWER DISSIPATION LIMITS RESISTOR SELECTION DRIVING CAPACITIVE LOADS OUTLINE DIMENSIONS ORDERING GUIDE
