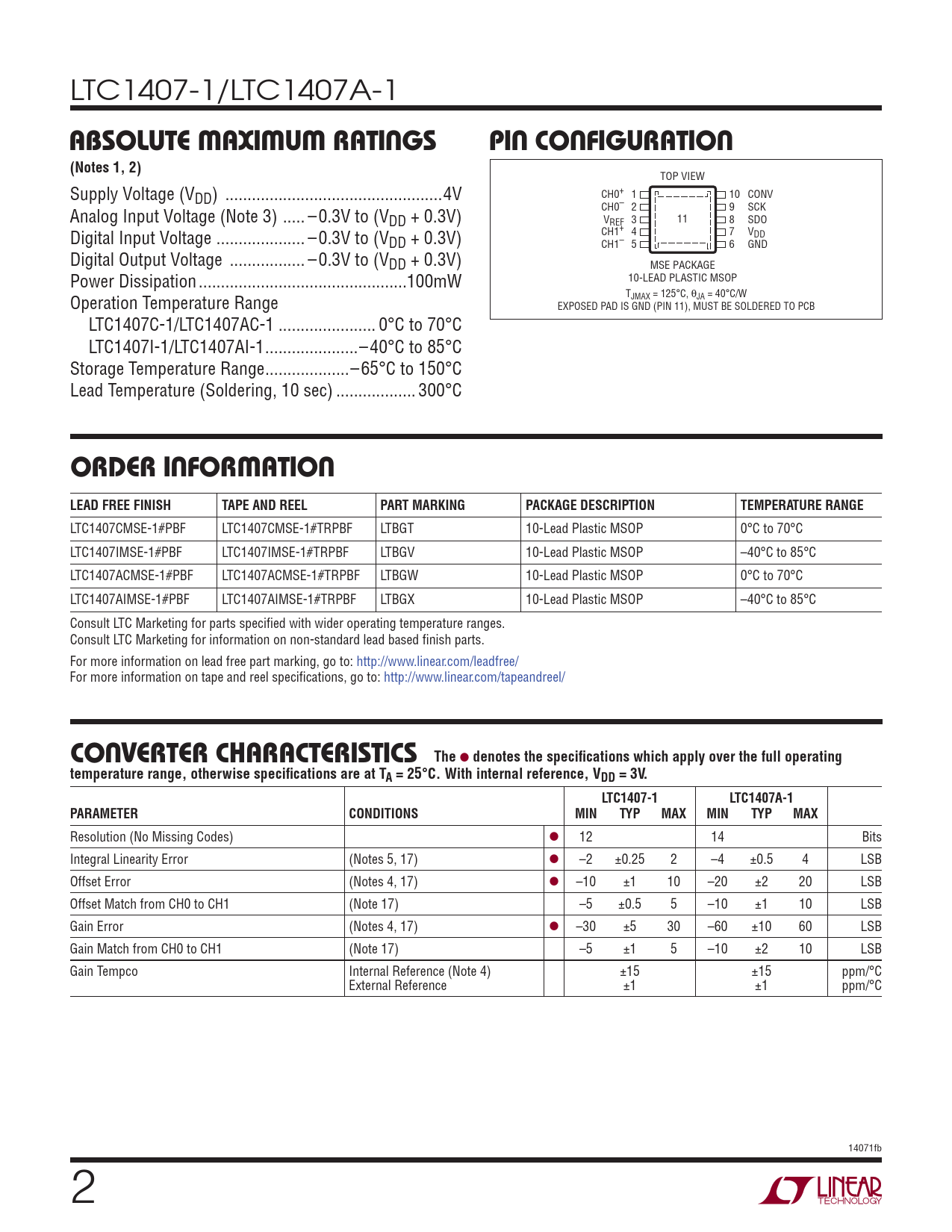

LTC1407-1/LTC1407A-1
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Notes 1, 2)
TOP VIEW Supply Voltage (VDD) ...4V CH0+ 1 10 CONV CH0– 2 9 SCK Analog Input Voltage (Note 3) ... –0.3V to (VDD + 0.3V) V 3 REF 11 8 SDO Digital Input Voltage .. –0.3V to (V CH1+ 4 7 VDD DD + 0.3V) CH1– 5 6 GND Digital Output Voltage ... –0.3V to (VDD + 0.3V) MSE PACKAGE Power Dissipation ...100mW 10-LEAD PLASTIC MSOP T Operation Temperature Range JMAX = 125°C, θJA = 40°C/W EXPOSED PAD IS GND (PIN 11), MUST BE SOLDERED TO PCB LTC1407C-1/LTC1407AC-1 .. 0°C to 70°C LTC1407I-1/LTC1407AI-1 ...–40°C to 85°C Storage Temperature Range ...–65°C to 150°C Lead Temperature (Soldering, 10 sec) .. 300°C
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC1407CMSE-1#PBF LTC1407CMSE-1#TRPBF LTBGT 10-Lead Plastic MSOP 0°C to 70°C LTC1407IMSE-1#PBF LTC1407IMSE-1#TRPBF LTBGV 10-Lead Plastic MSOP –40°C to 85°C LTC1407ACMSE-1#PBF LTC1407ACMSE-1#TRPBF LTBGW 10-Lead Plastic MSOP 0°C to 70°C LTC1407AIMSE-1#PBF LTC1407AIMSE-1#TRPBF LTBGX 10-Lead Plastic MSOP –40°C to 85°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. Consult LTC Marketing for information on non-standard lead based fi nish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/
CONVERTER CHARACTERISTICS The
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. With internal reference, VDD = 3V. LTC1407-1 LTC1407A-1 PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX
Resolution (No Missing Codes) l 12 14 Bits Integral Linearity Error (Notes 5, 17) l –2 ±0.25 2 –4 ±0.5 4 LSB Offset Error (Notes 4, 17) l –10 ±1 10 –20 ±2 20 LSB Offset Match from CH0 to CH1 (Note 17) –5 ±0.5 5 –10 ±1 10 LSB Gain Error (Notes 4, 17) l –30 ±5 30 –60 ±10 60 LSB Gain Match from CH0 to CH1 (Note 17) –5 ±1 5 –10 ±2 10 LSB Gain Tempco Internal Reference (Note 4) ±15 ±15 ppm/°C External Reference ±1 ±1 ppm/°C 14071fb 2
