Datasheet LTC1407-1, LTC1407A-1 (Analog Devices) - 3
| 制造商 | Analog Devices |
| 描述 | Serial 12-Bit/14-Bit, 3Msps Simultaneous Sampling ADCs with Shutdown |
| 页数 / 页 | 26 / 3 — The. ANALOG INPUT. denotes the specifi cations which apply over the full … |
| 文件格式/大小 | PDF / 520 Kb |
| 文件语言 | 英语 |
The. ANALOG INPUT. denotes the specifi cations which apply over the full operating temperature range,
该数据表的模型线
文件文字版本

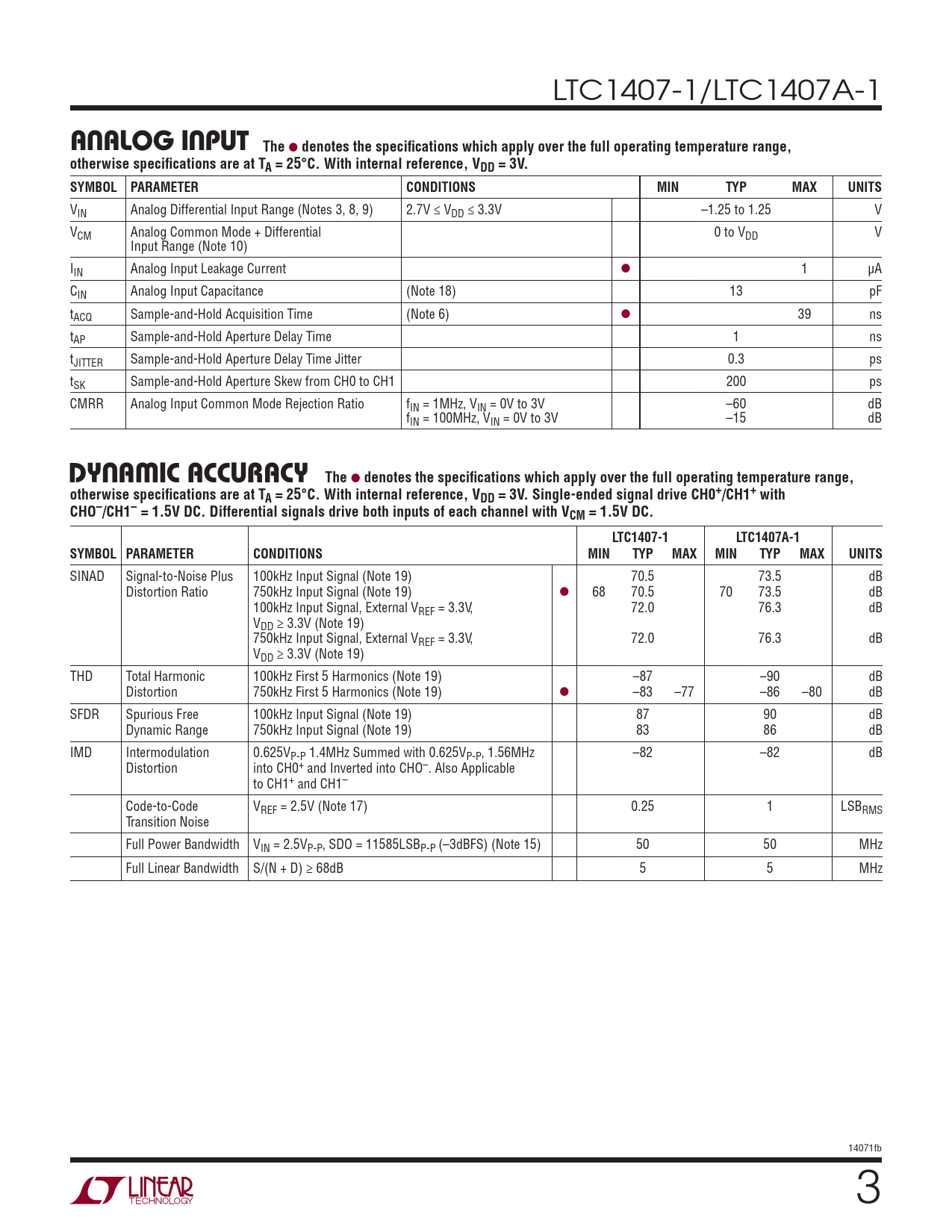

LTC1407-1/LTC1407A-1
The ANALOG INPUT
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. With internal reference, VDD = 3V. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VIN Analog Differential Input Range (Notes 3, 8, 9) 2.7V ≤ VDD ≤ 3.3V –1.25 to 1.25 V VCM Analog Common Mode + Differential 0 to VDD V Input Range (Note 10) IIN Analog Input Leakage Current l 1 μA CIN Analog Input Capacitance (Note 18) 13 pF tACQ Sample-and-Hold Acquisition Time (Note 6) l 39 ns tAP Sample-and-Hold Aperture Delay Time 1 ns tJITTER Sample-and-Hold Aperture Delay Time Jitter 0.3 ps tSK Sample-and-Hold Aperture Skew from CH0 to CH1 200 ps CMRR Analog Input Common Mode Rejection Ratio fIN = 1MHz, VIN = 0V to 3V –60 dB fIN = 100MHz, VIN = 0V to 3V –15 dB
DYNAMIC ACCURACY The
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. With internal reference, VDD = 3V. Single-ended signal drive CH0+/CH1+ with CHO–/CH1– = 1.5V DC. Differential signals drive both inputs of each channel with VCM = 1.5V DC. LTC1407-1 LTC1407A-1 SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
SINAD Signal-to-Noise Plus 100kHz Input Signal (Note 19) 70.5 73.5 dB Distortion Ratio 750kHz Input Signal (Note 19) l 68 70.5 70 73.5 dB 100kHz Input Signal, External VREF = 3.3V, 72.0 76.3 dB VDD ≥ 3.3V (Note 19) 750kHz Input Signal, External VREF = 3.3V, 72.0 76.3 dB VDD ≥ 3.3V (Note 19) THD Total Harmonic 100kHz First 5 Harmonics (Note 19) –87 –90 dB Distortion 750kHz First 5 Harmonics (Note 19) l –83 –77 –86 –80 dB SFDR Spurious Free 100kHz Input Signal (Note 19) 87 90 dB Dynamic Range 750kHz Input Signal (Note 19) 83 86 dB IMD Intermodulation 0.625VP-P 1.4MHz Summed with 0.625VP-P, 1.56MHz –82 –82 dB Distortion into CH0+ and Inverted into CHO–. Also Applicable to CH1+ and CH1– Code-to-Code VREF = 2.5V (Note 17) 0.25 1 LSBRMS Transition Noise Full Power Bandwidth VIN = 2.5VP-P, SDO = 11585LSBP-P (–3dBFS) (Note 15) 50 50 MHz Full Linear Bandwidth S/(N + D) ≥ 68dB 5 5 MHz 14071fb 3
The ANALOG INPUT
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. With internal reference, VDD = 3V. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VIN Analog Differential Input Range (Notes 3, 8, 9) 2.7V ≤ VDD ≤ 3.3V –1.25 to 1.25 V VCM Analog Common Mode + Differential 0 to VDD V Input Range (Note 10) IIN Analog Input Leakage Current l 1 μA CIN Analog Input Capacitance (Note 18) 13 pF tACQ Sample-and-Hold Acquisition Time (Note 6) l 39 ns tAP Sample-and-Hold Aperture Delay Time 1 ns tJITTER Sample-and-Hold Aperture Delay Time Jitter 0.3 ps tSK Sample-and-Hold Aperture Skew from CH0 to CH1 200 ps CMRR Analog Input Common Mode Rejection Ratio fIN = 1MHz, VIN = 0V to 3V –60 dB fIN = 100MHz, VIN = 0V to 3V –15 dB
DYNAMIC ACCURACY The
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. With internal reference, VDD = 3V. Single-ended signal drive CH0+/CH1+ with CHO–/CH1– = 1.5V DC. Differential signals drive both inputs of each channel with VCM = 1.5V DC. LTC1407-1 LTC1407A-1 SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
SINAD Signal-to-Noise Plus 100kHz Input Signal (Note 19) 70.5 73.5 dB Distortion Ratio 750kHz Input Signal (Note 19) l 68 70.5 70 73.5 dB 100kHz Input Signal, External VREF = 3.3V, 72.0 76.3 dB VDD ≥ 3.3V (Note 19) 750kHz Input Signal, External VREF = 3.3V, 72.0 76.3 dB VDD ≥ 3.3V (Note 19) THD Total Harmonic 100kHz First 5 Harmonics (Note 19) –87 –90 dB Distortion 750kHz First 5 Harmonics (Note 19) l –83 –77 –86 –80 dB SFDR Spurious Free 100kHz Input Signal (Note 19) 87 90 dB Dynamic Range 750kHz Input Signal (Note 19) 83 86 dB IMD Intermodulation 0.625VP-P 1.4MHz Summed with 0.625VP-P, 1.56MHz –82 –82 dB Distortion into CH0+ and Inverted into CHO–. Also Applicable to CH1+ and CH1– Code-to-Code VREF = 2.5V (Note 17) 0.25 1 LSBRMS Transition Noise Full Power Bandwidth VIN = 2.5VP-P, SDO = 11585LSBP-P (–3dBFS) (Note 15) 50 50 MHz Full Linear Bandwidth S/(N + D) ≥ 68dB 5 5 MHz 14071fb 3
