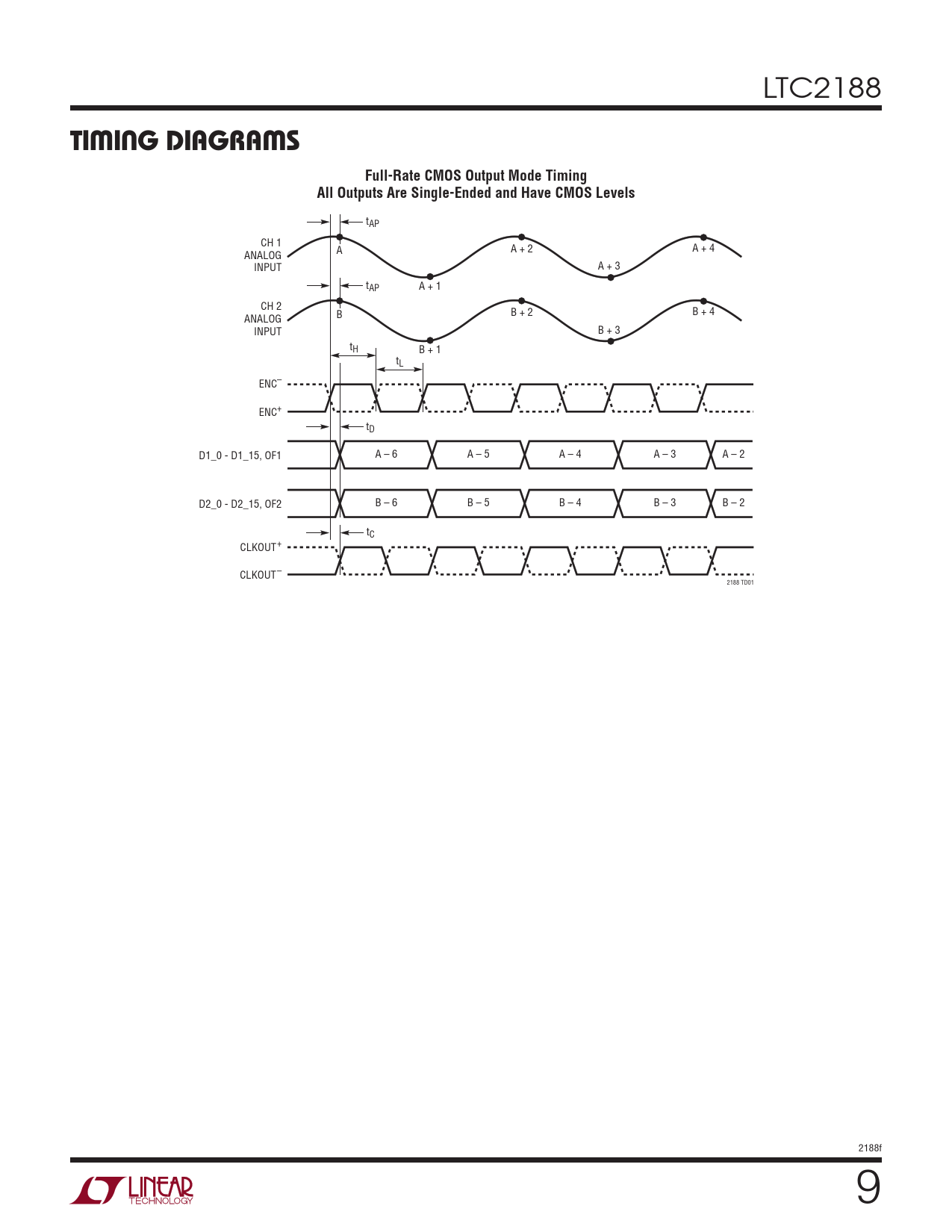

TiMing DiagraMs. Full-Rate CMOS Output Mode Timing. All Outputs Are Single-Ended and Have CMOS Levels
该数据表的模型线
文件文字版本
LTC2188
TiMing DiagraMs Full-Rate CMOS Output Mode Timing All Outputs Are Single-Ended and Have CMOS Levels
tAP CH 1 A A + 2 A + 4 ANALOG INPUT A + 3 tAP A + 1 CH 2 B B + 2 B + 4 ANALOG INPUT B + 3 tH B + 1 tL ENC– ENC+ tD D1_0 - D1_15, OF1 A – 6 A – 5 A – 4 A – 3 A – 2 D2_0 - D2_15, OF2 B – 6 B – 5 B – 4 B – 3 B – 2 tC CLKOUT+ CLKOUT– 2188 TD01 2188f 9 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configurations Order Information Converter Characteristics Analog Input Dynamic Accuracy Internal Reference Characteristics Digital Inputs and Outputs Power Requirements Timing Characteristics Timing Diagrams Typical Performance Characteristics Pin Functions Functional Block Diagram Applications Information Typical Applications Package Description Typical Application Related Parts
