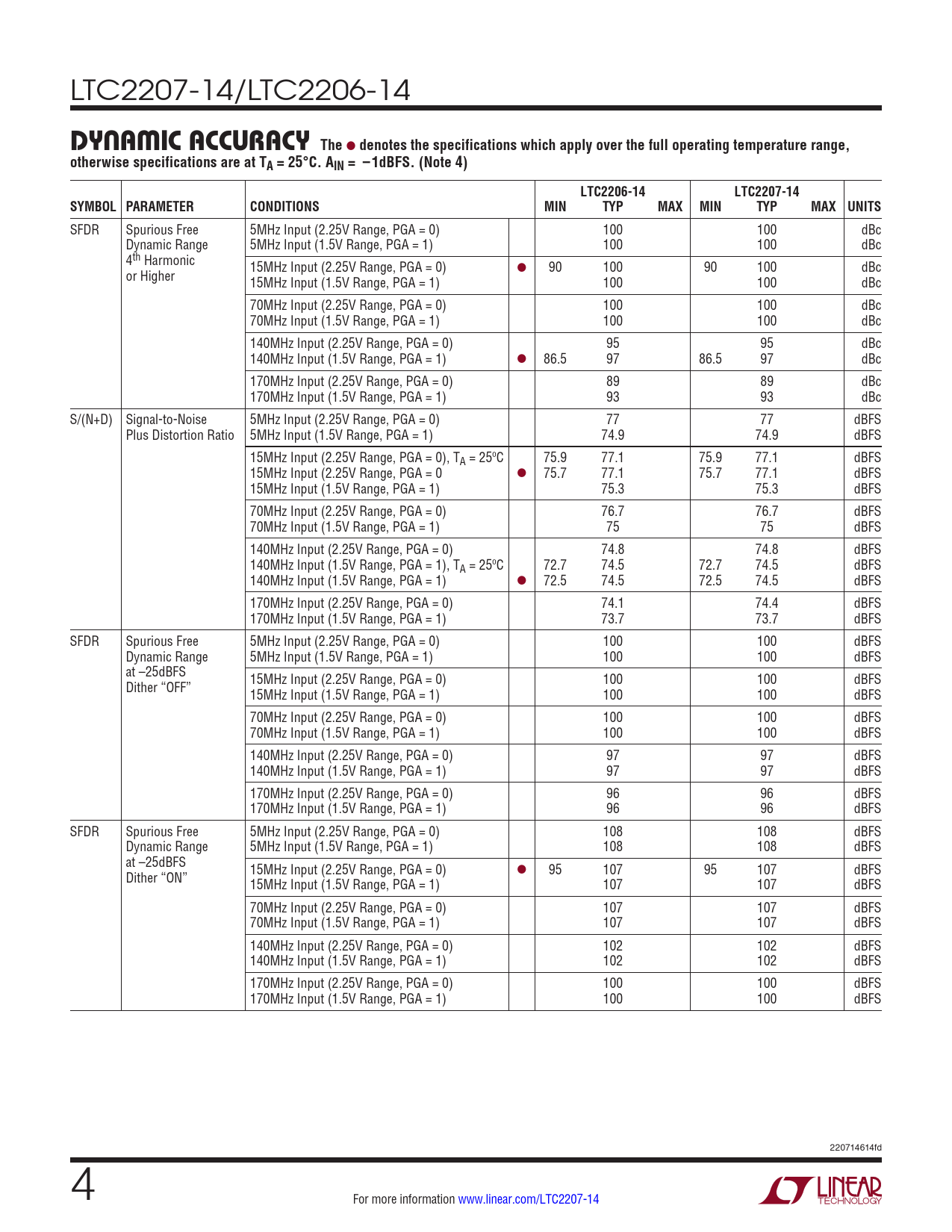

LTC2207-14/LTC2206-14
DynaMic accuracy The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. AIN = –1dBFS. (Note 4) LTC2206-14 LTC2207-14 SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
SFDR Spurious Free 5MHz Input (2.25V Range, PGA = 0) 100 100 dBc Dynamic Range 5MHz Input (1.5V Range, PGA = 1) 100 100 dBc 4th Harmonic or Higher 15MHz Input (2.25V Range, PGA = 0) l 90 100 90 100 dBc 15MHz Input (1.5V Range, PGA = 1) 100 100 dBc 70MHz Input (2.25V Range, PGA = 0) 100 100 dBc 70MHz Input (1.5V Range, PGA = 1) 100 100 dBc 140MHz Input (2.25V Range, PGA = 0) 95 95 dBc 140MHz Input (1.5V Range, PGA = 1) l 86.5 97 86.5 97 dBc 170MHz Input (2.25V Range, PGA = 0) 89 89 dBc 170MHz Input (1.5V Range, PGA = 1) 93 93 dBc S/(N+D) Signal-to-Noise 5MHz Input (2.25V Range, PGA = 0) 77 77 dBFS Plus Distortion Ratio 5MHz Input (1.5V Range, PGA = 1) 74.9 74.9 dBFS 15MHz Input (2.25V Range, PGA = 0), TA = 25ºC 75.9 77.1 75.9 77.1 dBFS 15MHz Input (2.25V Range, PGA = 0 l 75.7 77.1 75.7 77.1 dBFS 15MHz Input (1.5V Range, PGA = 1) 75.3 75.3 dBFS 70MHz Input (2.25V Range, PGA = 0) 76.7 76.7 dBFS 70MHz Input (1.5V Range, PGA = 1) 75 75 dBFS 140MHz Input (2.25V Range, PGA = 0) 74.8 74.8 dBFS 140MHz Input (1.5V Range, PGA = 1), TA = 25ºC 72.7 74.5 72.7 74.5 dBFS 140MHz Input (1.5V Range, PGA = 1) l 72.5 74.5 72.5 74.5 dBFS 170MHz Input (2.25V Range, PGA = 0) 74.1 74.4 dBFS 170MHz Input (1.5V Range, PGA = 1) 73.7 73.7 dBFS SFDR Spurious Free 5MHz Input (2.25V Range, PGA = 0) 100 100 dBFS Dynamic Range 5MHz Input (1.5V Range, PGA = 1) 100 100 dBFS at –25dBFS Dither “OFF” 15MHz Input (2.25V Range, PGA = 0) 100 100 dBFS 15MHz Input (1.5V Range, PGA = 1) 100 100 dBFS 70MHz Input (2.25V Range, PGA = 0) 100 100 dBFS 70MHz Input (1.5V Range, PGA = 1) 100 100 dBFS 140MHz Input (2.25V Range, PGA = 0) 97 97 dBFS 140MHz Input (1.5V Range, PGA = 1) 97 97 dBFS 170MHz Input (2.25V Range, PGA = 0) 96 96 dBFS 170MHz Input (1.5V Range, PGA = 1) 96 96 dBFS SFDR Spurious Free 5MHz Input (2.25V Range, PGA = 0) 108 108 dBFS Dynamic Range 5MHz Input (1.5V Range, PGA = 1) 108 108 dBFS at –25dBFS Dither “ON” 15MHz Input (2.25V Range, PGA = 0) l 95 107 95 107 dBFS 15MHz Input (1.5V Range, PGA = 1) 107 107 dBFS 70MHz Input (2.25V Range, PGA = 0) 107 107 dBFS 70MHz Input (1.5V Range, PGA = 1) 107 107 dBFS 140MHz Input (2.25V Range, PGA = 0) 102 102 dBFS 140MHz Input (1.5V Range, PGA = 1) 102 102 dBFS 170MHz Input (2.25V Range, PGA = 0) 100 100 dBFS 170MHz Input (1.5V Range, PGA = 1) 100 100 dBFS 220714614fd 4 For more information www.linear.com/LTC2207-14 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Converter Characteristics Pin Configuration Analog Input Dynamic Accuracy Common Mode Bias Characteristics Digital Inputs and Digital Outputs Power Requirements Timing Characteristics Timing Diagram Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Package Description Revision History Related Parts
