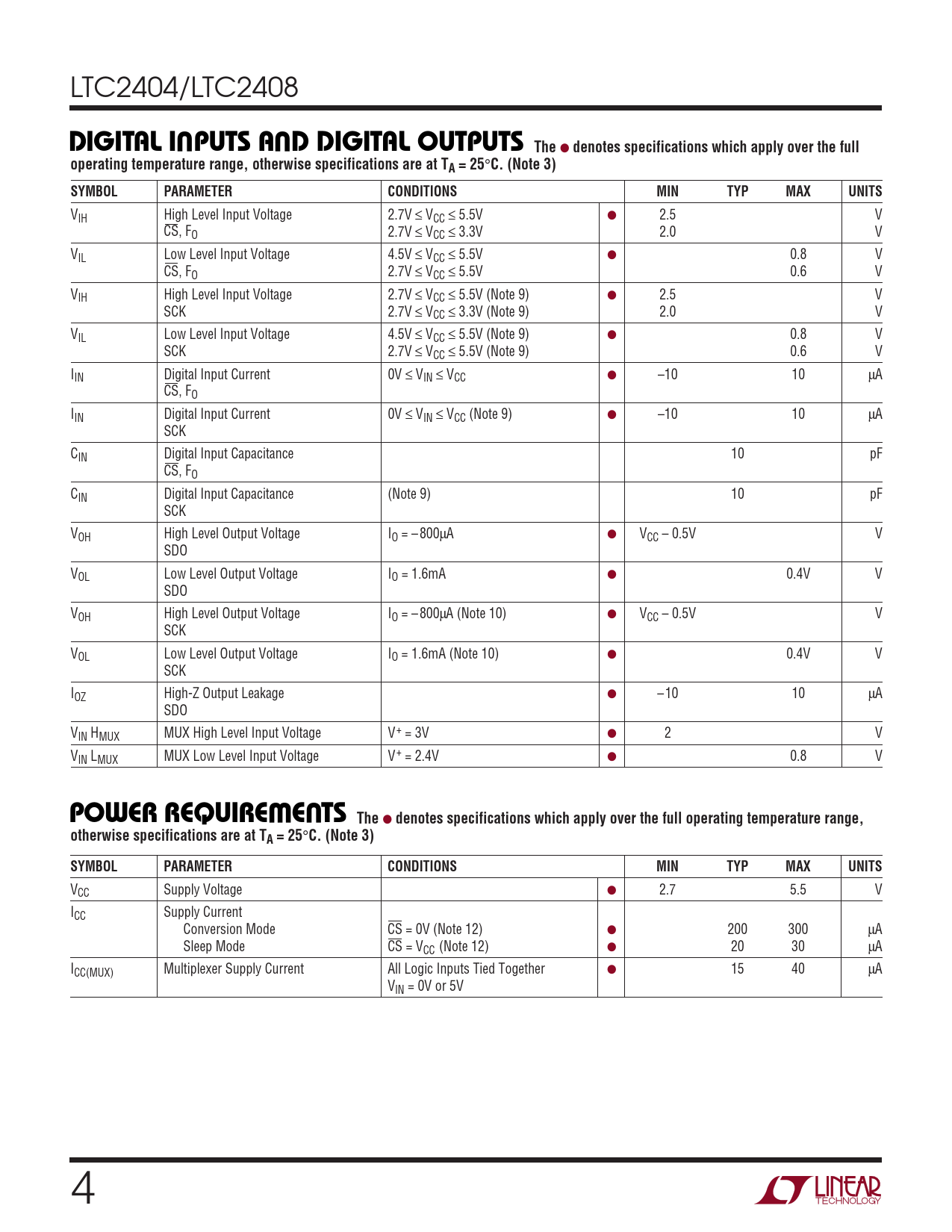

LTC2404/LTC2408
U U DIGITAL I PUTS A D DIGITAL OUTPUTS The
●
denotes specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. (Note 3) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VIH High Level Input Voltage 2.7V ≤ VCC ≤ 5.5V ● 2.5 V CS, FO 2.7V ≤ VCC ≤ 3.3V 2.0 V VIL Low Level Input Voltage 4.5V ≤ VCC ≤ 5.5V ● 0.8 V CS, FO 2.7V ≤ VCC ≤ 5.5V 0.6 V VIH High Level Input Voltage 2.7V ≤ VCC ≤ 5.5V (Note 9) ● 2.5 V SCK 2.7V ≤ VCC ≤ 3.3V (Note 9) 2.0 V VIL Low Level Input Voltage 4.5V ≤ VCC ≤ 5.5V (Note 9) ● 0.8 V SCK 2.7V ≤ VCC ≤ 5.5V (Note 9) 0.6 V IIN Digital Input Current 0V ≤ VIN ≤ VCC ● –10 10 µA CS, FO IIN Digital Input Current 0V ≤ VIN ≤ VCC (Note 9) ● –10 10 µA SCK CIN Digital Input Capacitance 10 pF CS, FO CIN Digital Input Capacitance (Note 9) 10 pF SCK VOH High Level Output Voltage IO = – 800µA ● VCC – 0.5V V SDO VOL Low Level Output Voltage IO = 1.6mA ● 0.4V V SDO VOH High Level Output Voltage IO = – 800µA (Note 10) ● VCC – 0.5V V SCK VOL Low Level Output Voltage IO = 1.6mA (Note 10) ● 0.4V V SCK IOZ High-Z Output Leakage ● –10 10 µA SDO VIN HMUX MUX High Level Input Voltage V+ = 3V ● 2 V VIN LMUX MUX Low Level Input Voltage V+ = 2.4V ● 0.8 V
W U POWER REQUIRE E TS The
●
denotes specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. (Note 3) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VCC Supply Voltage ● 2.7 5.5 V ICC Supply Current Conversion Mode CS = 0V (Note 12) ● 200 300 µA Sleep Mode CS = VCC (Note 12) ● 20 30 µA ICC(MUX) Multiplexer Supply Current All Logic Inputs Tied Together ● 15 40 µA VIN = 0V or 5V 4
U U DIGITAL I PUTS A D DIGITAL OUTPUTS The
●
denotes specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. (Note 3) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VIH High Level Input Voltage 2.7V ≤ VCC ≤ 5.5V ● 2.5 V CS, FO 2.7V ≤ VCC ≤ 3.3V 2.0 V VIL Low Level Input Voltage 4.5V ≤ VCC ≤ 5.5V ● 0.8 V CS, FO 2.7V ≤ VCC ≤ 5.5V 0.6 V VIH High Level Input Voltage 2.7V ≤ VCC ≤ 5.5V (Note 9) ● 2.5 V SCK 2.7V ≤ VCC ≤ 3.3V (Note 9) 2.0 V VIL Low Level Input Voltage 4.5V ≤ VCC ≤ 5.5V (Note 9) ● 0.8 V SCK 2.7V ≤ VCC ≤ 5.5V (Note 9) 0.6 V IIN Digital Input Current 0V ≤ VIN ≤ VCC ● –10 10 µA CS, FO IIN Digital Input Current 0V ≤ VIN ≤ VCC (Note 9) ● –10 10 µA SCK CIN Digital Input Capacitance 10 pF CS, FO CIN Digital Input Capacitance (Note 9) 10 pF SCK VOH High Level Output Voltage IO = – 800µA ● VCC – 0.5V V SDO VOL Low Level Output Voltage IO = 1.6mA ● 0.4V V SDO VOH High Level Output Voltage IO = – 800µA (Note 10) ● VCC – 0.5V V SCK VOL Low Level Output Voltage IO = 1.6mA (Note 10) ● 0.4V V SCK IOZ High-Z Output Leakage ● –10 10 µA SDO VIN HMUX MUX High Level Input Voltage V+ = 3V ● 2 V VIN LMUX MUX Low Level Input Voltage V+ = 2.4V ● 0.8 V
W U POWER REQUIRE E TS The
●
denotes specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. (Note 3) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VCC Supply Voltage ● 2.7 5.5 V ICC Supply Current Conversion Mode CS = 0V (Note 12) ● 200 300 µA Sleep Mode CS = VCC (Note 12) ● 20 30 µA ICC(MUX) Multiplexer Supply Current All Logic Inputs Tied Together ● 15 40 µA VIN = 0V or 5V 4
