Datasheet LTC4315 (Analog Devices) - 4
| 制造商 | Analog Devices |
| 描述 | 2-Wire Bus Buffer with High Noise Margin |
| 页数 / 页 | 20 / 4 — ELECTRICAL CHARACTERISTICS. The. denotes the specifications which apply … |
| 文件格式/大小 | PDF / 282 Kb |
| 文件语言 | 英语 |

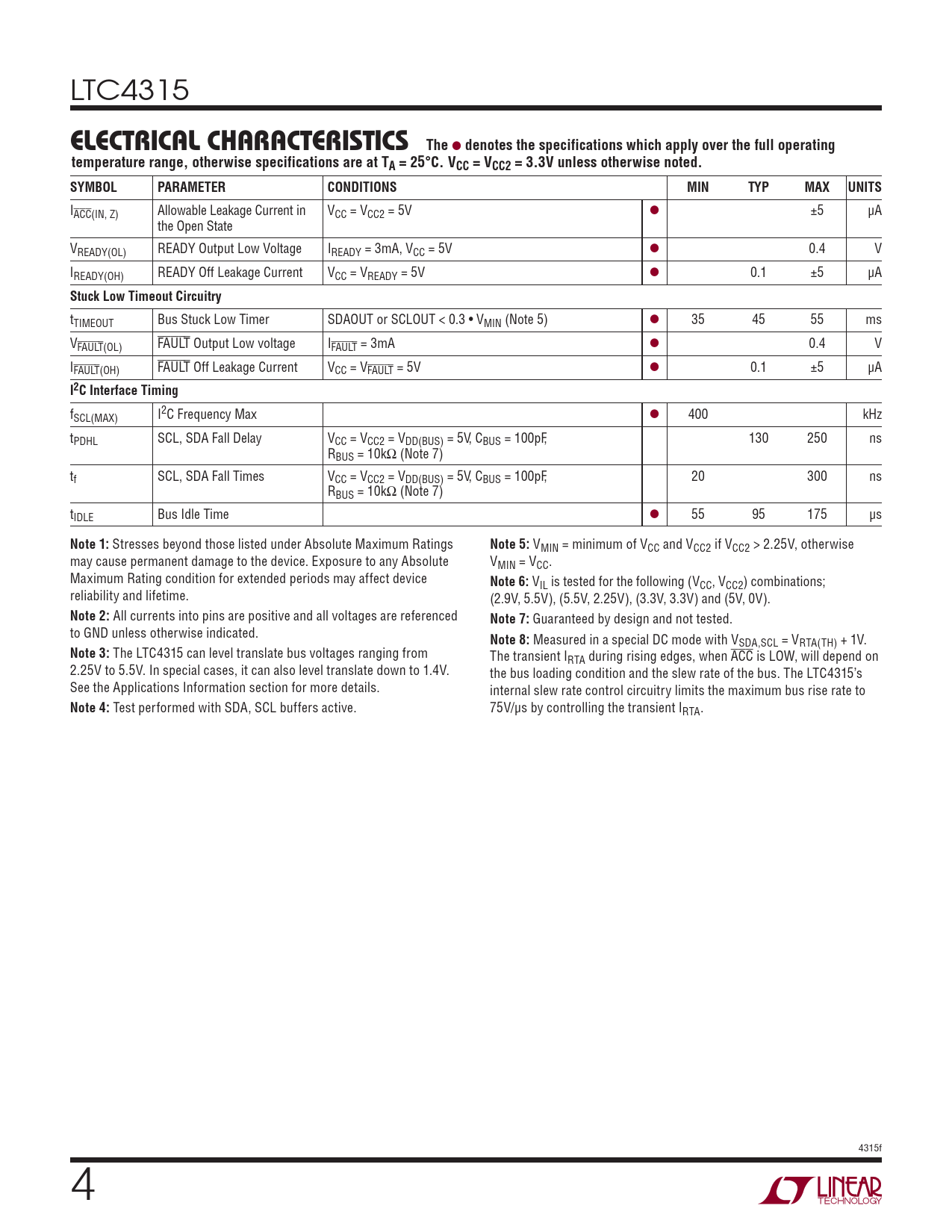

ELECTRICAL CHARACTERISTICS. The. denotes the specifications which apply over the full operating
该数据表的模型线
文件文字版本
LTC4315
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. VCC = VCC2 = 3.3V unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
IACC(IN, Z) Allowable Leakage Current in VCC = VCC2 = 5V l ±5 μA the Open State VREADY(OL) READY Output Low Voltage IREADY = 3mA, VCC = 5V l 0.4 V IREADY(OH) READY Off Leakage Current VCC = VREADY = 5V l 0.1 ±5 μA
Stuck Low Timeout Circuitry
tTIMEOUT Bus Stuck Low Timer SDAOUT or SCLOUT < 0.3 • VMIN (Note 5) l 35 45 55 ms VFAULT(OL) FAULT Output Low voltage IFAULT = 3mA l 0.4 V IFAULT(OH) FAULT Off Leakage Current VCC = VFAULT = 5V l 0.1 ±5 μA
I2C Interface Timing
fSCL(MAX) I2C Frequency Max l 400 kHz tPDHL SCL, SDA Fall Delay VCC = VCC2 = VDD(BUS) = 5V, CBUS = 100pF, 130 250 ns RBUS = 10kΩ (Note 7) tf SCL, SDA Fall Times VCC = VCC2 = VDD(BUS) = 5V, CBUS = 100pF, 20 300 ns RBUS = 10kΩ (Note 7) tIDLE Bus Idle Time l 55 95 175 μs
