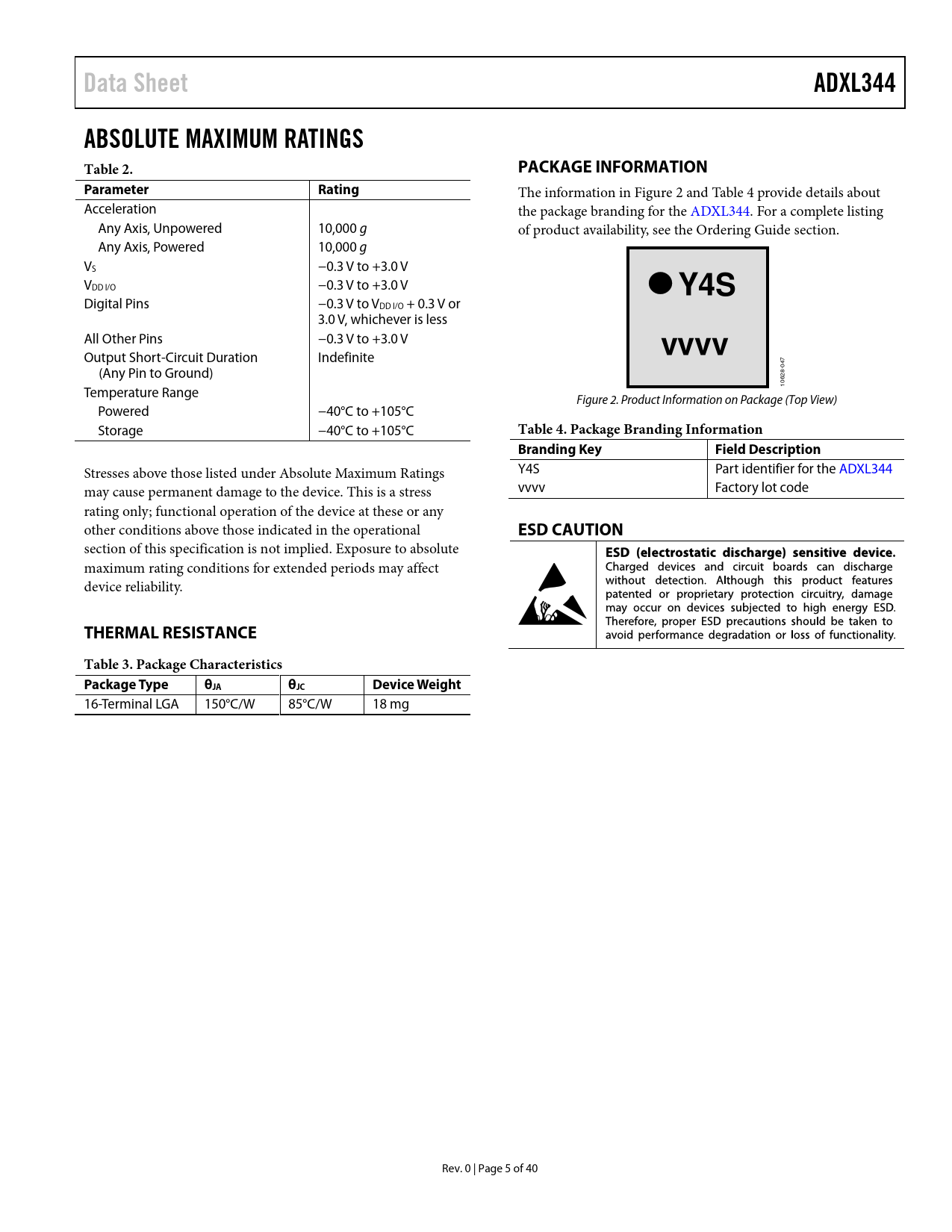

link to page 6 link to page 6 link to page 38 Data SheetADXL344ABSOLUTE MAXIMUM RATINGS Table 2.PACKAGE INFORMATIONParameterRating The information in Figure 2 and Table 4 provide details about Acceleration the package branding for the ADXL344. For a complete listing Any Axis, Unpowered 10,000 g of product availability, see the Ordering Guide section. Any Axis, Powered 10,000 g VS −0.3 V to +3.0 V VDD I/O −0.3 V to +3.0 V Y4S Digital Pins −0.3 V to VDD I/O + 0.3 V or 3.0 V, whichever is less All Other Pins −0.3 V to +3.0 V vvvv Output Short-Circuit Duration Indefinite 047 (Any Pin to Ground) Temperature Range 10628- Figure 2. Product Information on Package (Top View) Powered −40°C to +105°C Storage −40°C to +105°C Table 4. Package Branding InformationBranding KeyField Description Stresses above those listed under Absolute Maximum Ratings Y4S Part identifier for the ADXL344 may cause permanent damage to the device. This is a stress vvvv Factory lot code rating only; functional operation of the device at these or any other conditions above those indicated in the operational ESD CAUTION section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. THERMAL RESISTANCETable 3. Package CharacteristicsPackage TypeθJAθJCDevice Weight 16-Terminal LGA 150°C/W 85°C/W 18 mg Rev. 0 | Page 5 of 40 Document Outline Features Applications General Description Functional Block Diagram Revision History Specifications Absolute Maximum Ratings Thermal Resistance Package Information ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Theory of Operation Power Sequencing Power Savings Power Modes Autosleep Mode Standby Mode Serial Communications SPI Preventing Bus Traffic Errors I2C Interrupts DATA_READY Bit SINGLE_TAP Bit DOUBLE_TAP Bit Activity Bit Inactivity Bit FREE_FALL Bit Watermark Bit Overrun Bit Orientation Bit FIFO Bypass Mode FIFO Mode Stream Mode Trigger Mode Retrieving Data from FIFO Self-Test Register Map Register Definitions Register 0x00—DEVID (Read Only) Register 0x1D—THRESH_TAP (Read/Write) Register 0x1E, Register 0x1F, Register 0x20—OFSX, OFSY, OFSZ (Read/Write) Register 0x21—DUR (Read/Write) Register 0x22—Latent (Read/Write) Register 0x23—Window (Read/Write) Register 0x24—THRESH_ACT (Read/Write) Register 0x25—THRESH_INACT (Read/Write) Register 0x26—TIME_INACT (Read/Write) Register 0x27—ACT_INACT_CTL (Read/Write) ACT AC/DC and INACT AC/DC Bits ACT_x Enable Bits and INACT_x Enable Bits Register 0x28—THRESH_FF (Read/Write) Register 0x29—TIME_FF (Read/Write) Register 0x2A—TAP_AXES (Read/Write) Improved Tap Bit Suppress Bit TAP_x Enable Bits Register 0x2B—ACT_TAP_STATUS (Read Only) ACT_x Source and TAP_x Source Bits Asleep Bit Register 0x2C—BW_RATE (Read/Write) LOW_POWER Bit Rate Bits Register 0x2D—POWER_CTL (Read/Write) Link Bit AUTO_SLEEP Bit Measure Bit Sleep Bit Wakeup Bits Register 0x2E—INT_ENABLE (Read/Write) Register 0x2F—INT_MAP (Read/Write) Register 0x30—INT_SOURCE (Read Only) Register 0x31—DATA_FORMAT (Read/Write) SELF_TEST Bit SPI Bit INT_INVERT Bit FULL_RES Bit Justify Bit Range Bits Register 0x32 to Register 0x37—DATAX0, DATAX1, DATAY0, DATAY1, DATAZ0, DATAZ1 (Read Only) Register 0x38—FIFO_CTL (Read/Write) FIFO_MODE Bits Trigger Bit Samples Bits Register 0x39—FIFO_STATUS (Read Only) FIFO_TRIG Bit Entries Bits Register 0x3A—TAP_SIGN (Read Only) xSIGN Bits xTAP Bits Register 0x3B—ORIENT_CONF (Read/Write) INT_ORIENT Bit Dead Zone Bits INT_3D Bit Divisor Bits Register 0x3C—Orient (Read Only) Vx Bits xD_ORIENT Bits Applications Information Power Supply Decoupling Mechanical Considerations for Mounting Tap Detection Improved Tap Detection Tap Sign Threshold Link Mode Sleep Mode vs. Low Power Mode Offset Calibration Using Self-Test Orientation Sensing Data Formatting of Upper Data Rates Noise Performance Operation at Voltages Other Than 2.6 V Offset Performance at Lowest Data Rates Axes of Acceleration Sensitivity Layout and Design Recommendations Outline Dimensions Ordering Guide
