MIC5021
该数据表的模型线
文件文字版本
MIC5021

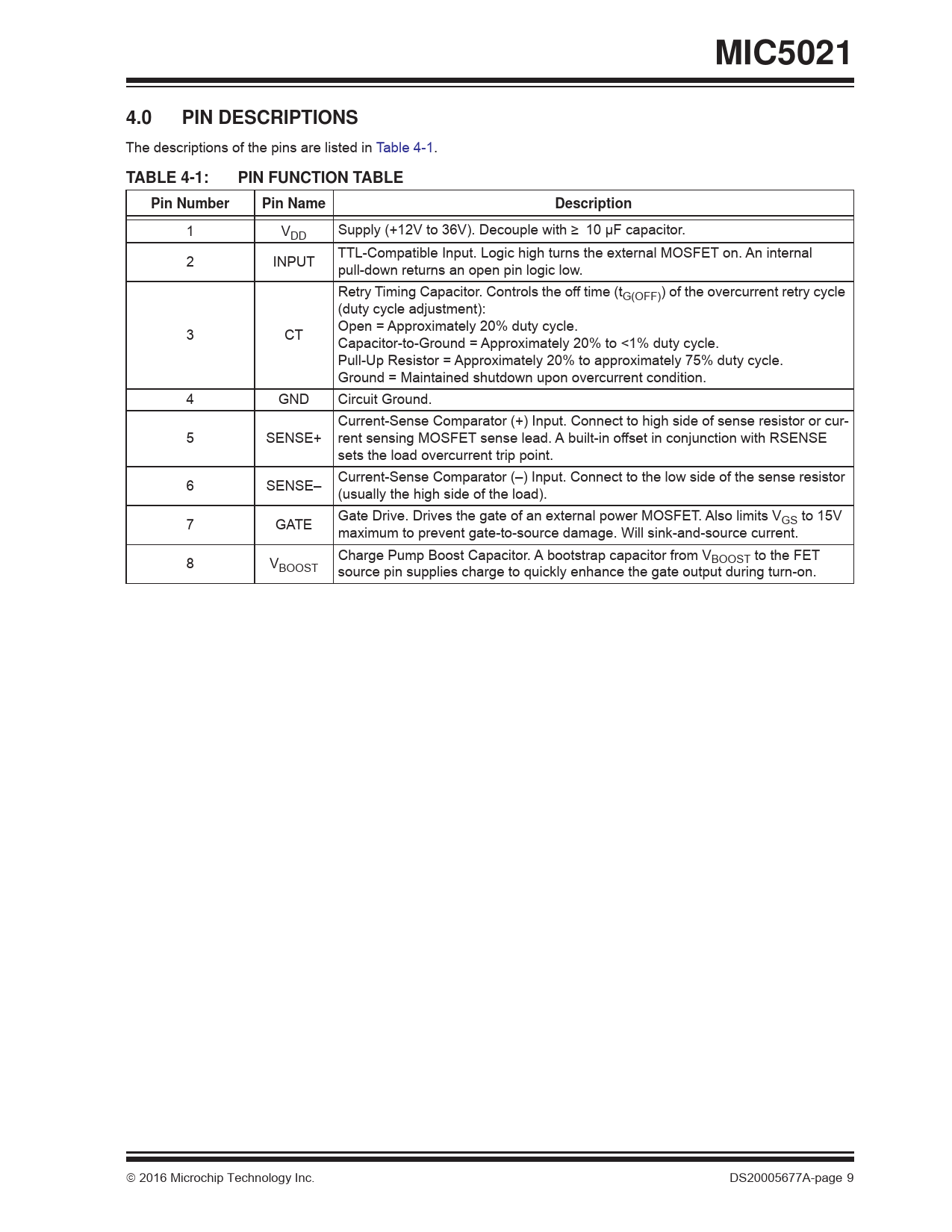

4.0 PIN DESCRIPTIONS The descriptions of the pins are listed in Table 4-1. TABLE 4-1: PIN FUNCTION TABLE Pin Number Pin Name 1 VDD 2 INPUT Description
Supply (+12V to 36V). Decouple with ≥ 10 μF capacitor.
TTL-Compatible Input. Logic high turns the external MOSFET on. An internal
pull-down returns an open pin logic low.
Retry Timing Capacitor. Controls the off time (tG(OFF) of the overcurrent retry cycle
(duty cycle adjustment):
Open = Approximately 20% duty cycle.
Capacitor-to-Ground = Approximately 20% to
4.0 PIN DESCRIPTIONS The descriptions of the pins are listed in Table 4-1. TABLE 4-1: PIN FUNCTION TABLE Pin Number Pin Name 1 VDD 2 INPUT Description
Supply (+12V to 36V). Decouple with ≥ 10 μF capacitor.
TTL-Compatible Input. Logic high turns the external MOSFET on. An internal
pull-down returns an open pin logic low.
Retry Timing Capacitor. Controls the off time (tG(OFF) of the overcurrent retry cycle
(duty cycle adjustment):
Open = Approximately 20% duty cycle.
Capacitor-to-Ground = Approximately 20% to
