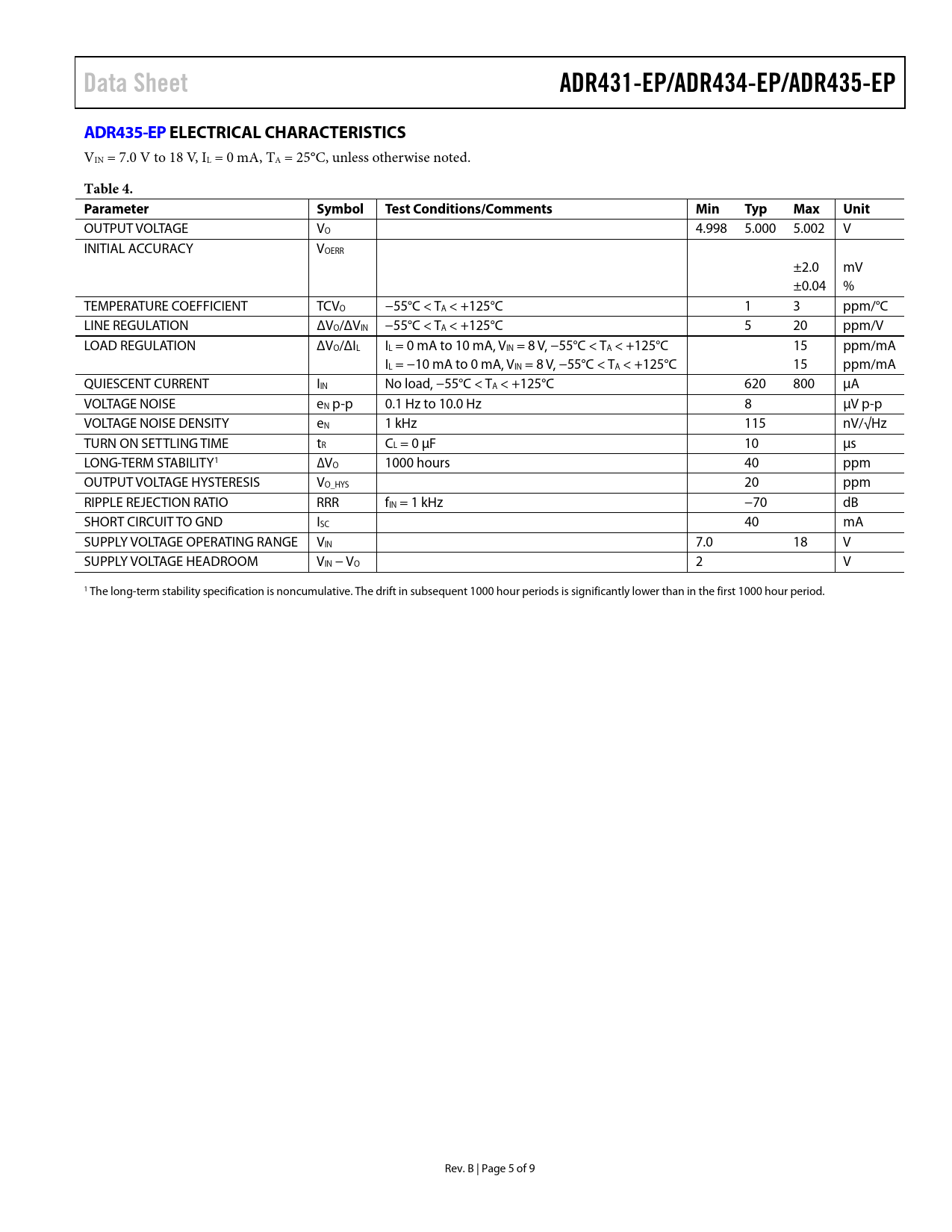

Data Sheet. ADR431-EP/ADR434-EP/ADR435-EP. ADR435-EP E. LECTRICAL CHARACTERISTICS. Table 4. Parameter. Symbol
该数据表的模型线
- ADR431ARMZ ADR431ARMZ-REEL7 ADR431ARZ ADR431ARZ-REEL7 ADR431BRMZ ADR431BRMZ-R7 ADR431BRZ ADR431BRZ-REEL7 ADR431TRZ-EP ADR431TRZ-EP-R7
文件文字版本
Data Sheet ADR431-EP/ADR434-EP/ADR435-EP ADR435-EP E LECTRICAL CHARACTERISTICS
VIN = 7.0 V to 18 V, IL = 0 mA, TA = 25°C, unless otherwise noted.
Table 4. Parameter Symbol Test Conditions/Comments Min Typ Max Unit
OUTPUT VOLTAGE VO 4.998 5.000 5.002 V INITIAL ACCURACY VOERR ±2.0 mV ±0.04 % TEMPERATURE COEFFICIENT TCVO −55°C < TA < +125°C 1 3 ppm/°C LINE REGULATION ΔVO/ΔVIN −55°C < TA < +125°C 5 20 ppm/V LOAD REGULATION ΔVO/ΔIL IL = 0 mA to 10 mA, VIN = 8 V, −55°C < TA < +125°C 15 ppm/mA IL = −10 mA to 0 mA, VIN = 8 V, −55°C < TA < +125°C 15 ppm/mA QUIESCENT CURRENT IIN No load, −55°C < TA < +125°C 620 800 µA VOLTAGE NOISE eN p-p 0.1 Hz to 10.0 Hz 8 µV p-p VOLTAGE NOISE DENSITY eN 1 kHz 115 nV/√Hz TURN ON SETTLING TIME tR CL = 0 µF 10 µs LONG-TERM STABILITY1 ∆VO 1000 hours 40 ppm OUTPUT VOLTAGE HYSTERESIS VO_HYS 20 ppm RIPPLE REJECTION RATIO RRR fIN = 1 kHz −70 dB SHORT CIRCUIT TO GND ISC 40 mA SUPPLY VOLTAGE OPERATING RANGE VIN 7.0 18 V SUPPLY VOLTAGE HEADROOM VIN − VO 2 V 1 The long-term stability specification is noncumulative. The drift in subsequent 1000 hour periods is significantly lower than in the first 1000 hour period. Rev. B | Page 5 of 9 Document Outline Features Enhanced Product Features Applications Pin Configuration General Description Revision History Specifications ADR431-EP Electrical Characteristics ADR434-EP Electrical Characteristics ADR435-EP Electrical Characteristics Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Outline Dimensions Ordering Guide
