Data Sheet. ADR431-EP/ADR434-EP/ADR435-EP. OUTLINE DIMENSIONS. 5.00 (0.1968) 4.80 (0.1890). 4.00 (0.1574). 6.20 (0.2441)
该数据表的模型线
- ADR431ARMZ ADR431ARMZ-REEL7 ADR431ARZ ADR431ARZ-REEL7 ADR431BRMZ ADR431BRMZ-R7 ADR431BRZ ADR431BRZ-REEL7 ADR431TRZ-EP ADR431TRZ-EP-R7
文件文字版本

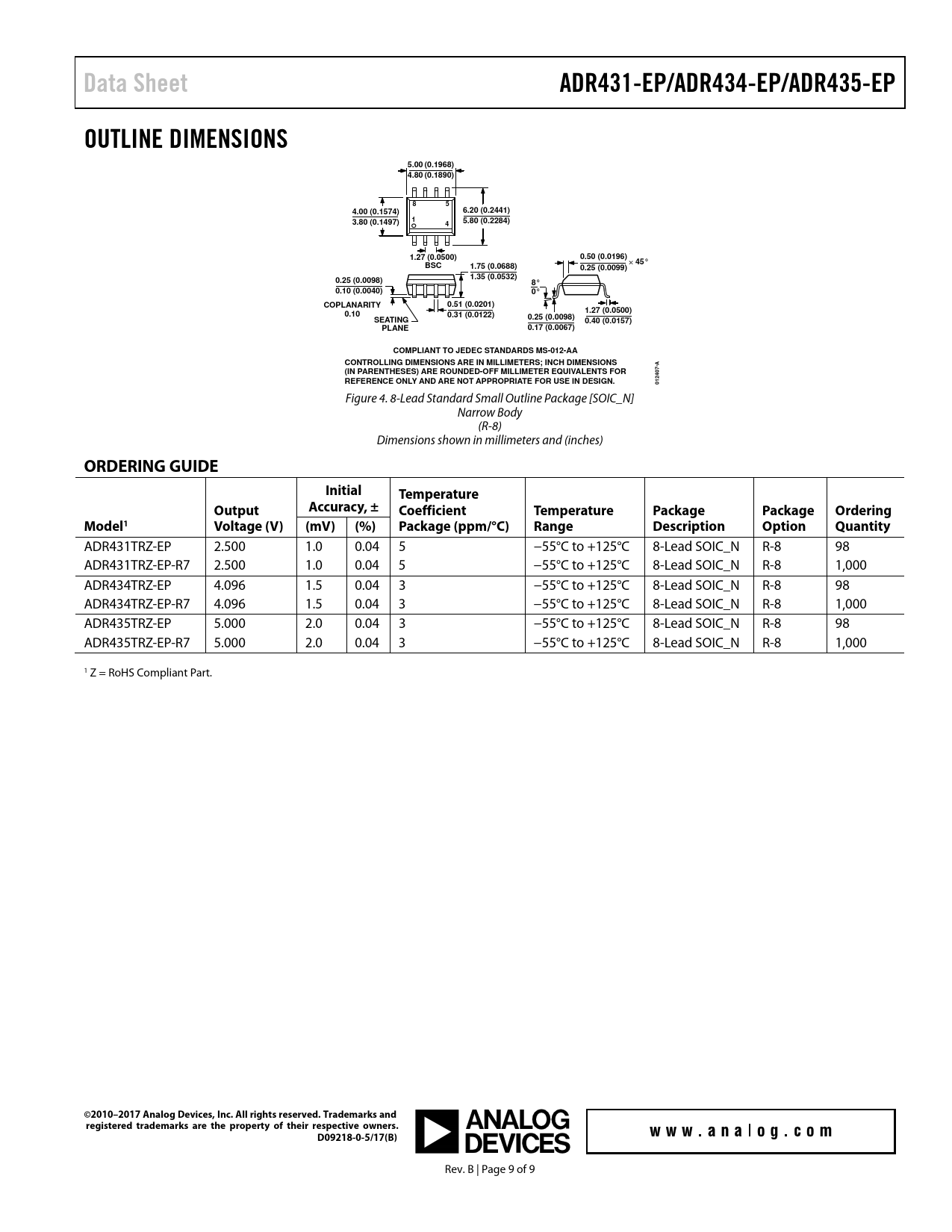

Data Sheet ADR431-EP/ADR434-EP/ADR435-EP OUTLINE DIMENSIONS 5.00 (0.1968) 4.80 (0.1890) 8 5 4.00 (0.1574) 6.20 (0.2441) 1 3.80 (0.1497) 5.80 (0.2284) 4 1.27 (0.0500) 0.50 (0.0196) 45° BSC 1.75 (0.0688) 0.25 (0.0099) 1.35 (0.0532) 0.25 (0.0098) 8° 0.10 (0.0040) 0° COPLANARITY 0.51 (0.0201) 1.27 (0.0500) 0.10 0.31 (0.0122) 0.25 (0.0098) SEATING 0.40 (0.0157) PLANE 0.17 (0.0067) COMPLIANT TO JEDEC STANDARDS MS-012-AA CONTROLLING DIMENSIONS ARE IN MILLIMETERS; INCH DIMENSIONS -A (IN PARENTHESES) ARE ROUNDED-OFF MILLIMETER EQUIVALENTS FOR 07 24 REFERENCE ONLY AND ARE NOT APPROPRIATE FOR USE IN DESIGN. 01
Figure 4. 8-Lead Standard Small Outline Package [SOIC_N] Narrow Body (R-8) Dimensions shown in millimeters and (inches)
ORDERING GUIDE Initial Temperature Output Accuracy, ± Coefficient Temperature Package Package Ordering Model1 Voltage (V) (mV) (%) Package (ppm/°C) Range Description Option Quantity
ADR431TRZ-EP 2.500 1.0 0.04 5 −55°C to +125°C 8-Lead SOIC_N R-8 98 ADR431TRZ-EP-R7 2.500 1.0 0.04 5 −55°C to +125°C 8-Lead SOIC_N R-8 1,000 ADR434TRZ-EP 4.096 1.5 0.04 3 −55°C to +125°C 8-Lead SOIC_N R-8 98 ADR434TRZ-EP-R7 4.096 1.5 0.04 3 −55°C to +125°C 8-Lead SOIC_N R-8 1,000 ADR435TRZ-EP 5.000 2.0 0.04 3 −55°C to +125°C 8-Lead SOIC_N R-8 98 ADR435TRZ-EP-R7 5.000 2.0 0.04 3 −55°C to +125°C 8-Lead SOIC_N R-8 1,000 1 Z = RoHS Compliant Part.
©2010–2017 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. D09218-0-5/17(B)
Rev. B | Page 9 of 9 Document Outline Features Enhanced Product Features Applications Pin Configuration General Description Revision History Specifications ADR431-EP Electrical Characteristics ADR434-EP Electrical Characteristics ADR435-EP Electrical Characteristics Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Outline Dimensions Ordering Guide
