Datasheet ADR431-EP, ADR434-EP, ADR435-EP (Analog Devices) - 3
| 制造商 | Analog Devices |
| 描述 | Ultralow Noise XFET® Voltage References with Current Sink and Source Capability |
| 页数 / 页 | 9 / 3 — Data Sheet. ADR431-EP/ADR434-EP/ADR435-EP. SPECIFICATIONS ADR431-EP E. … |
| 修订版 | B |
| 文件格式/大小 | PDF / 182 Kb |
| 文件语言 | 英语 |

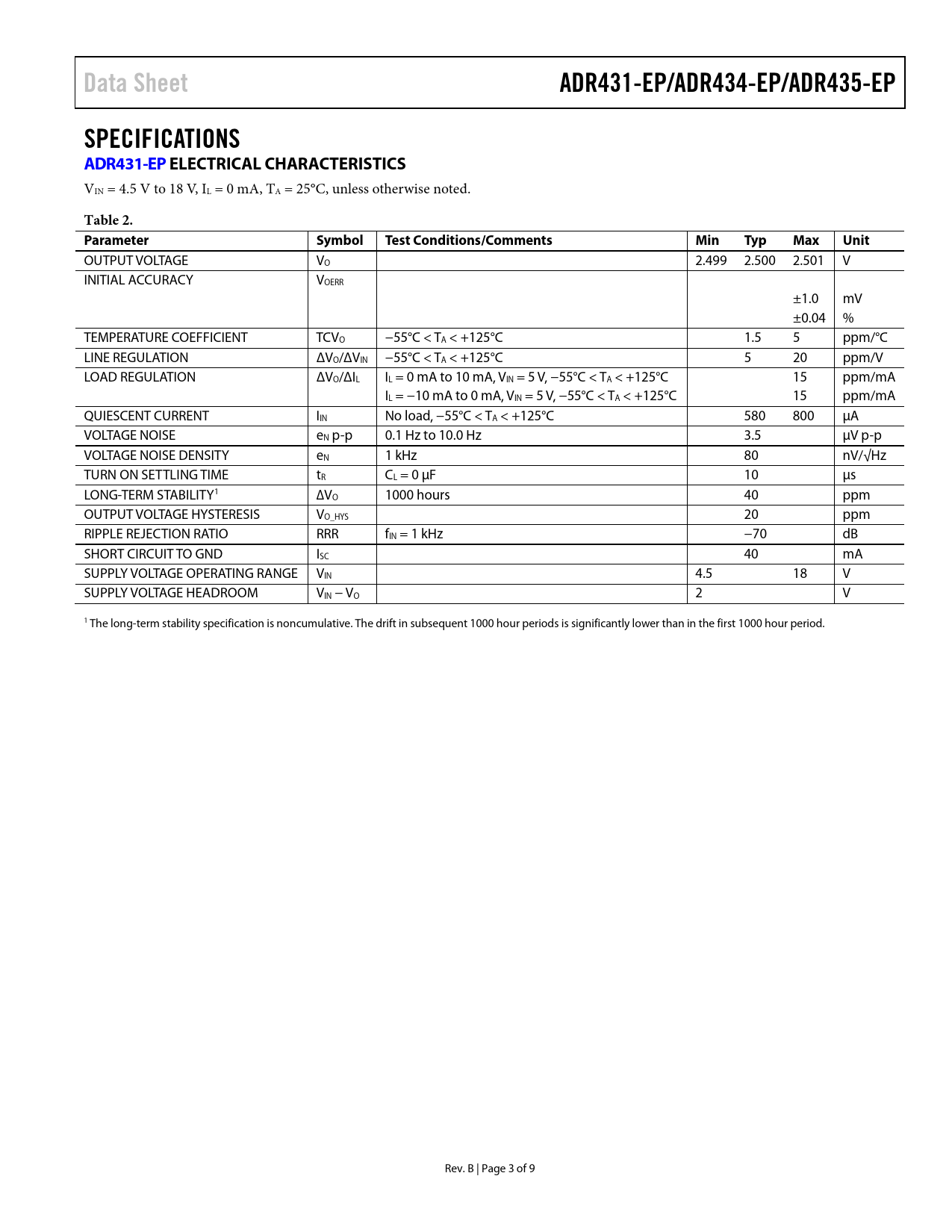

Data Sheet. ADR431-EP/ADR434-EP/ADR435-EP. SPECIFICATIONS ADR431-EP E. LECTRICAL CHARACTERISTICS. Table 2. Parameter. Symbol
该数据表的模型线
- ADR431ARMZ ADR431ARMZ-REEL7 ADR431ARZ ADR431ARZ-REEL7 ADR431BRMZ ADR431BRMZ-R7 ADR431BRZ ADR431BRZ-REEL7 ADR431TRZ-EP ADR431TRZ-EP-R7
文件文字版本
Data Sheet ADR431-EP/ADR434-EP/ADR435-EP SPECIFICATIONS ADR431-EP E LECTRICAL CHARACTERISTICS
VIN = 4.5 V to 18 V, IL = 0 mA, TA = 25°C, unless otherwise noted.
Table 2. Parameter Symbol Test Conditions/Comments Min Typ Max Unit
OUTPUT VOLTAGE VO 2.499 2.500 2.501 V INITIAL ACCURACY VOERR ±1.0 mV ±0.04 % TEMPERATURE COEFFICIENT TCVO −55°C < TA < +125°C 1.5 5 ppm/°C LINE REGULATION ΔVO/ΔVIN −55°C < TA < +125°C 5 20 ppm/V LOAD REGULATION ΔVO/ΔIL IL = 0 mA to 10 mA, VIN = 5 V, −55°C < TA < +125°C 15 ppm/mA IL = −10 mA to 0 mA, VIN = 5 V, −55°C < TA < +125°C 15 ppm/mA QUIESCENT CURRENT IIN No load, −55°C < TA < +125°C 580 800 µA VOLTAGE NOISE eN p-p 0.1 Hz to 10.0 Hz 3.5 µV p-p VOLTAGE NOISE DENSITY eN 1 kHz 80 nV/√Hz TURN ON SETTLING TIME tR CL = 0 µF 10 µs LONG-TERM STABILITY1 ∆VO 1000 hours 40 ppm OUTPUT VOLTAGE HYSTERESIS VO_HYS 20 ppm RIPPLE REJECTION RATIO RRR fIN = 1 kHz −70 dB SHORT CIRCUIT TO GND ISC 40 mA SUPPLY VOLTAGE OPERATING RANGE VIN 4.5 18 V SUPPLY VOLTAGE HEADROOM VIN − VO 2 V 1 The long-term stability specification is noncumulative. The drift in subsequent 1000 hour periods is significantly lower than in the first 1000 hour period. Rev. B | Page 3 of 9 Document Outline Features Enhanced Product Features Applications Pin Configuration General Description Revision History Specifications ADR431-EP Electrical Characteristics ADR434-EP Electrical Characteristics ADR435-EP Electrical Characteristics Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Outline Dimensions Ordering Guide
