MC74VHC1GT50
V A CC 50% GND t t PLH PHL VOH Y 50% VCC VOL

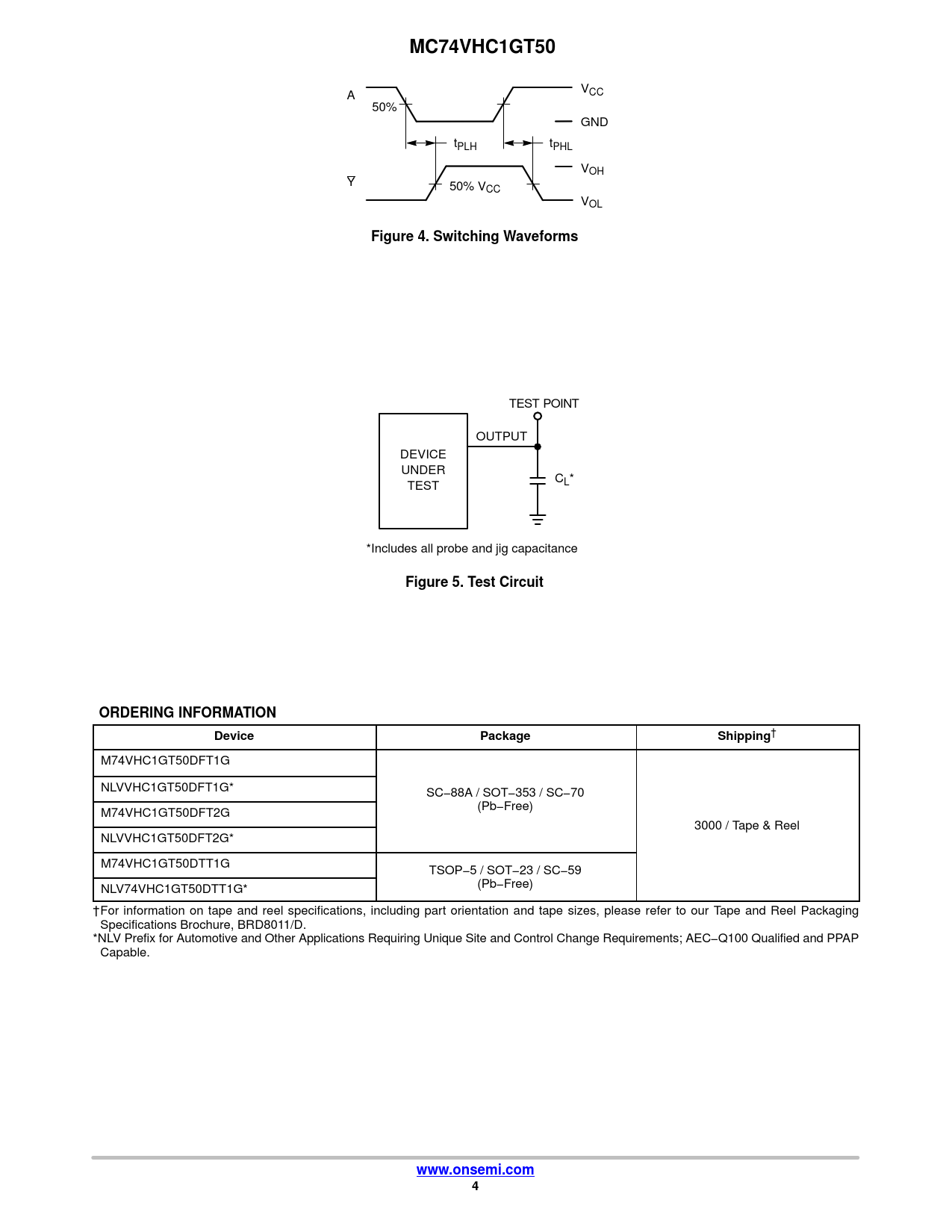

Figure 4. Switching Waveforms
TEST POINT OUTPUT DEVICE UNDER CL* TEST *Includes all probe and jig capacitance
Figure 5. Test Circuit ORDERING INFORMATION Device Package Shipping
† M74VHC1GT50DFT1G NLVVHC1GT50DFT1G* SC−88A / SOT−353 / SC−70 (Pb−Free) M74VHC1GT50DFT2G 3000 / Tape & Reel NLVVHC1GT50DFT2G* M74VHC1GT50DTT1G TSOP−5 / SOT−23 / SC−59 (Pb−Free) NLV74VHC1GT50DTT1G* †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. *NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable.
www.onsemi.com 4
