Datasheet ARL-5213RGBC/4C (Arlight) - 2
| 制造商 | Arlight |
| 描述 | Ultra bright LED RGB, Red-Green 525nm- Blue, 2000-2700mcd |
| 页数 / 页 | 5 / 2 — Absolute Maximum Rating. (Ta=25°C). Parameter. Symbol. Unit. … |
| 文件格式/大小 | PDF / 168 Kb |
| 文件语言 | 英语 |
Absolute Maximum Rating. (Ta=25°C). Parameter. Symbol. Unit. Electric-optical characteristics (Ta=25°C). Device. Min. Typ. Max. Test Con-
该数据表的模型线
文件文字版本

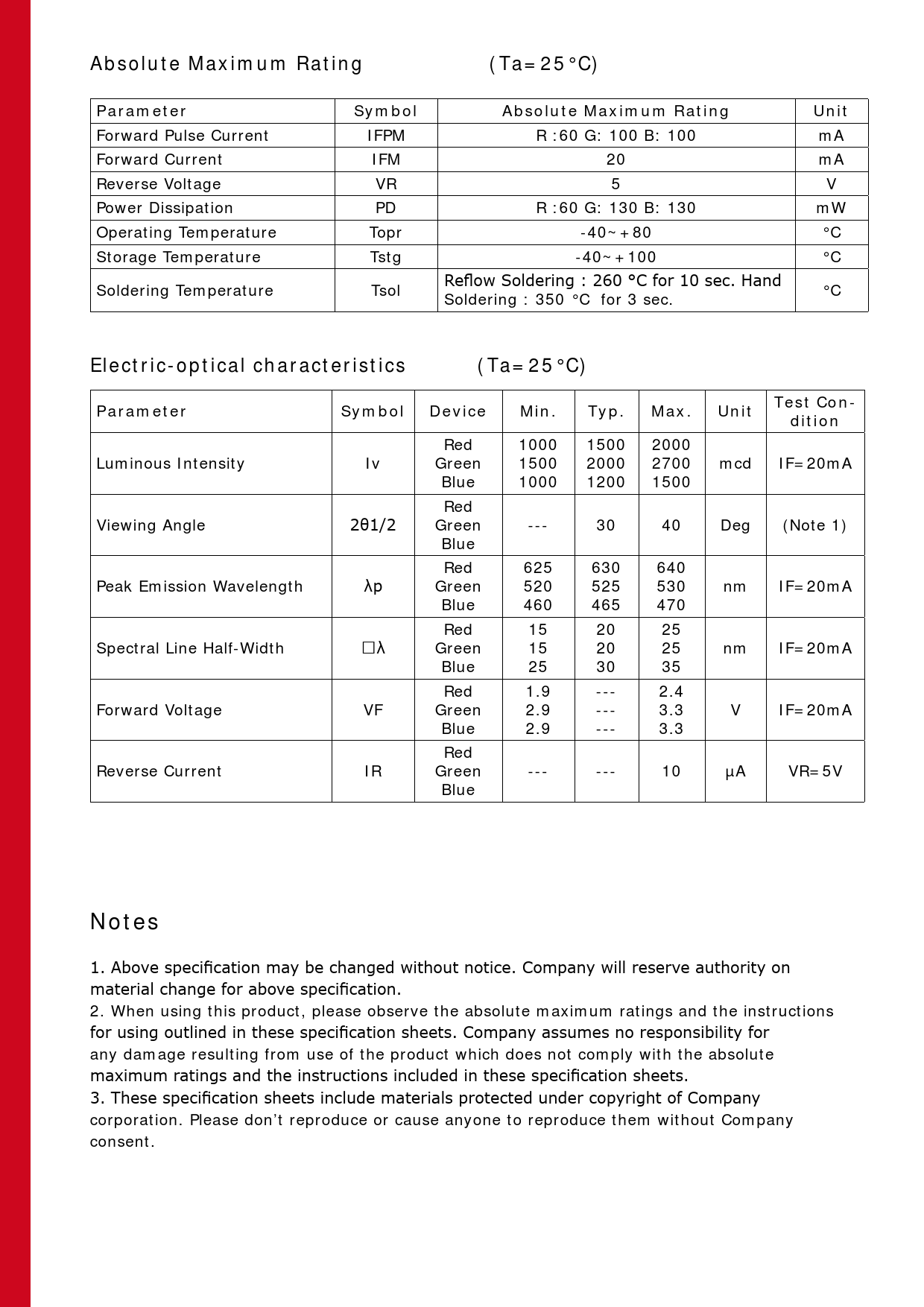

Absolute Maximum Rating (Ta=25°C) Parameter Symbol Absolute Maximum Rating Unit
Forward Pulse Current IFPM R :60 G: 100 B: 100 mA Forward Current IFM 20 mA Reverse Voltage VR 5 V Power Dissipation PD R :60 G: 130 B: 130 mW Operating Temperature Topr -40~+80 °C Storage Temperature Tstg -40~+100 °C Soldering Temperature Tsol Reflow Soldering : 260 °C for 10 sec. Hand Soldering : 350 °C for 3 sec. °C
Electric-optical characteristics (Ta=25°C) Parameter Symbol Device Min. Typ. Max. Unit Test Con- dition
Red 1000 1500 2000 Luminous Intensity Iv Green 1500 2000 2700 mcd IF=20mA Blue 1000 1200 1500 Red Viewing Angle 2θ1/2 Green --- 30 40 Deg (Note 1) Blue Red 625 630 640 Peak Emission Wavelength λp Green 520 525 530 nm IF=20mA Blue 460 465 470 Red 15 20 25 Spectral Line Half-Width △λ Green 15 20 25 nm IF=20mA Blue 25 30 35 Red 1.9 --- 2.4 Forward Voltage VF Green 2.9 --- 3.3 V IF=20mA Blue 2.9 --- 3.3 Red Reverse Current IR Green --- --- 10 µA VR=5V Blue
Notes
1. Above specification may be changed without notice. Company will reserve authority on material change for above specification. 2. When using this product, please observe the absolute maximum ratings and the instructions for using outlined in these specification sheets. Company assumes no responsibility for any damage resulting from use of the product which does not comply with the absolute maximum ratings and the instructions included in these specification sheets. 3. These specification sheets include materials protected under copyright of Company corporation. Please don’t reproduce or cause anyone to reproduce them without Company consent.
