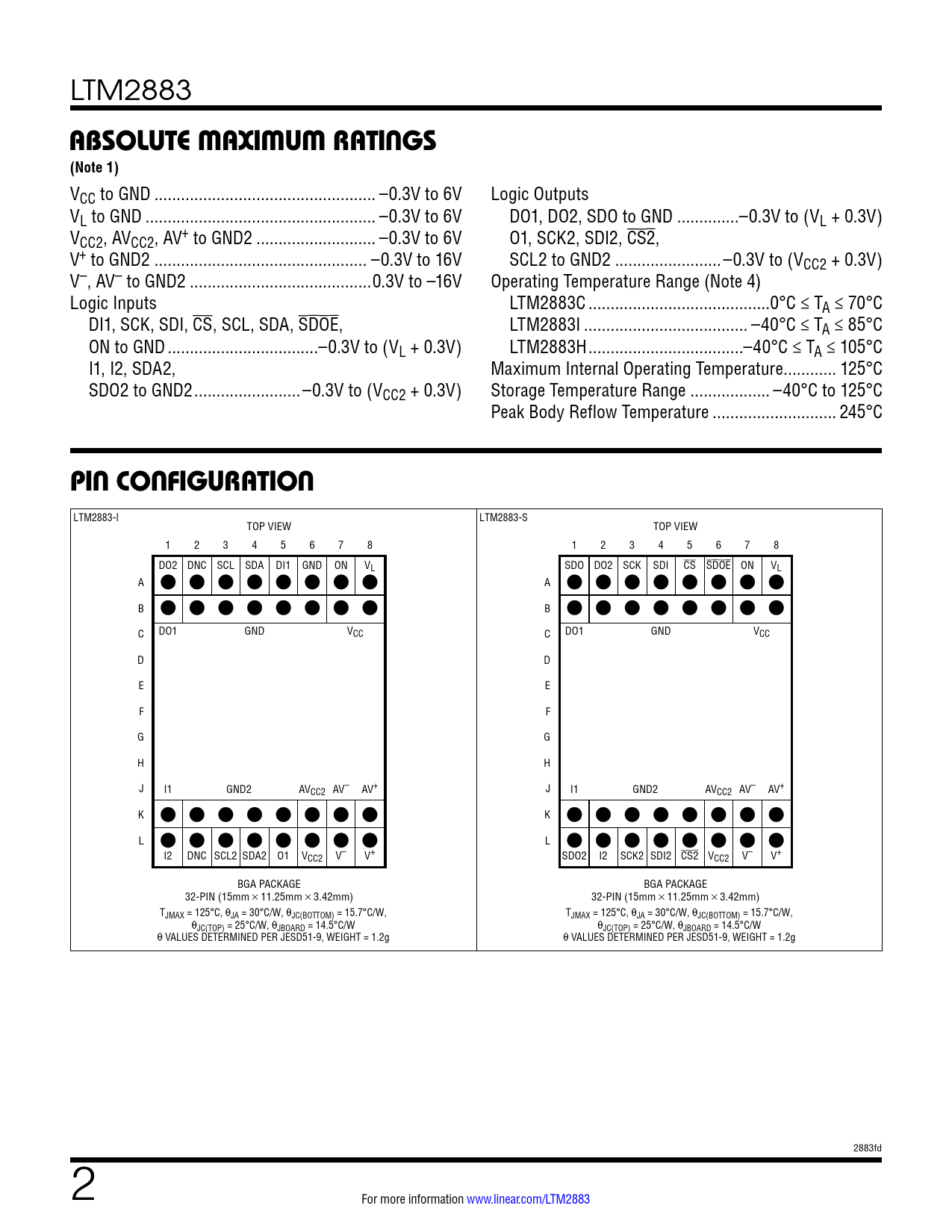

LTM2883
ABSOLUTE MAXIMUM RATINGS (Note 1)
VCC to GND .. –0.3V to 6V Logic Outputs VL to GND .. –0.3V to 6V DO1, DO2, SDO to GND ..–0.3V to (VL + 0.3V) VCC2, AVCC2, AV+ to GND2 ... –0.3V to 6V O1, SCK2, SDI2, CS2, V+ to GND2 .. –0.3V to 16V SCL2 to GND2 ..–0.3V to (VCC2 + 0.3V) V–, AV– to GND2 ...0.3V to –16V Operating Temperature Range (Note 4) Logic Inputs LTM2883C ...0°C ≤ TA ≤ 70°C DI1, SCK, SDI, CS, SCL, SDA, SDOE, LTM2883I ... –40°C ≤ TA ≤ 85°C ON to GND ..–0.3V to (VL + 0.3V) LTM2883H ...–40°C ≤ TA ≤ 105°C I1, I2, SDA2, Maximum Internal Operating Temperature .. 125°C SDO2 to GND2 ..–0.3V to (VCC2 + 0.3V) Storage Temperature Range .. –40°C to 125°C Peak Body Reflow Temperature .. 245°C
PIN CONFIGURATION
LTM2883-I LTM2883-S TOP VIEW TOP VIEW 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 DO2 DNC SCL SDA DI1 GND ON VL SDO DO2 SCK SDI CS SDOE ON VL A A B B DO1 GND V C CC DO1 GND V C CC D D E E F F G G H H J I1 AVCC2 AV+ AV– GND2 J I1 AVCC2 AV+ AV– GND2 K K L L I2 DNC SCL2 SDA2 O1 VCC2 V– V+ SDO2 I2 SCK2 SDI2 CS2 VCC2 V– V+ BGA PACKAGE BGA PACKAGE 32-PIN (15mm × 11.25mm × 3.42mm) 32-PIN (15mm × 11.25mm × 3.42mm) TJMAX = 125°C, θJA = 30°C/W, θJC(BOTTOM) = 15.7°C/W, TJMAX = 125°C, θJA = 30°C/W, θJC(BOTTOM) = 15.7°C/W, θJC(TOP) = 25°C/W, θJBOARD = 14.5°C/W θJC(TOP) = 25°C/W, θJBOARD = 14.5°C/W θ VALUES DETERMINED PER JESD51-9, WEIGHT = 1.2g θ VALUES DETERMINED PER JESD51-9, WEIGHT = 1.2g 2883fd 2 For more information www.linear.com/LTM2883 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Switching Characteristics Isolation Characteristics Typical Performance Characteristics Pin Functions Block Diagram Test Circuits Applications Information Package Description Typical Application Related Parts
