Datasheet LTM2883 (Analog Devices) - 3
| 制造商 | Analog Devices |
| 描述 | SPI/Digital or I2C μModule Isolator with Adjustable ±12.5V and 5V Regulated Power |
| 页数 / 页 | 36 / 3 — ORDER INFORMATION http://www.linear.com/product/LTM2883#orderinfo. PART … |
| 文件格式/大小 | PDF / 1.5 Mb |
| 文件语言 | 英语 |
ORDER INFORMATION http://www.linear.com/product/LTM2883#orderinfo. PART NUMBER. INPUT. PAD OR BALL. PART MARKING. PACKAGE. MSL
该数据表的模型线
文件文字版本
LTM2883

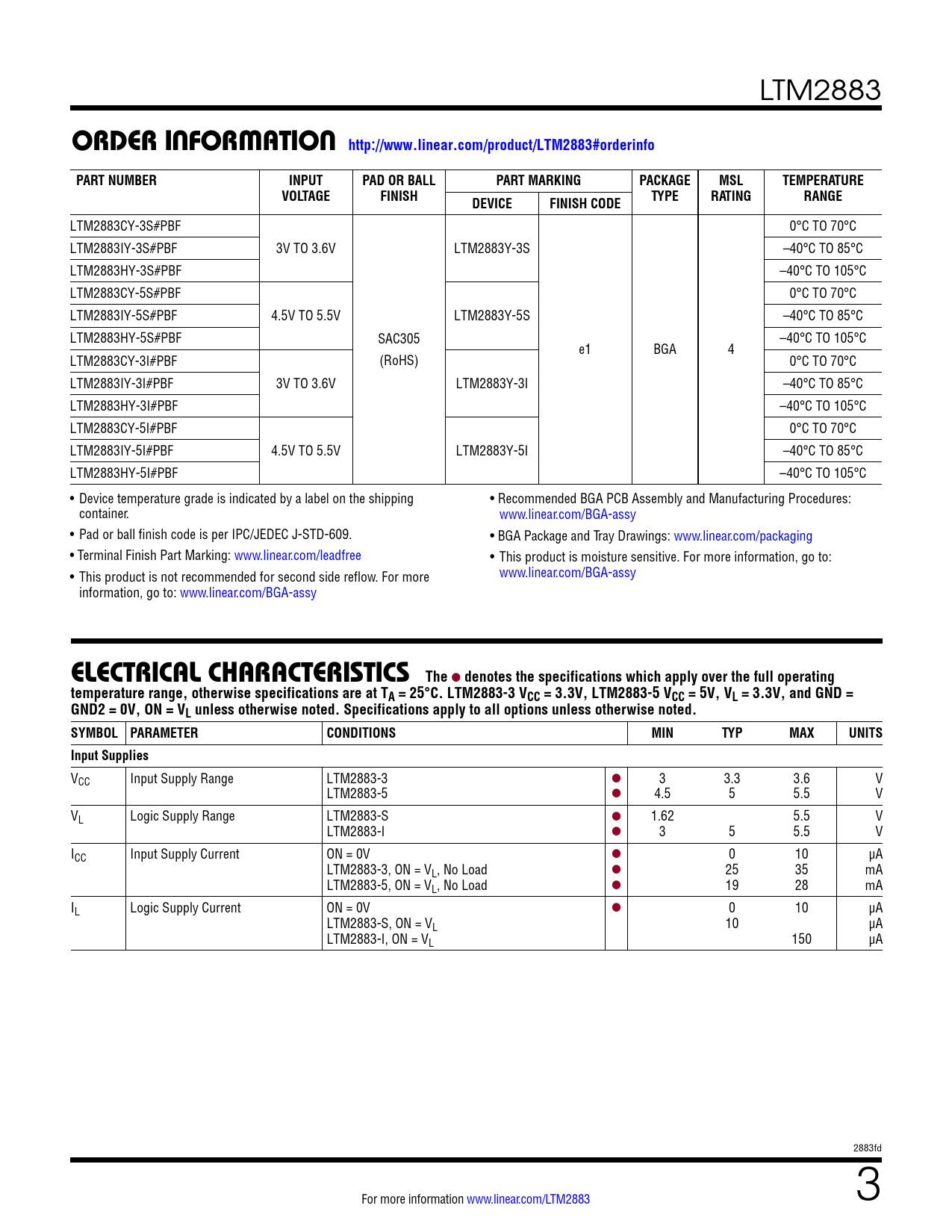

ORDER INFORMATION http://www.linear.com/product/LTM2883#orderinfo PART NUMBER INPUT PAD OR BALL PART MARKING PACKAGE MSL TEMPERATURE VOLTAGE FINISH TYPE RATING RANGE DEVICE FINISH CODE
LTM2883CY-3S#PBF 0°C TO 70°C LTM2883IY-3S#PBF 3V TO 3.6V LTM2883Y-3S –40°C TO 85°C LTM2883HY-3S#PBF –40°C TO 105°C LTM2883CY-5S#PBF 0°C TO 70°C LTM2883IY-5S#PBF 4.5V TO 5.5V LTM2883Y-5S –40°C TO 85°C LTM2883HY-5S#PBF SAC305 –40°C TO 105°C e1 BGA 4 LTM2883CY-3I#PBF (RoHS) 0°C TO 70°C LTM2883IY-3I#PBF 3V TO 3.6V LTM2883Y-3I –40°C TO 85°C LTM2883HY-3I#PBF –40°C TO 105°C LTM2883CY-5I#PBF 0°C TO 70°C LTM2883IY-5I#PBF 4.5V TO 5.5V LTM2883Y-5I –40°C TO 85°C LTM2883HY-5I#PBF –40°C TO 105°C • Device temperature grade is indicated by a label on the shipping • Recommended BGA PCB Assembly and Manufacturing Procedures: container. www.linear.com/BGA-assy • Pad or ball finish code is per IPC/JEDEC J-STD-609. • BGA Package and Tray Drawings: www.linear.com/packaging • Terminal Finish Part Marking: www.linear.com/leadfree • This product is moisture sensitive. For more information, go to: • This product is not recommended for second side reflow. For more www.linear.com/BGA-assy information, go to: www.linear.com/BGA-assy
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. LTM2883-3 VCC = 3.3V, LTM2883-5 VCC = 5V, VL = 3.3V, and GND = GND2 = 0V, ON = VL unless otherwise noted. Specifications apply to all options unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS Input Supplies
VCC Input Supply Range LTM2883-3 l 3 3.3 3.6 V LTM2883-5 l 4.5 5 5.5 V VL Logic Supply Range LTM2883-S l 1.62 5.5 V LTM2883-I l 3 5 5.5 V ICC Input Supply Current ON = 0V l 0 10 µA LTM2883-3, ON = VL, No Load l 25 35 mA LTM2883-5, ON = VL, No Load l 19 28 mA IL Logic Supply Current ON = 0V l 0 10 µA LTM2883-S, ON = VL 10 µA LTM2883-I, ON = VL 150 µA 2883fd For more information www.linear.com/LTM2883 3 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Switching Characteristics Isolation Characteristics Typical Performance Characteristics Pin Functions Block Diagram Test Circuits Applications Information Package Description Typical Application Related Parts
