ADuM6400/ADuM6401/ADuM6402/ADuM6403/ADuM6404. Data Sheet. INSULATION CHARACTERISTICS
该数据表的模型线
- ADUM6400ARIZ ADUM6400ARIZ-RL ADUM6400ARWZ ADUM6400ARWZ-RL ADUM6400CRIZ ADUM6400CRIZ-RL ADUM6400CRWZ ADUM6400CRWZ-RL
- ADUM6401ARIZ ADUM6401ARIZ-RL ADUM6401ARWZ ADUM6401ARWZ-RL ADUM6401CRIZ ADUM6401CRIZ-RL ADUM6401CRWZ ADUM6401CRWZ-RL
- ADUM6402ARIZ ADUM6402ARIZ-RL ADUM6402ARWZ ADUM6402ARWZ-RL ADUM6402CRIZ ADUM6402CRIZ-RL ADUM6402CRWZ ADUM6402CRWZ-RL
文件文字版本
link to page 10 link to page 11

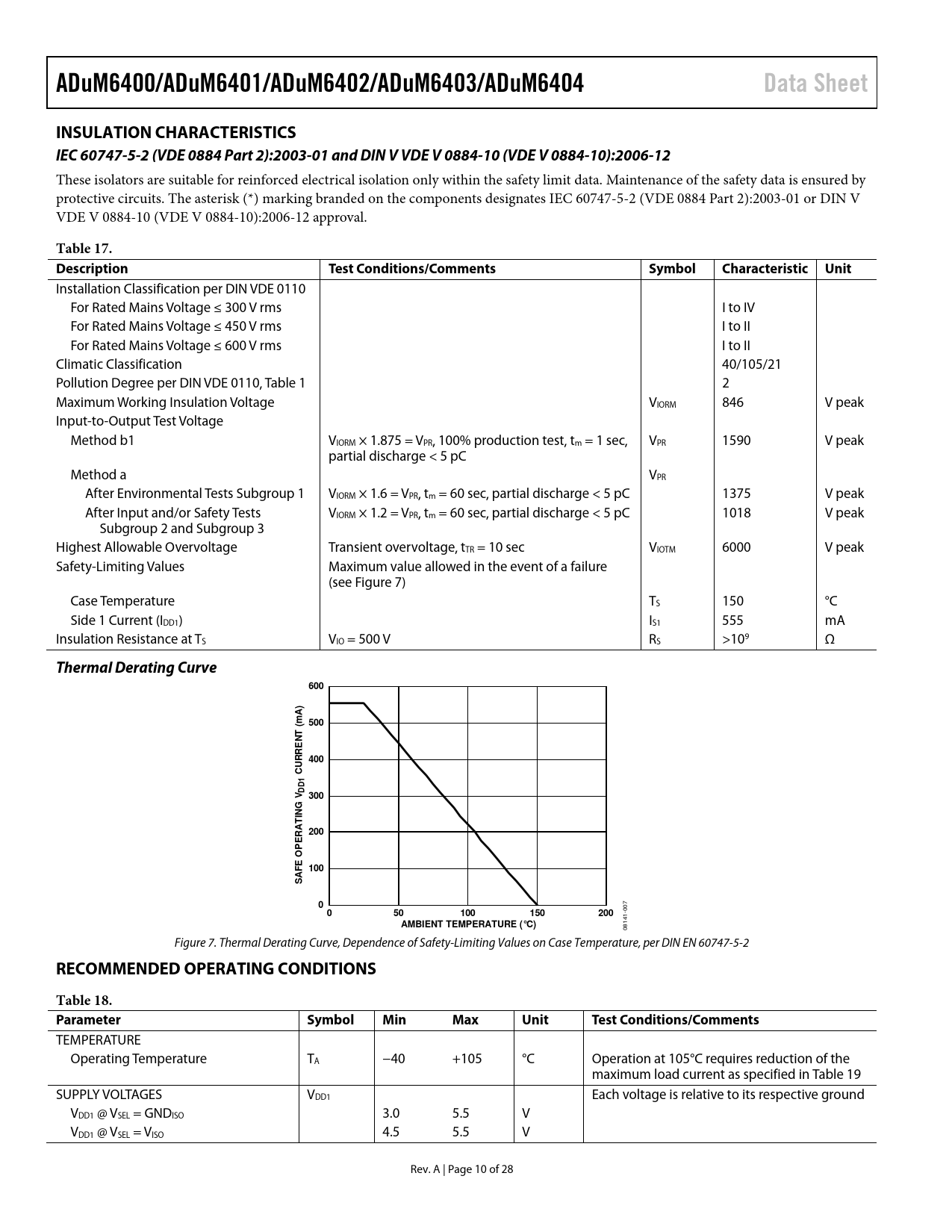

ADuM6400/ADuM6401/ADuM6402/ADuM6403/ADuM6404 Data Sheet INSULATION CHARACTERISTICS IEC 60747-5-2 (VDE 0884 Part 2):2003-01 and DIN V VDE V 0884-10 (VDE V 0884-10):2006-12
These isolators are suitable for reinforced electrical isolation only within the safety limit data. Maintenance of the safety data is ensured by protective circuits. The asterisk (*) marking branded on the components designates IEC 60747-5-2 (VDE 0884 Part 2):2003-01 or DIN V VDE V 0884-10 (VDE V 0884-10):2006-12 approval.
Table 17. Description Test Conditions/Comments Symbol Characteristic Unit
Installation Classification per DIN VDE 0110 For Rated Mains Voltage ≤ 300 V rms I to IV For Rated Mains Voltage ≤ 450 V rms I to II For Rated Mains Voltage ≤ 600 V rms I to II Climatic Classification 40/105/21 Pollution Degree per DIN VDE 0110, Table 1 2 Maximum Working Insulation Voltage VIORM 846 V peak Input-to-Output Test Voltage Method b1 VIORM × 1.875 = VPR, 100% production test, tm = 1 sec, VPR 1590 V peak partial discharge < 5 pC Method a VPR After Environmental Tests Subgroup 1 VIORM × 1.6 = VPR, tm = 60 sec, partial discharge < 5 pC 1375 V peak After Input and/or Safety Tests VIORM × 1.2 = VPR, tm = 60 sec, partial discharge < 5 pC 1018 V peak Subgroup 2 and Subgroup 3 Highest Allowable Overvoltage Transient overvoltage, tTR = 10 sec VIOTM 6000 V peak Safety-Limiting Values Maximum value allowed in the event of a failure (see Figure 7) Case Temperature TS 150 °C Side 1 Current (IDD1) IS1 555 mA Insulation Resistance at TS VIO = 500 V RS >109 Ω
Thermal Derating Curve 600 A) m 500 ( NT E 400 CURR 1 DD 300 V G IN 200 RAT E P O E 100 AF S 0
07
0 50 100 150 200
0 1-
AMBIENT TEMPERATURE (°C)
14 08 Figure 7. Thermal Derating Curve, Dependence of Safety-Limiting Values on Case Temperature, per DIN EN 60747-5-2
RECOMMENDED OPERATING CONDITIONS Table 18. Parameter Symbol Min Max Unit Test Conditions/Comments
