Datasheet ADR225-KGD-CHIPS (Analog Devices) - 3
| 制造商 | Analog Devices |
| 描述 | High Temperature, Low Drift, Micropower, 2.5V Reference |
| 页数 / 页 | 6 / 3 — Known Good Die. ADR225-KGD-CHIPS. SPECIFICATIONS. Table 1. Parameter. … |
| 文件格式/大小 | PDF / 158 Kb |
| 文件语言 | 英语 |

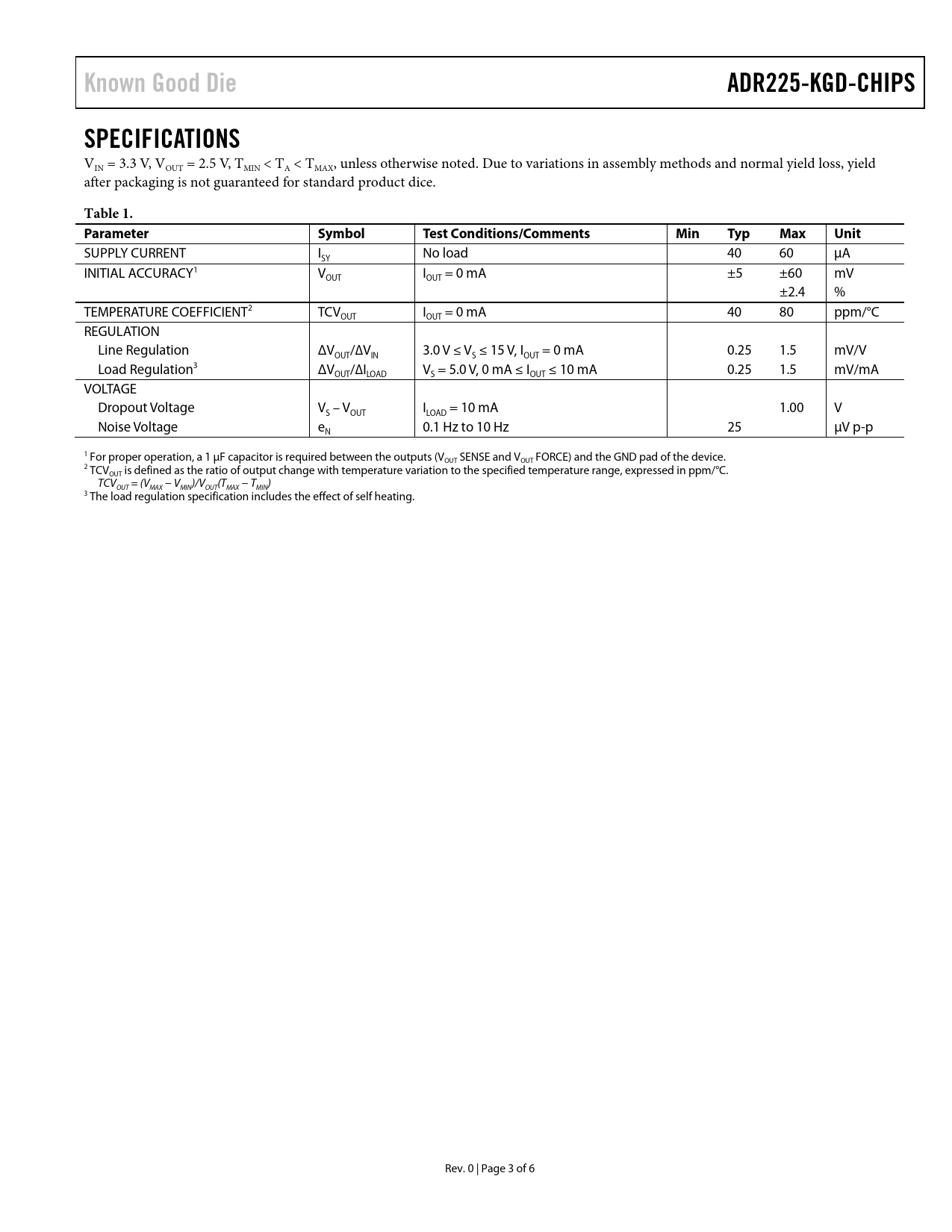

Known Good Die. ADR225-KGD-CHIPS. SPECIFICATIONS. Table 1. Parameter. Symbol. Test Conditions/Comments. Min. Typ. Max. Unit
该数据表的模型线
文件文字版本
Known Good Die ADR225-KGD-CHIPS SPECIFICATIONS
VIN = 3.3 V, VOUT = 2.5 V, TMIN < TA < TMAX, unless otherwise noted. Due to variations in assembly methods and normal yield loss, yield after packaging is not guaranteed for standard product dice.
Table 1. Parameter Symbol Test Conditions/Comments Min Typ Max Unit
SUPPLY CURRENT I No load 40 60 μA SY INITIAL ACCURACY1 V I = 0 mA ±5 ±60 mV OUT OUT ±2.4 % TEMPERATURE COEFFICIENT2 TCV I = 0 mA 40 80 ppm/°C OUT OUT REGULATION Line Regulation ΔV /∆V 3.0 V ≤ V ≤ 15 V, I = 0 mA 0.25 1.5 mV/V OUT IN S OUT Load Regulation3 ΔV /∆I V = 5.0 V, 0 mA ≤ I ≤ 10 mA 0.25 1.5 mV/mA OUT LOAD S OUT VOLTAGE Dropout Voltage V – V I = 10 mA 1.00 V S OUT LOAD Noise Voltage e 0.1 Hz to 10 Hz 25 μV p-p N 1 For proper operation, a 1 µF capacitor is required between the outputs (VOUT SENSE and VOUT FORCE) and the GND pad of the device. 2 TCVOUT is defined as the ratio of output change with temperature variation to the specified temperature range, expressed in ppm/°C. TCVOUT = (VMAX − VMIN)/VOUT(TMAX − TMIN) 3 The load regulation specification includes the effect of self heating. Rev. 0 | Page 3 of 6 Document Outline FEATURES APPLICATIONS METAL MASK DIE IMAGE GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS OUTLINE DIMENSIONS ORDERING GUIDE
