Datasheet LT6656 (Analog Devices)
| 制造商 | Analog Devices |
| 描述 | 1μA Precision Series Voltage Reference |
| 页数 / 页 | 24 / 1 — FEATURES. DESCRIPTION. Ultralow Supply Current: 850nA. Low Drift. A … |
| 文件格式/大小 | PDF / 604 Kb |
| 文件语言 | 英语 |
FEATURES. DESCRIPTION. Ultralow Supply Current: 850nA. Low Drift. A Grade: 10 ppm/°C Max. B Grade: 20 ppm/°C Max. High Accuracy
该数据表的模型线
- LT6656ACDC-1.25#PBF LT6656ACDC-1.25#TRMPBF LT6656ACDC-1.25#TRPBF LT6656ACDC-2.048#PBF LT6656ACDC-2.048#TRMPBF LT6656ACDC-2.048#TRPBF LT6656ACDC-2.5#PBF LT6656ACDC-2.5#TRMPBF LT6656ACDC-2.5#TRPBF LT6656ACDC-3#PBF LT6656ACDC-3#TRMPBF LT6656ACDC-3#TRPBF LT6656ACDC-3.3#PBF LT6656ACDC-3.3#TRMPBF LT6656ACDC-3.3#TRPBF LT6656ACDC-4.096#PBF LT6656ACDC-4.096#TRMPBF LT6656ACDC-4.096#TRPBF LT6656ACDC-5#PBF LT6656ACDC-5#TRMPBF LT6656ACDC-5#TRPBF LT6656ACS6-1.25#PBF LT6656ACS6-1.25#TRMPBF LT6656ACS6-1.25#TRPBF LT6656ACS6-2.048#PBF LT6656ACS6-2.048#TRMPBF LT6656ACS6-2.048#TRPBF LT6656ACS6-2.5#PBF LT6656ACS6-2.5#TRMPBF LT6656ACS6-2.5#TRPBF LT6656ACS6-3#PBF LT6656ACS6-3#TRMPBF LT6656ACS6-3#TRPBF LT6656ACS6-3.3#PBF LT6656ACS6-3.3#TRMPBF LT6656ACS6-3.3#TRPBF LT6656ACS6-4.096#PBF LT6656ACS6-4.096#TRMPBF LT6656ACS6-4.096#TRPBF LT6656ACS6-5#PBF LT6656ACS6-5#TRMPBF LT6656ACS6-5#TRPBF LT6656AIDC-1.25#PBF LT6656AIDC-1.25#TRMPBF LT6656AIDC-1.25#TRPBF LT6656AIDC-2.048#PBF LT6656AIDC-2.048#TRMPBF LT6656AIDC-2.048#TRPBF LT6656AIDC-2.5#PBF LT6656AIDC-2.5#TRMPBF LT6656AIDC-2.5#TRPBF LT6656AIDC-3#PBF LT6656AIDC-3#TRMPBF LT6656AIDC-3#TRPBF LT6656AIDC-3.3#PBF LT6656AIDC-3.3#TRMPBF LT6656AIDC-3.3#TRPBF LT6656AIDC-4.096#PBF LT6656AIDC-4.096#TRMPBF LT6656AIDC-4.096#TRPBF LT6656AIDC-5#PBF LT6656AIDC-5#TRMPBF LT6656AIDC-5#TRPBF LT6656AILS8-1.25#PBF LT6656AIS6-1.25#PBF LT6656AIS6-1.25#TRMPBF LT6656AIS6-1.25#TRPBF LT6656AIS6-2.048#PBF LT6656AIS6-2.048#TRMPBF LT6656AIS6-2.048#TRPBF LT6656AIS6-2.5#PBF LT6656AIS6-2.5#TRMPBF LT6656AIS6-2.5#TRPBF LT6656AIS6-3#PBF LT6656AIS6-3#TRMPBF LT6656AIS6-3#TRPBF LT6656AIS6-3.3#PBF LT6656AIS6-3.3#TRMPBF LT6656AIS6-3.3#TRPBF LT6656AIS6-4.096#PBF LT6656AIS6-4.096#TRMPBF LT6656AIS6-4.096#TRPBF LT6656AIS6-5#PBF LT6656AIS6-5#TRMPBF LT6656AIS6-5#TRPBF LT6656BCDC-1.25#PBF LT6656BCDC-1.25#TRMPBF LT6656BCDC-1.25#TRPBF LT6656BCDC-2.048#PBF LT6656BCDC-2.048#TRMPBF LT6656BCDC-2.048#TRPBF LT6656BCDC-2.5#PBF LT6656BCDC-2.5#TRMPBF LT6656BCDC-2.5#TRPBF LT6656BCDC-3#PBF LT6656BCDC-3#TRMPBF LT6656BCDC-3#TRPBF LT6656BCDC-3.3#PBF LT6656BCDC-3.3#TRMPBF LT6656BCDC-3.3#TRPBF LT6656BCDC-4.096#PBF LT6656BCDC-4.096#TRMPBF LT6656BCDC-4.096#TRPBF LT6656BCDC-5#PBF LT6656BCDC-5#TRMPBF LT6656BCDC-5#TRPBF LT6656BCS6-1.25#PBF LT6656BCS6-1.25#TRMPBF LT6656BCS6-1.25#TRPBF LT6656BCS6-2.048#PBF LT6656BCS6-2.048#TRMPBF LT6656BCS6-2.048#TRPBF LT6656BCS6-2.5#PBF LT6656BCS6-2.5#TRMPBF LT6656BCS6-2.5#TRPBF LT6656BCS6-3#PBF LT6656BCS6-3#TRMPBF LT6656BCS6-3#TRPBF LT6656BCS6-3.3#PBF LT6656BCS6-3.3#TRMPBF LT6656BCS6-3.3#TRPBF LT6656BCS6-4.096#PBF LT6656BCS6-4.096#TRMPBF LT6656BCS6-4.096#TRPBF LT6656BCS6-5#PBF LT6656BCS6-5#TRMPBF LT6656BCS6-5#TRPBF LT6656BIDC-1.25#PBF LT6656BIDC-1.25#TRMPBF LT6656BIDC-1.25#TRPBF LT6656BIDC-2.048#PBF LT6656BIDC-2.048#TRMPBF LT6656BIDC-2.048#TRPBF LT6656BIDC-2.5#PBF LT6656BIDC-2.5#TRMPBF LT6656BIDC-2.5#TRPBF LT6656BIDC-3#PBF LT6656BIDC-3#TRMPBF LT6656BIDC-3#TRPBF LT6656BIDC-3.3#PBF LT6656BIDC-3.3#TRMPBF LT6656BIDC-3.3#TRPBF LT6656BIDC-4.096#PBF LT6656BIDC-4.096#TRMPBF LT6656BIDC-4.096#TRPBF LT6656BIDC-5#PBF LT6656BIDC-5#TRMPBF LT6656BIDC-5#TRPBF LT6656BILS8-1.25#PBF LT6656BIS6-1.25#PBF LT6656BIS6-1.25#TRMPBF LT6656BIS6-1.25#TRPBF LT6656BIS6-2.048#PBF LT6656BIS6-2.048#TRMPBF LT6656BIS6-2.048#TRPBF LT6656BIS6-2.5#PBF LT6656BIS6-2.5#TRMPBF LT6656BIS6-2.5#TRPBF LT6656BIS6-3#PBF LT6656BIS6-3#TRMPBF LT6656BIS6-3#TRPBF LT6656BIS6-3.3#PBF LT6656BIS6-3.3#TRMPBF LT6656BIS6-3.3#TRPBF LT6656BIS6-4.096#PBF LT6656BIS6-4.096#TRMPBF LT6656BIS6-4.096#TRPBF LT6656BIS6-5#PBF LT6656BIS6-5#TRMPBF LT6656BIS6-5#TRPBF
文件文字版本

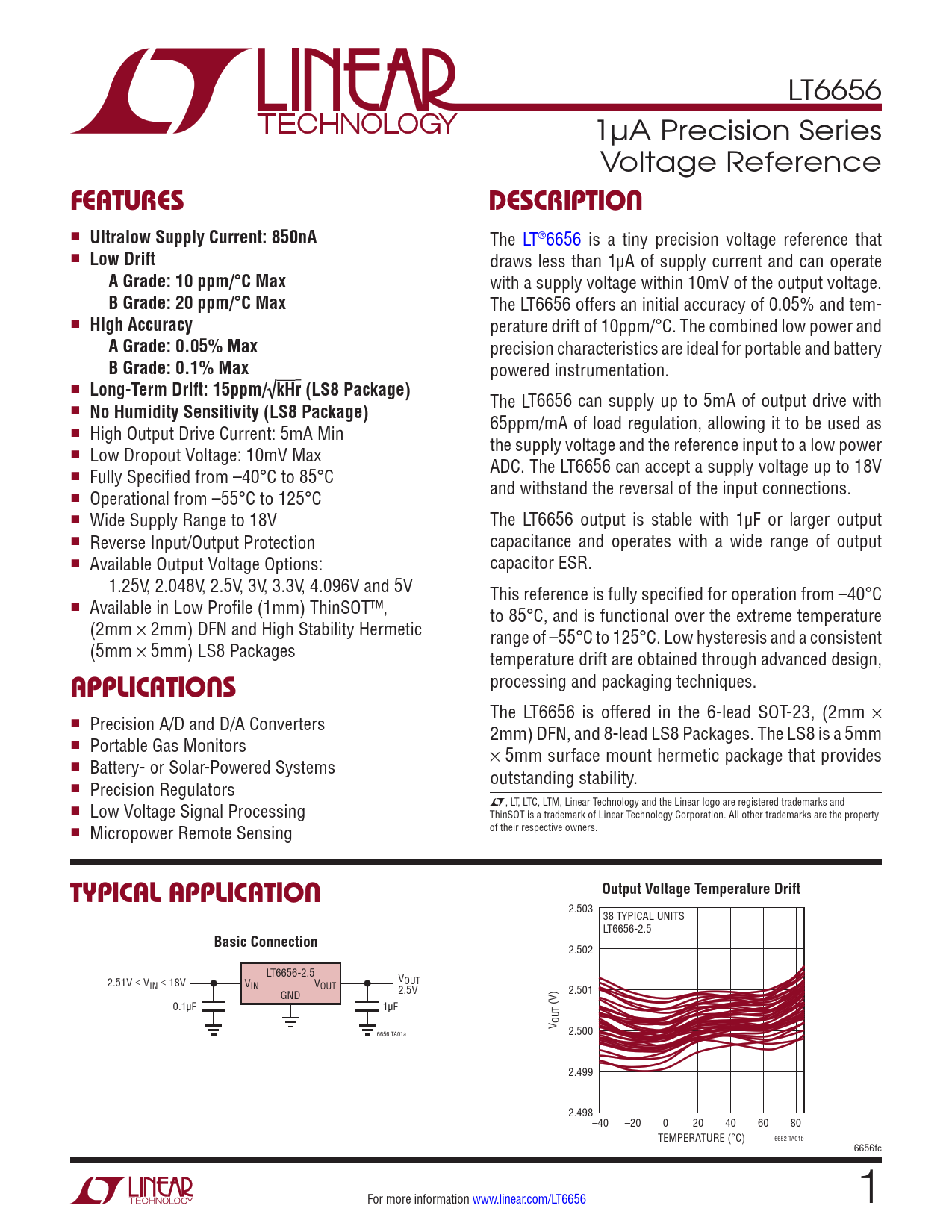

LT6656 1µA Precision Series Voltage Reference
FEATURES DESCRIPTION
n
Ultralow Supply Current: 850nA
The LT®6656 is a tiny precision voltage reference that n
Low Drift
draws less than 1µA of supply current and can operate
A Grade: 10 ppm/°C Max
with a supply voltage within 10mV of the output voltage.
B Grade: 20 ppm/°C Max
The LT6656 offers an initial accuracy of 0.05% and tem- n
High Accuracy
perature drift of 10ppm/°C. The combined low power and
A Grade: 0.05% Max
precision characteristics are ideal for portable and battery
B Grade: 0.1% Max
powered instrumentation. n
Long-Term Drift: 15ppm/√kHr (LS8 Package)
The LT6656 can supply up to 5mA of output drive with n
No Humidity Sensitivity (LS8 Package)
65ppm/mA of load regulation, allowing it to be used as n High Output Drive Current: 5mA Min the supply voltage and the reference input to a low power n Low Dropout Voltage: 10mV Max ADC. The LT6656 can accept a supply voltage up to 18V n Fully Specified from –40°C to 85°C and withstand the reversal of the input connections. n Operational from –55°C to 125°C n Wide Supply Range to 18V The LT6656 output is stable with 1µF or larger output n Reverse Input/Output Protection capacitance and operates with a wide range of output n Available Output Voltage Options: capacitor ESR. 1.25V, 2.048V, 2.5V, 3V, 3.3V, 4.096V and 5V This reference is fully specified for operation from –40°C n Available in Low Profile (1mm) ThinSOT™, to 85°C, and is functional over the extreme temperature (2mm × 2mm) DFN and High Stability Hermetic range of –55°C to 125°C. Low hysteresis and a consistent (5mm × 5mm) LS8 Packages temperature drift are obtained through advanced design, processing and packaging techniques.
APPLICATIONS
The LT6656 is offered in the 6-lead SOT-23, (2mm × n Precision A/D and D/A Converters 2mm) DFN, and 8-lead LS8 Packages. The LS8 is a 5mm n Portable Gas Monitors × 5mm surface mount hermetic package that provides n Battery- or Solar-Powered Systems outstanding stability. n Precision Regulators L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks and n Low Voltage Signal Processing ThinSOT is a trademark of Linear Technology Corporation. All other trademarks are the property of their respective owners. n Micropower Remote Sensing
TYPICAL APPLICATION Output Voltage Temperature Drift
2.503 38 TYPICAL UNITS LT6656-2.5
Basic Connection
2.502 LT6656-2.5 2.51V ≤ V V IN ≤ 18V OUT VIN VOUT 2.5V 2.501 GND (V) 0.1µF 1µF V OUT 6656 TA01a 2.500 2.499 2.498–40 –20 0 20 40 60 80 TEMPERATURE (°C) 6652 TA01b 6656fc For more information www.linear.com/LT6656 1 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Available Options Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
