Datasheet LTC6652 (Analog Devices) - 3
| 制造商 | Analog Devices |
| 描述 | Precision Low Drift Low Noise Buffered Reference |
| 页数 / 页 | 20 / 3 — orDer inForMation. LEAD FREE FINISH. PART MARKING*. PACKAGE DESCRIPTION. … |
| 文件格式/大小 | PDF / 561 Kb |
| 文件语言 | 英语 |
orDer inForMation. LEAD FREE FINISH. PART MARKING*. PACKAGE DESCRIPTION. SPECIFIED TEMPERATURE RANGE. available options
该数据表的模型线
- LTC6652AHLS8-2.5#PBF LTC6652AHLS8-4.096#PBF LTC6652AHLS8-5#PBF LTC6652AHMS8-1.25#PBF LTC6652AHMS8-1.25#TRPBF LTC6652AHMS8-2.048#PBF LTC6652AHMS8-2.048#TRPBF LTC6652AHMS8-2.5#PBF LTC6652AHMS8-2.5#TRPBF LTC6652AHMS8-3#PBF LTC6652AHMS8-3#TRPBF LTC6652AHMS8-3.3#PBF LTC6652AHMS8-3.3#TRPBF LTC6652AHMS8-4.096#PBF LTC6652AHMS8-4.096#TRPBF LTC6652AHMS8-5#PBF LTC6652AHMS8-5#TRPBF LTC6652BHLS8-2.5#PBF LTC6652BHLS8-4.096#PBF LTC6652BHLS8-5#PBF LTC6652BHMS8-1.25#PBF LTC6652BHMS8-1.25#TRPBF LTC6652BHMS8-2.048#PBF LTC6652BHMS8-2.048#TRPBF LTC6652BHMS8-2.5#PBF LTC6652BHMS8-2.5#TRPBF LTC6652BHMS8-3#PBF LTC6652BHMS8-3#TRPBF LTC6652BHMS8-3.3#PBF LTC6652BHMS8-3.3#TRPBF LTC6652BHMS8-4.096#PBF LTC6652BHMS8-4.096#TRPBF LTC6652BHMS8-5#PBF LTC6652BHMS8-5#TRPBF
文件文字版本

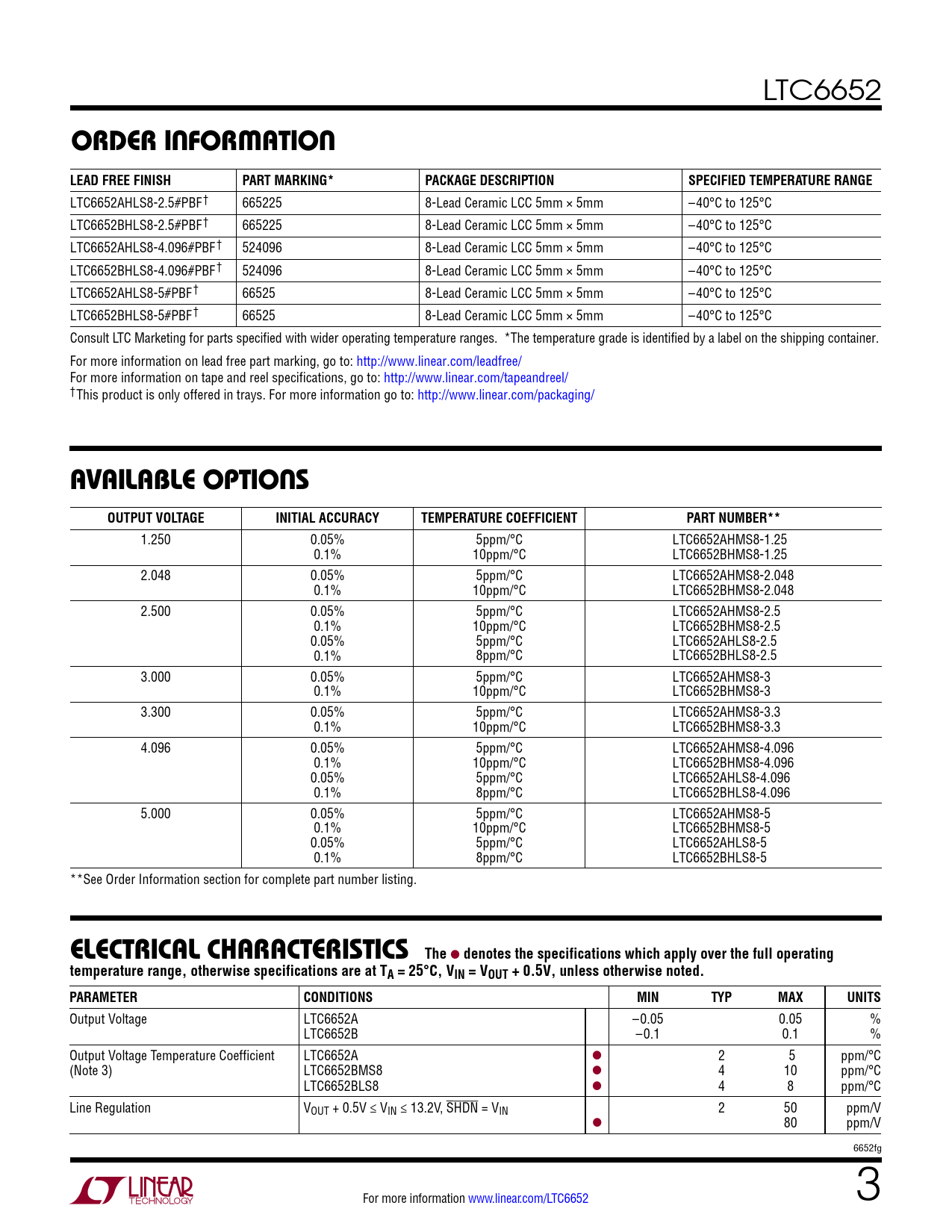

LTC6652
orDer inForMation LEAD FREE FINISH PART MARKING* PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LTC6652AHLS8-2.5#PBF† 665225 8-Lead Ceramic LCC 5mm × 5mm –40°C to 125°C LTC6652BHLS8-2.5#PBF† 665225 8-Lead Ceramic LCC 5mm × 5mm –40°C to 125°C LTC6652AHLS8-4.096#PBF† 524096 8-Lead Ceramic LCC 5mm × 5mm –40°C to 125°C LTC6652BHLS8-4.096#PBF† 524096 8-Lead Ceramic LCC 5mm × 5mm –40°C to 125°C LTC6652AHLS8-5#PBF† 66525 8-Lead Ceramic LCC 5mm × 5mm –40°C to 125°C LTC6652BHLS8-5#PBF† 66525 8-Lead Ceramic LCC 5mm × 5mm –40°C to 125°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ †This product is only offered in trays. For more information go to: http://www.linear.com/packaging/
available options OUTPUT VOLTAGE INITIAL ACCURACY TEMPERATURE COEFFICIENT PART NUMBER**
1.250 0.05% 5ppm/°C LTC6652AHMS8-1.25 0.1% 10ppm/°C LTC6652BHMS8-1.25 2.048 0.05% 5ppm/°C LTC6652AHMS8-2.048 0.1% 10ppm/°C LTC6652BHMS8-2.048 2.500 0.05% 5ppm/°C LTC6652AHMS8-2.5 0.1% 10ppm/°C LTC6652BHMS8-2.5 0.05% 5ppm/°C LTC6652AHLS8-2.5 0.1% 8ppm/°C LTC6652BHLS8-2.5 3.000 0.05% 5ppm/°C LTC6652AHMS8-3 0.1% 10ppm/°C LTC6652BHMS8-3 3.300 0.05% 5ppm/°C LTC6652AHMS8-3.3 0.1% 10ppm/°C LTC6652BHMS8-3.3 4.096 0.05% 5ppm/°C LTC6652AHMS8-4.096 0.1% 10ppm/°C LTC6652BHMS8-4.096 0.05% 5ppm/°C LTC6652AHLS8-4.096 0.1% 8ppm/°C LTC6652BHLS8-4.096 5.000 0.05% 5ppm/°C LTC6652AHMS8-5 0.1% 10ppm/°C LTC6652BHMS8-5 0.05% 5ppm/°C LTC6652AHLS8-5 0.1% 8ppm/°C LTC6652BHLS8-5 **See Order Information section for complete part number listing.
e lectrical characteristics The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C, VIN = VOUT + 0.5V, unless otherwise noted. PARAMETER CONDITIONS MIN TYP MAX UNITS
Output Voltage LTC6652A –0.05 0.05 % LTC6652B –0.1 0.1 % Output Voltage Temperature Coefficient LTC6652A l 2 5 ppm/°C (Note 3) LTC6652BMS8 l 4 10 ppm/°C LTC6652BLS8 l 4 8 ppm/°C Line Regulation VOUT + 0.5V ≤ VIN ≤ 13.2V, SHDN = VIN 2 50 ppm/V l 80 ppm/V 6652fg For more information www.linear.com/LTC6652 3 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Available Options Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
