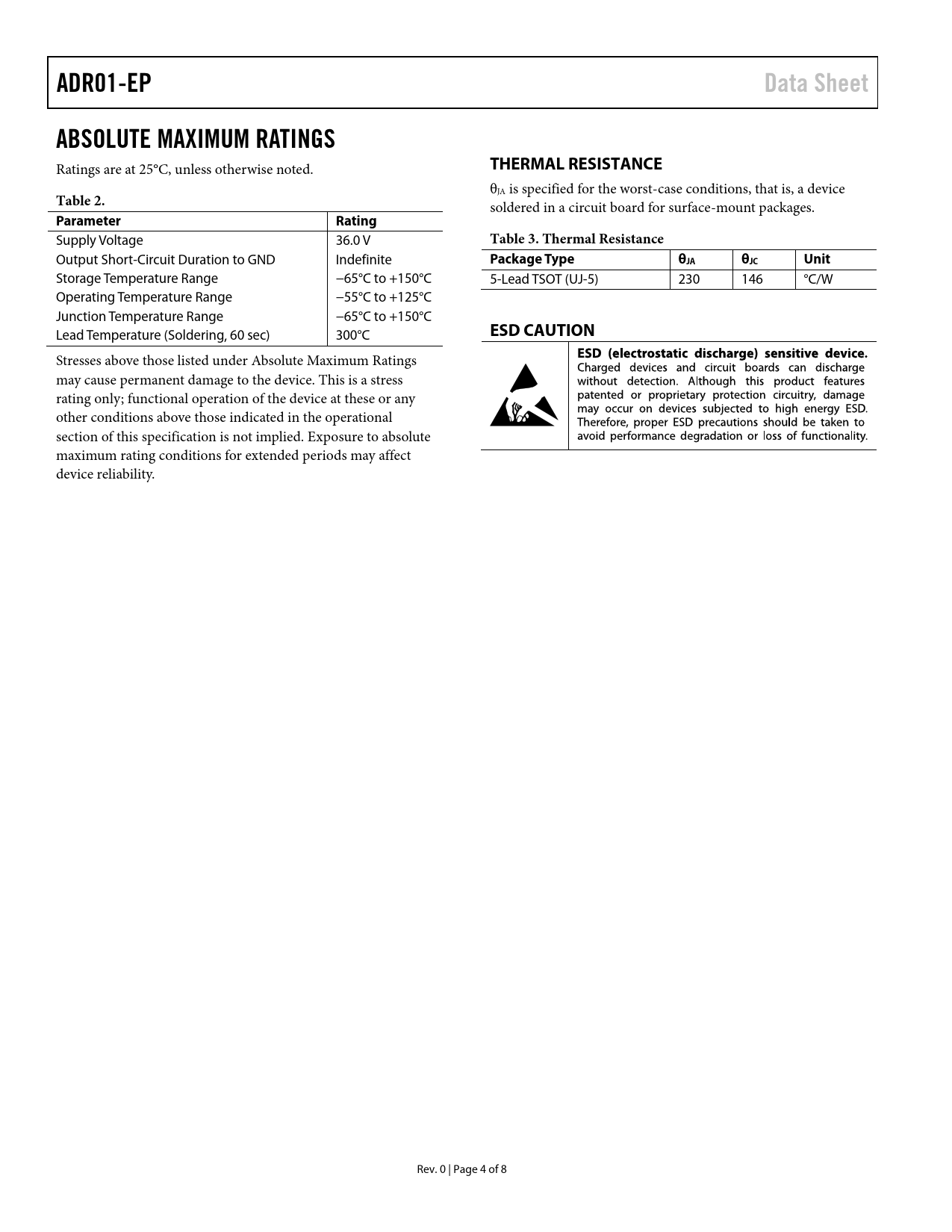

ADR01-EP Data Sheet ABSOLUTE MAXIMUM RATINGS
Ratings are at 25°C, unless otherwise noted.
THERMAL RESISTANCE
θ
Table 2.
JA is specified for the worst-case conditions, that is, a device soldered in a circuit board for surface-mount packages.
Parameter Rating
Supply Voltage 36.0 V
Table 3. Thermal Resistance
Output Short-Circuit Duration to GND Indefinite
Package Type θJA θJC Unit
Storage Temperature Range −65°C to +150°C 5-Lead TSOT (UJ-5) 230 146 °C/W Operating Temperature Range −55°C to +125°C Junction Temperature Range −65°C to +150°C Lead Temperature (Soldering, 60 sec) 300°C
ESD CAUTION
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Rev. 0 | Page 4 of 8 Document Outline Features Enhanced Product Features Applications Pin Configuration General Description Revision History Specifications Electrical Characteristics Absolute Maximum Ratings Thermal Resistance ESD Caution Typical Performance Characteristics Outline Dimensions Ordering Guide
