Datasheet AD8352 (Analog Devices) - 6

制造商Analog Devices
描述2 GHz Ultralow Distortion Differential RF/IF Amplifier
页数 / 页19 / 6 — AD8352. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 3. ESD CAUTION. …
修订版C
文件格式/大小PDF / 464 Kb
文件语言英语

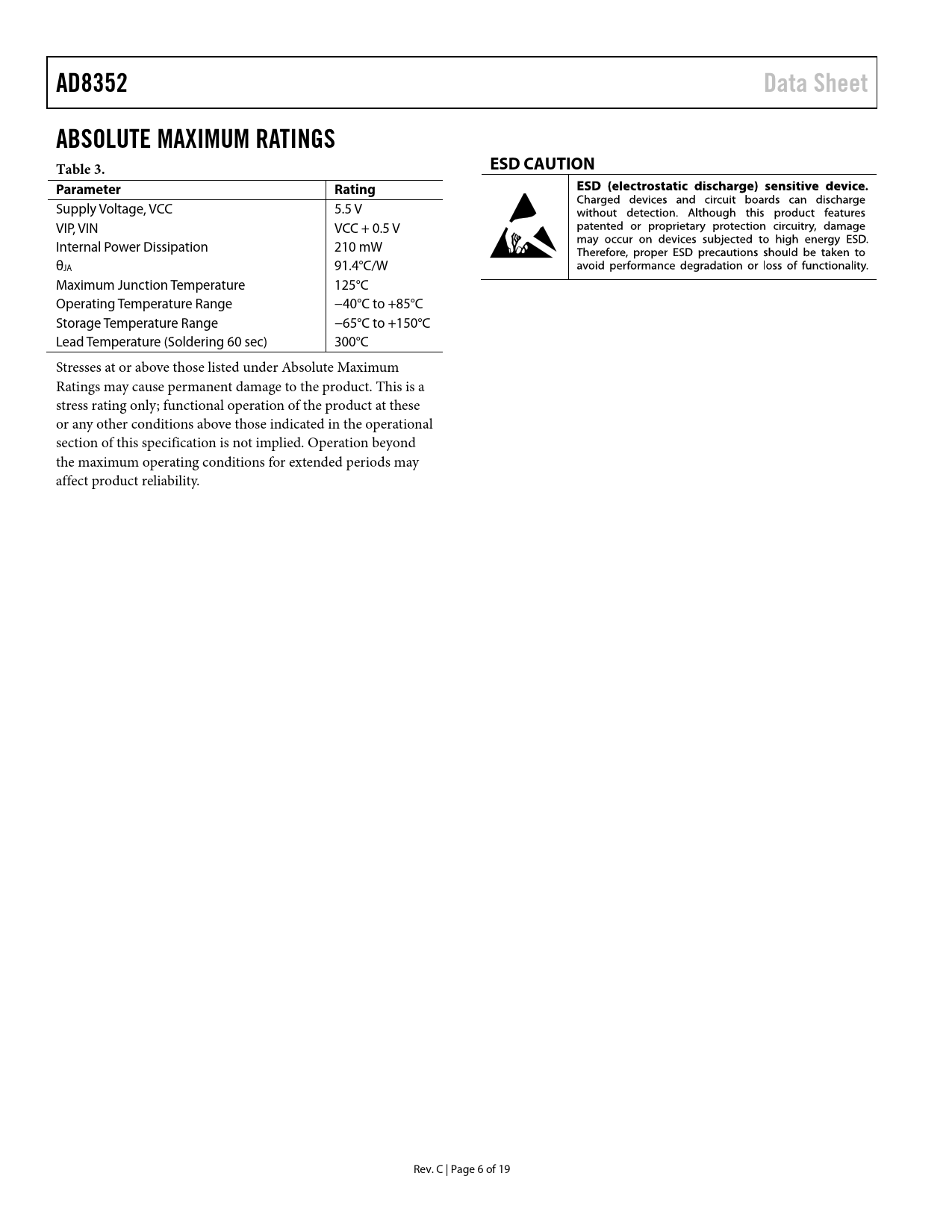

AD8352. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 3. ESD CAUTION. Parameter. Rating

AD8352 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 3 ESD CAUTION Parameter Rating

该数据表的模型线

文件文字版本

AD8352 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 3. ESD CAUTION Parameter Rating
Supply Voltage, VCC 5.5 V VIP, VIN VCC + 0.5 V Internal Power Dissipation 210 mW θJA 91.4°C/W Maximum Junction Temperature 125°C Operating Temperature Range −40°C to +85°C Storage Temperature Range −65°C to +150°C Lead Temperature (Soldering 60 sec) 300°C Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. Rev. C | Page 6 of 19 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS NOISE DISTORTION SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS INFORMATION GAIN AND DISTORTION ADJUSTMENT (DIFFERENTIAL INPUT) SINGLE-ENDED INPUT OPERATION NARROW-BAND, THIRD-ORDER INTERMODULATION CANCELLATION HIGH PERFORMANCE ADC DRIVING LAYOUT AND TRANSMISSION LINE EFFECTS EVALUATION BOARD EVALUATION BOARD LOADING SCHEMES SOLDERING INFORMATION EVALUATION BOARD SCHEMATICS OUTLINE DIMENSIONS ORDERING GUIDE
