AD8369. SPECIFICATIONS (Continued). Parameter. Conditions. Min. Typ. Max. Unit
该数据表的模型线
文件文字版本

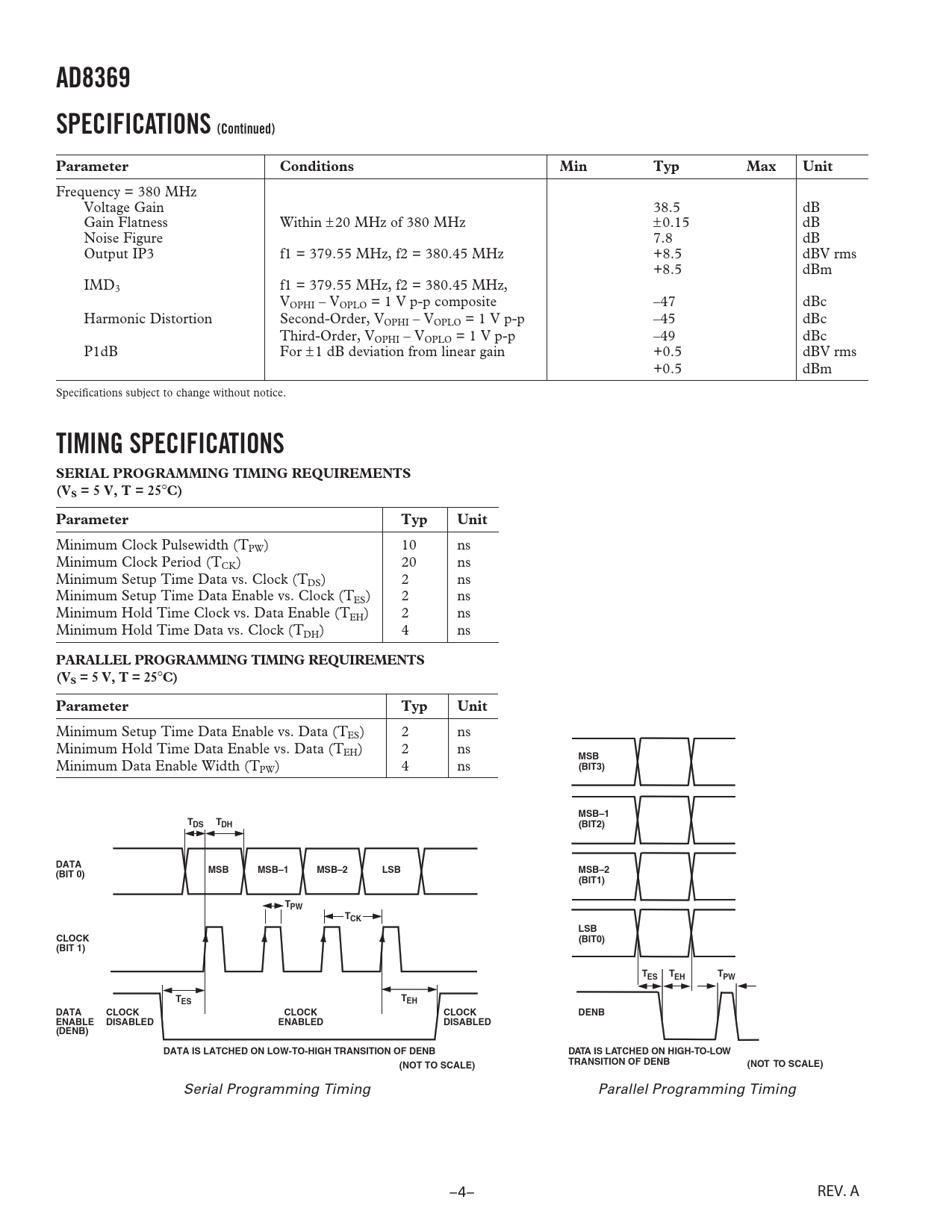

AD8369 SPECIFICATIONS (Continued) Parameter Conditions Min Typ Max Unit
Frequency = 380 MHz Voltage Gain 38.5 dB Gain Flatness Within ± 20 MHz of 380 MHz ±0.15 dB Noise Figure 7.8 dB Output IP3 f1 = 379.55 MHz, f2 = 380.45 MHz +8.5 dBV rms +8.5 dBm IMD3 f1 = 379.55 MHz, f2 = 380.45 MHz, VOPHI – VOPLO = 1 V p-p composite –47 dBc Harmonic Distortion Second-Order, VOPHI – VOPLO = 1 V p-p –45 dBc Third-Order, VOPHI – VOPLO = 1 V p-p –49 dBc P1dB For ± 1 dB deviation from linear gain +0.5 dBV rms +0.5 dBm Specifications subject to change without notice.
TIMING SPECIFICATIONS SERIAL PROGRAMMING TIMING REQUIREMENTS (VS = 5 V, T = 25
r
C) Parameter Typ Unit
Minimum Clock Pulsewidth (TPW) 10 ns Minimum Clock Period (TCK) 20 ns Minimum Setup Time Data vs. Clock (TDS) 2 ns Minimum Setup Time Data Enable vs. Clock (TES) 2 ns Minimum Hold Time Clock vs. Data Enable (TEH) 2 ns Minimum Hold Time Data vs. Clock (TDH) 4 ns
PARALLEL PROGRAMMING TIMING REQUIREMENTS (VS = 5 V, T = 25
r
C) Parameter Typ Unit
Minimum Setup Time Data Enable vs. Data (TES) 2 ns Minimum Hold Time Data Enable vs. Data (TEH) 2 ns
MSB
Minimum Data Enable Width (TPW) 4 ns
(BIT3) MSB–1 T T DS DH (BIT2) DATA MSB MSB–1 MSB–2 LSB MSB–2 (BIT 0) (BIT1) TPW TCK LSB CLOCK (BIT0) (BIT 1) TES TEH TPW T T ES EH DATA CLOCK CLOCK CLOCK DENB ENABLE DISABLED ENABLED DISABLED (DENB) DATA IS LATCHED ON LOW-TO-HIGH TRANSITION OF DENB DATA IS LATCHED ON HIGH-TO-LOW (NOT TO SCALE) TRANSITION OF DENB (NOT TO SCALE)
Serial Programming Timing Parallel Programming Timing –4– REV. A Document Outline Features Applications Functional Block Diagram Product Description Specifications Timing Specifications Absolute Maximum Ratings Pin Configuration Typical Performance Characteristics Theroy of Operation Input Attentuator and Output 3 dB Step Fixed Gain Amplifier Input and Output Interfaces Noise and Distortion Offset Control Loop Digital Control Basic Connections Input-Output Interface Reducing Gain Sensitivity to Input and Output Impedance Variation Operation from a Single-Sided Source Interfacing to an ADC PCB Layout Considerations Evaluation Board Evaluation Board Software Appendix Characterization Equipment Definitions of Selected Parameters Composite Waveform Assumption Outline Dimensions Ordering Guide Revision History
