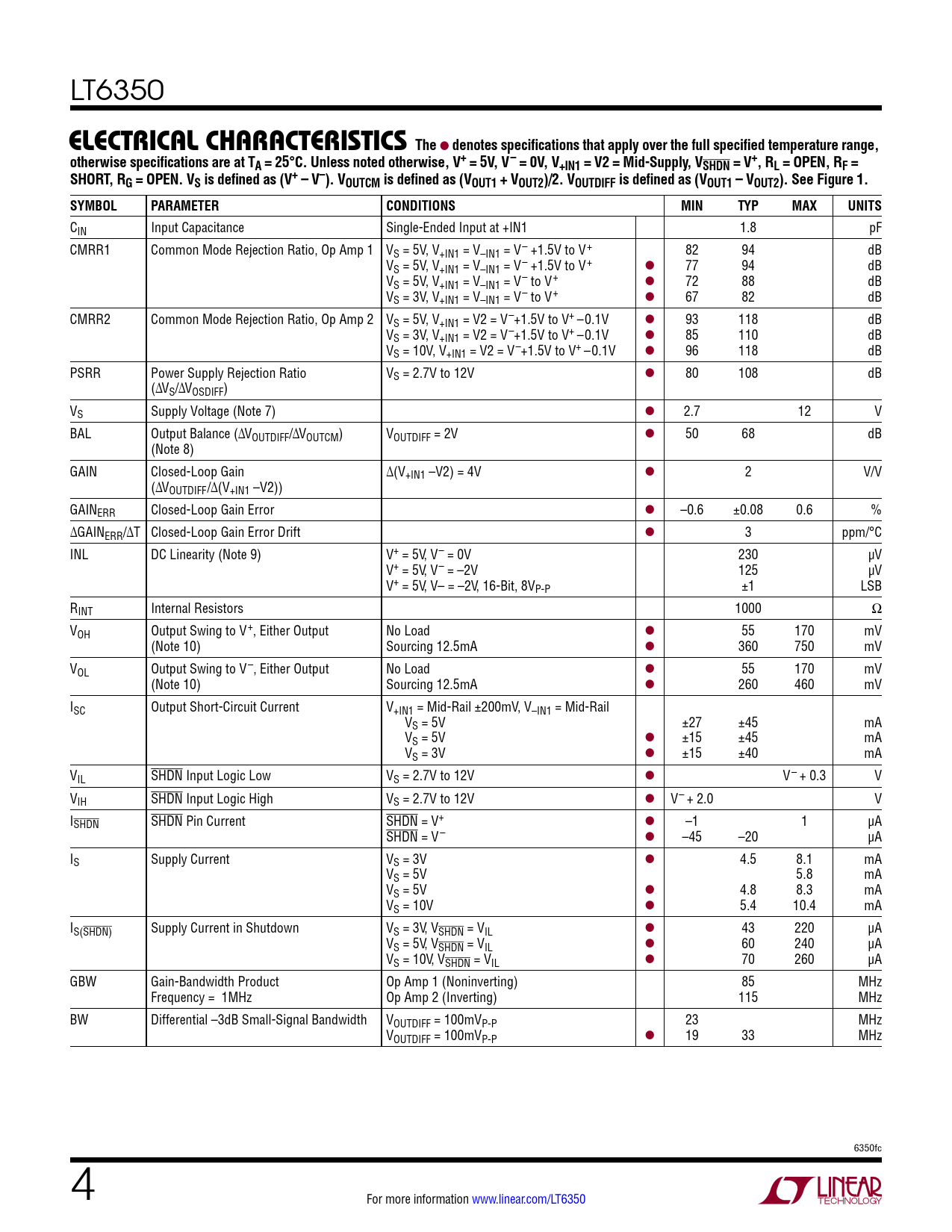

LT6350
elecTrical characTerisTics The
l
denotes specifications that apply over the full specified temperature range, otherwise specifications are at TA = 25°C. Unless noted otherwise, V+ = 5V, V– = 0V, V+IN1 = V2 = Mid-Supply, VSHDN = V+, RL = OPEN, RF = SHORT, RG = OPEN. VS is defined as (V+ – V–). VOUTCM is defined as (VOUT1 + VOUT2)/2. VOUTDIFF is defined as (VOUT1 – VOUT2). See Figure 1. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
CIN Input Capacitance Single-Ended Input at +IN1 1.8 pF CMRR1 Common Mode Rejection Ratio, Op Amp 1 VS = 5V, V+IN1 = V–IN1 = V– +1.5V to V+ 82 94 dB VS = 5V, V+IN1 = V–IN1 = V– +1.5V to V+ l 77 94 dB VS = 5V, V+IN1 = V–IN1 = V– to V+ l 72 88 dB VS = 3V, V+IN1 = V–IN1 = V– to V+ l 67 82 dB CMRR2 Common Mode Rejection Ratio, Op Amp 2 VS = 5V, V+IN1 = V2 = V–+1.5V to V+ –0.1V l 93 118 dB VS = 3V, V+IN1 = V2 = V–+1.5V to V+ –0.1V l 85 110 dB VS = 10V, V+IN1 = V2 = V–+1.5V to V+ –0.1V l 96 118 dB PSRR Power Supply Rejection Ratio VS = 2.7V to 12V l 80 108 dB (∆VS/∆VOSDIFF) VS Supply Voltage (Note 7) l 2.7 12 V BAL Output Balance (∆VOUTDIFF/∆VOUTCM) VOUTDIFF = 2V l 50 68 dB (Note 8) GAIN Closed-Loop Gain ∆(V+IN1 –V2) = 4V l 2 V/V (∆VOUTDIFF/∆(V+IN1 –V2)) GAINERR Closed-Loop Gain Error l –0.6 ±0.08 0.6 % ∆GAINERR/∆T Closed-Loop Gain Error Drift l 3 ppm/°C INL DC Linearity (Note 9) V+ = 5V, V– = 0V 230 µV V+ = 5V, V– = –2V 125 µV V+ = 5V, V– = –2V, 16-Bit, 8VP-P ±1 LSB RINT Internal Resistors 1000 Ω VOH Output Swing to V+, Either Output No Load l 55 170 mV (Note 10) Sourcing 12.5mA l 360 750 mV VOL Output Swing to V–, Either Output No Load l 55 170 mV (Note 10) Sourcing 12.5mA l 260 460 mV ISC Output Short-Circuit Current V+IN1 = Mid-Rail ±200mV, V–IN1 = Mid-Rail VS = 5V ±27 ±45 mA VS = 5V l ±15 ±45 mA VS = 3V l ±15 ±40 mA VIL SHDN Input Logic Low VS = 2.7V to 12V l V– + 0.3 V VIH SHDN Input Logic High VS = 2.7V to 12V l V– + 2.0 V ISHDN SHDN Pin Current SHDN = V+ l –1 1 µA SHDN = V– l –45 –20 µA IS Supply Current VS = 3V l 4.5 8.1 mA VS = 5V 5.8 mA VS = 5V l 4.8 8.3 mA VS = 10V l 5.4 10.4 mA IS(SHDN) Supply Current in Shutdown VS = 3V, VSHDN = VIL l 43 220 µA VS = 5V, VSHDN = VIL l 60 240 µA VS = 10V, VSHDN = VIL l 70 260 µA GBW Gain-Bandwidth Product Op Amp 1 (Noninverting) 85 MHz Frequency = 1MHz Op Amp 2 (Inverting) 115 MHz BW Differential –3dB Small-Signal Bandwidth VOUTDIFF = 100mVP-P 23 MHz VOUTDIFF = 100mVP-P l 19 33 MHz 6350fc 4 For more information www.linear.com/LT6350 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration order information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram DC Test Circuit Operation Applications Information Typical Application Package Description Revision History Typical Application Related Parts
