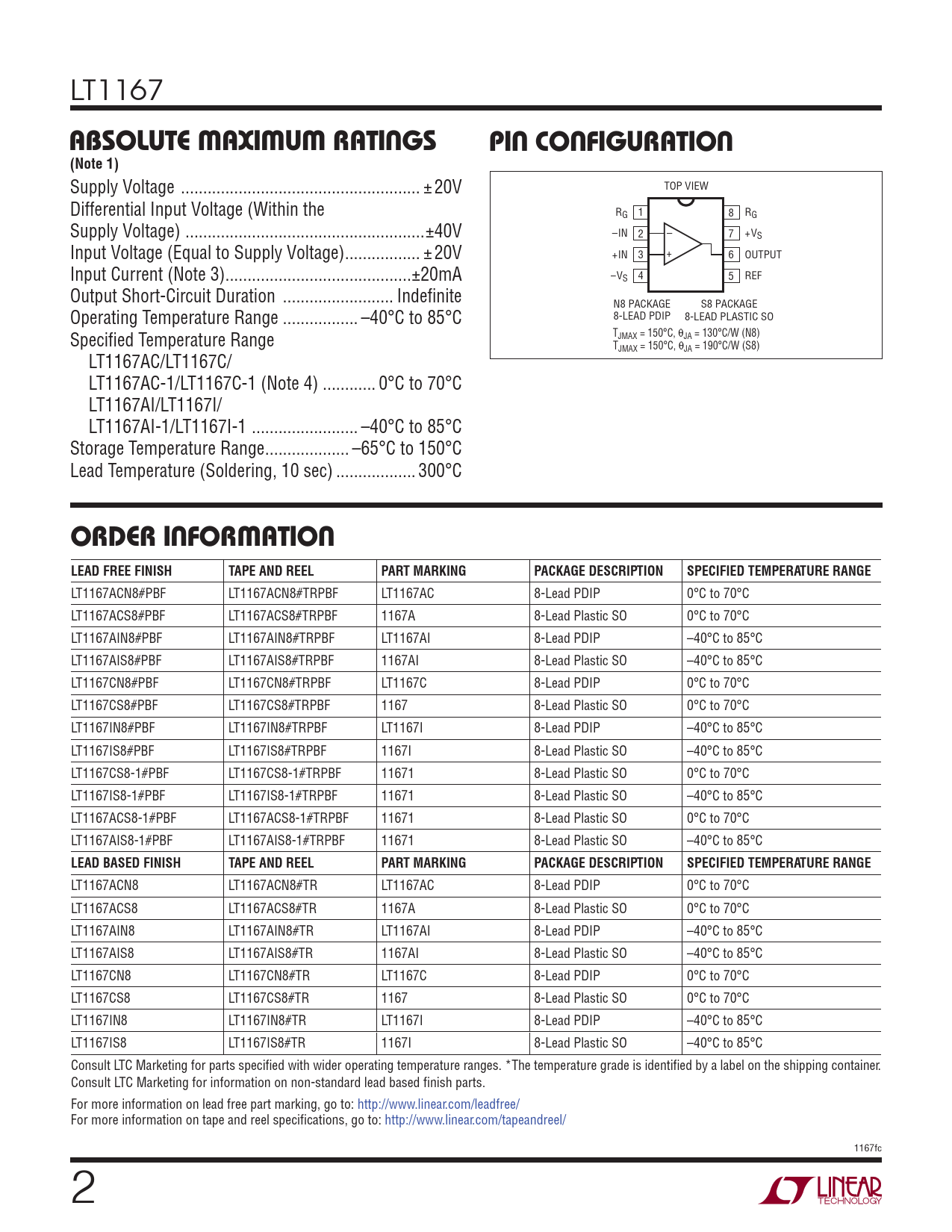

LT1167
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
Supply Voltage .. ± 20V TOP VIEW Differential Input Voltage (Within the RG 1 8 RG Supply Voltage) ..±40V –IN 2 – 7 +VS Input Voltage (Equal to Supply Voltage) ... ± 20V +IN 3 + 6 OUTPUT Input Current (Note 3) ..±20mA –VS 4 5 REF Output Short-Circuit Duration ... Indefi nite N8 PACKAGE S8 PACKAGE Operating Temperature Range ... –40°C to 85°C 8-LEAD PDIP 8-LEAD PLASTIC SO Specifi ed Temperature Range TJMAX = 150°C, θJA = 130°C/W (N8) TJMAX = 150°C, θJA = 190°C/W (S8) LT1167AC/LT1167C/ LT1167AC-1/LT1167C-1 (Note 4) .. 0°C to 70°C LT1167AI/LT1167I/ LT1167AI-1/LT1167I-1 .. –40°C to 85°C Storage Temperature Range ... –65°C to 150°C Lead Temperature (Soldering, 10 sec) .. 300°C
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LT1167ACN8#PBF LT1167ACN8#TRPBF LT1167AC 8-Lead PDIP 0°C to 70°C LT1167ACS8#PBF LT1167ACS8#TRPBF 1167A 8-Lead Plastic SO 0°C to 70°C LT1167AIN8#PBF LT1167AIN8#TRPBF LT1167AI 8-Lead PDIP –40°C to 85°C LT1167AIS8#PBF LT1167AIS8#TRPBF 1167AI 8-Lead Plastic SO –40°C to 85°C LT1167CN8#PBF LT1167CN8#TRPBF LT1167C 8-Lead PDIP 0°C to 70°C LT1167CS8#PBF LT1167CS8#TRPBF 1167 8-Lead Plastic SO 0°C to 70°C LT1167IN8#PBF LT1167IN8#TRPBF LT1167I 8-Lead PDIP –40°C to 85°C LT1167IS8#PBF LT1167IS8#TRPBF 1167I 8-Lead Plastic SO –40°C to 85°C LT1167CS8-1#PBF LT1167CS8-1#TRPBF 11671 8-Lead Plastic SO 0°C to 70°C LT1167IS8-1#PBF LT1167IS8-1#TRPBF 11671 8-Lead Plastic SO –40°C to 85°C LT1167ACS8-1#PBF LT1167ACS8-1#TRPBF 11671 8-Lead Plastic SO 0°C to 70°C LT1167AIS8-1#PBF LT1167AIS8-1#TRPBF 11671 8-Lead Plastic SO –40°C to 85°C
LEAD BASED FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LT1167ACN8 LT1167ACN8#TR LT1167AC 8-Lead PDIP 0°C to 70°C LT1167ACS8 LT1167ACS8#TR 1167A 8-Lead Plastic SO 0°C to 70°C LT1167AIN8 LT1167AIN8#TR LT1167AI 8-Lead PDIP –40°C to 85°C LT1167AIS8 LT1167AIS8#TR 1167AI 8-Lead Plastic SO –40°C to 85°C LT1167CN8 LT1167CN8#TR LT1167C 8-Lead PDIP 0°C to 70°C LT1167CS8 LT1167CS8#TR 1167 8-Lead Plastic SO 0°C to 70°C LT1167IN8 LT1167IN8#TR LT1167I 8-Lead PDIP –40°C to 85°C LT1167IS8 LT1167IS8#TR 1167I 8-Lead Plastic SO –40°C to 85°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Consult LTC Marketing for information on non-standard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 1167fc 2 Document Outline FEATURES DESCRIPTION APPLICATIONS TYPICAL APPLICATION ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION ORDER INFORMATION ELECTRICAL CHARACTERISTICS TYPICAL PERFORMANCE CHARACTERISTICS BLOCK DIAGRAM THEORY OF OPERATION APPLICATIONS INFORMATION TYPICAL APPLICATION PACKAGE DESCRIPTION REVISION HISTORY TYPICAL APPLICATION RELATED PARTS
