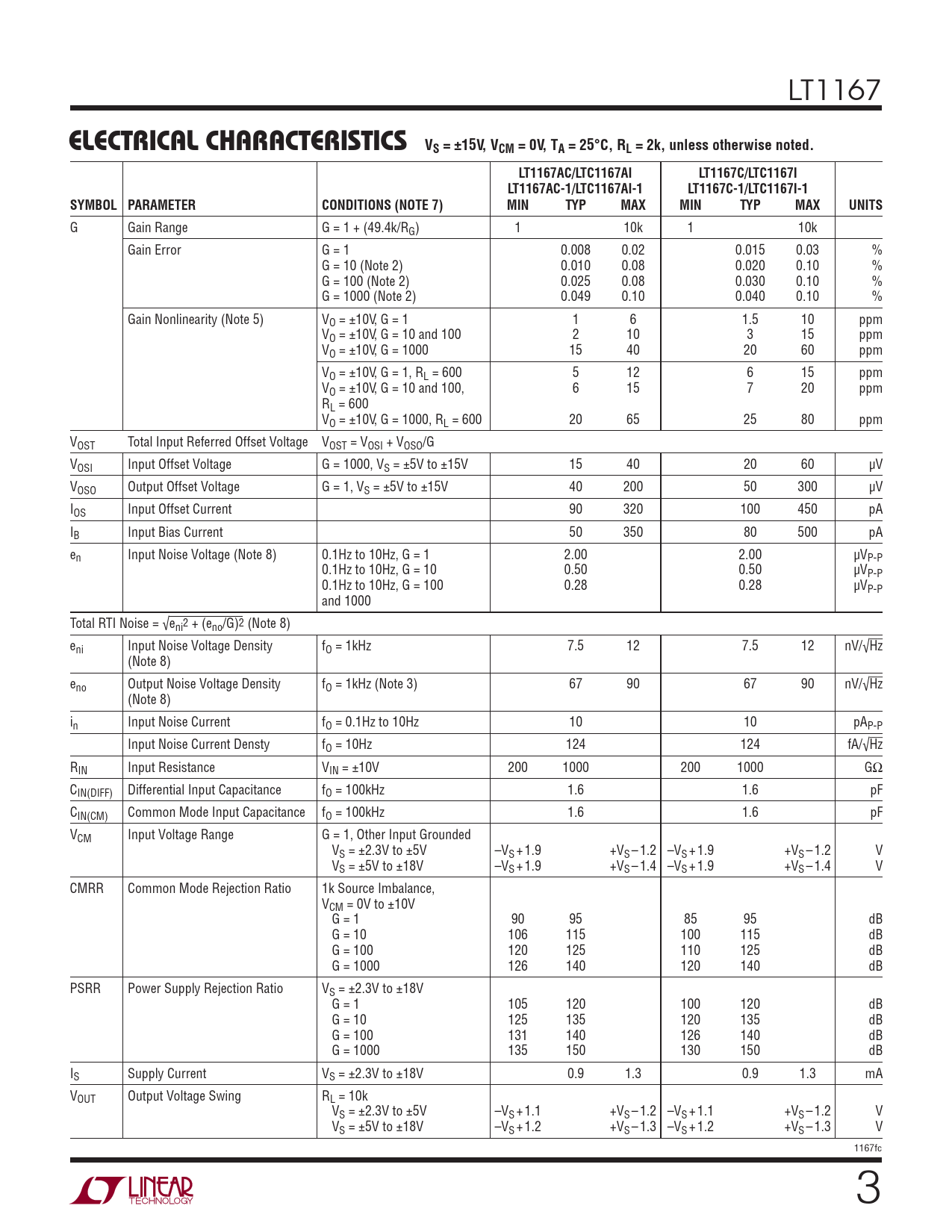

ELECTRICAL CHARACTERISTICS. VS = ±15V, VCM = 0V, TA = 25°C, RL = 2k, unless otherwise noted. LT1167AC/LTC1167AI
该数据表的模型线
- LT1167ACN8#PBF LT1167ACS8#PBF LT1167ACS8#TRPBF LT1167ACS8-1#PBF LT1167ACS8-1#TRPBF LT1167AIN8#PBF LT1167AIS8#PBF LT1167AIS8#TRPBF LT1167AIS8-1#PBF LT1167AIS8-1#TRPBF LT1167CN8#PBF LT1167CS8#PBF LT1167CS8#TRPBF LT1167CS8-1#PBF LT1167CS8-1#TRPBF LT1167IN8#PBF LT1167IS8#PBF LT1167IS8#TRPBF LT1167IS8-1#PBF LT1167IS8-1#TRPBF
文件文字版本
LT1167
ELECTRICAL CHARACTERISTICS VS = ±15V, VCM = 0V, TA = 25°C, RL = 2k, unless otherwise noted. LT1167AC/LTC1167AI LT1167C/LTC1167I LT1167AC-1/LTC1167AI-1 LT1167C-1/LTC1167I-1 SYMBOL PARAMETER CONDITIONS (NOTE 7) MIN TYP MAX MIN TYP MAX UNITS
G Gain Range G = 1 + (49.4k/RG) 1 10k 1 10k Gain Error G = 1 0.008 0.02 0.015 0.03 % G = 10 (Note 2) 0.010 0.08 0.020 0.10 % G = 100 (Note 2) 0.025 0.08 0.030 0.10 % G = 1000 (Note 2) 0.049 0.10 0.040 0.10 % Gain Nonlinearity (Note 5) VO = ±10V, G = 1 1 6 1.5 10 ppm VO = ±10V, G = 10 and 100 2 10 3 15 ppm VO = ±10V, G = 1000 15 40 20 60 ppm VO = ±10V, G = 1, RL = 600 5 12 6 15 ppm VO = ±10V, G = 10 and 100, 6 15 7 20 ppm RL = 600 VO = ±10V, G = 1000, RL = 600 20 65 25 80 ppm VOST Total Input Referred Offset Voltage VOST = VOSI + VOSO/G VOSI Input Offset Voltage G = 1000, VS = ±5V to ±15V 15 40 20 60 μV VOSO Output Offset Voltage G = 1, VS = ±5V to ±15V 40 200 50 300 μV IOS Input Offset Current 90 320 100 450 pA IB Input Bias Current 50 350 80 500 pA en Input Noise Voltage (Note 8) 0.1Hz to 10Hz, G = 1 2.00 2.00 μVP-P 0.1Hz to 10Hz, G = 10 0.50 0.50 μVP-P 0.1Hz to 10Hz, G = 100 0.28 0.28 μVP-P and 1000 Total RTI Noise = √eni2 + (eno/G)2 (Note 8) eni Input Noise Voltage Density fO = 1kHz 7.5 12 7.5 12 nV/√Hz (Note 8) eno Output Noise Voltage Density fO = 1kHz (Note 3) 67 90 67 90 nV/√Hz (Note 8) in Input Noise Current fO = 0.1Hz to 10Hz 10 10 pAP-P Input Noise Current Densty fO = 10Hz 124 124 fA/√Hz RIN Input Resistance VIN = ±10V 200 1000 200 1000 GΩ CIN(DIFF) Differential Input Capacitance fO = 100kHz 1.6 1.6 pF CIN(CM) Common Mode Input Capacitance fO = 100kHz 1.6 1.6 pF VCM Input Voltage Range G = 1, Other Input Grounded VS = ±2.3V to ±5V –VS + 1.9 +VS – 1.2 –VS + 1.9 +VS – 1.2 V VS = ±5V to ±18V –VS + 1.9 +VS – 1.4 –VS + 1.9 +VS – 1.4 V CMRR Common Mode Rejection Ratio 1k Source Imbalance, VCM = 0V to ±10V G = 1 90 95 85 95 dB G = 10 106 115 100 115 dB G = 100 120 125 110 125 dB G = 1000 126 140 120 140 dB PSRR Power Supply Rejection Ratio VS = ±2.3V to ±18V G = 1 105 120 100 120 dB G = 10 125 135 120 135 dB G = 100 131 140 126 140 dB G = 1000 135 150 130 150 dB IS Supply Current VS = ±2.3V to ±18V 0.9 1.3 0.9 1.3 mA VOUT Output Voltage Swing RL = 10k VS = ±2.3V to ±5V –VS + 1.1 +VS – 1.2 –VS + 1.1 +VS – 1.2 V VS = ±5V to ±18V –VS + 1.2 +VS – 1.3 –VS + 1.2 +VS – 1.3 V 1167fc 3 Document Outline FEATURES DESCRIPTION APPLICATIONS TYPICAL APPLICATION ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION ORDER INFORMATION ELECTRICAL CHARACTERISTICS TYPICAL PERFORMANCE CHARACTERISTICS BLOCK DIAGRAM THEORY OF OPERATION APPLICATIONS INFORMATION TYPICAL APPLICATION PACKAGE DESCRIPTION REVISION HISTORY TYPICAL APPLICATION RELATED PARTS
ELECTRICAL CHARACTERISTICS VS = ±15V, VCM = 0V, TA = 25°C, RL = 2k, unless otherwise noted. LT1167AC/LTC1167AI LT1167C/LTC1167I LT1167AC-1/LTC1167AI-1 LT1167C-1/LTC1167I-1 SYMBOL PARAMETER CONDITIONS (NOTE 7) MIN TYP MAX MIN TYP MAX UNITS
