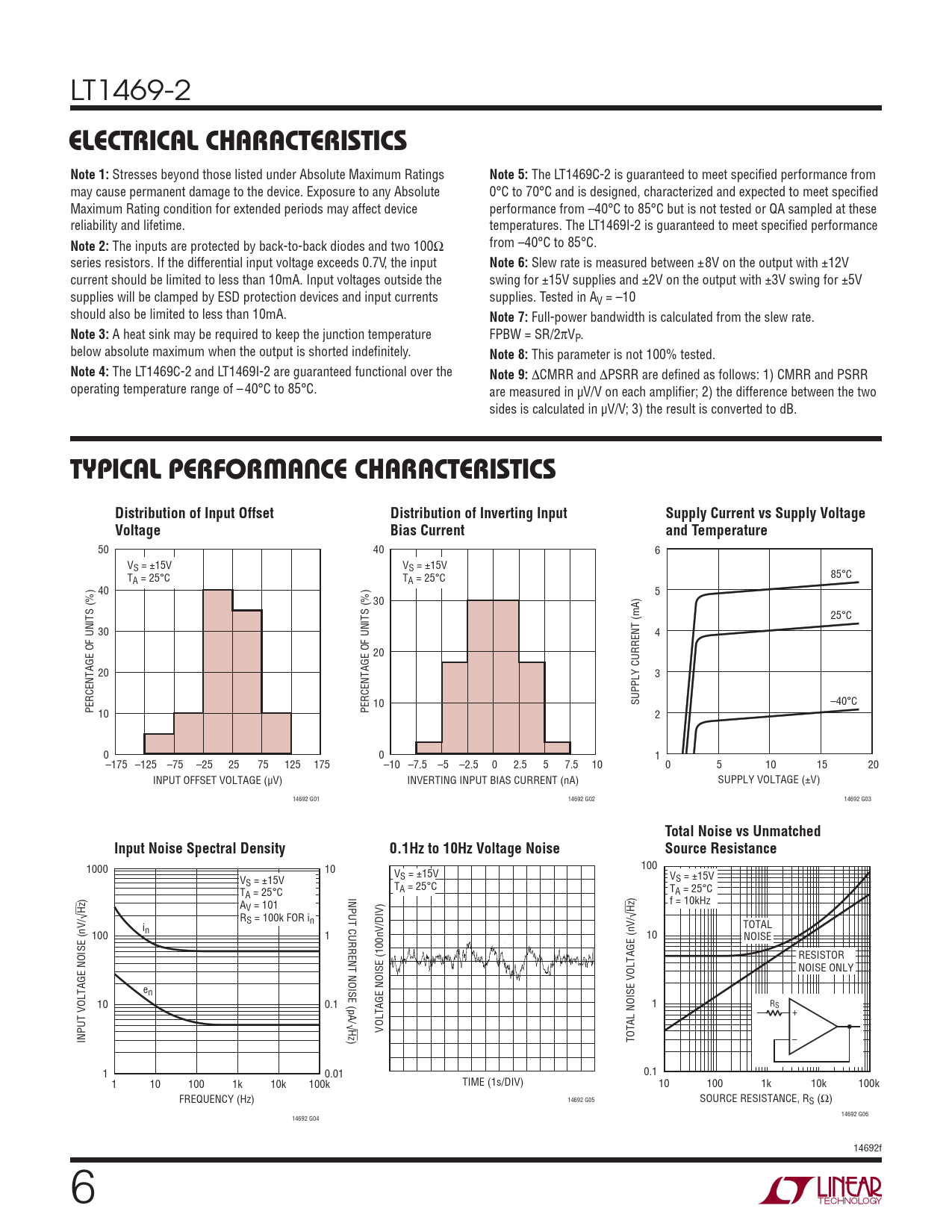

ELECTRICAL CHARACTERISTICS. Note 1:. Note 5:. Note 2:. Note 6:. Note 7:. Note 3:. Note 8:. Note 4:. Note 9:
该数据表的模型线
文件文字版本
LT1469-2
ELECTRICAL CHARACTERISTICS Note 1:
Stresses beyond those listed under Absolute Maximum Ratings
Note 5:
The LT1469C-2 is guaranteed to meet specifi ed performance from may cause permanent damage to the device. Exposure to any Absolute 0°C to 70°C and is designed, characterized and expected to meet specifi ed Maximum Rating condition for extended periods may affect device performance from –40°C to 85°C but is not tested or QA sampled at these reliability and lifetime. temperatures. The LT1469I-2 is guaranteed to meet specifi ed performance
Note 2:
The inputs are protected by back-to-back diodes and two 100Ω from –40°C to 85°C. series resistors. If the differential input voltage exceeds 0.7V, the input
Note 6:
Slew rate is measured between ±8V on the output with ±12V current should be limited to less than 10mA. Input voltages outside the swing for ±15V supplies and ±2V on the output with ±3V swing for ±5V supplies will be clamped by ESD protection devices and input currents supplies. Tested in AV = –10 should also be limited to less than 10mA.
Note 7:
Full-power bandwidth is calculated from the slew rate.
Note 3:
A heat sink may be required to keep the junction temperature FPBW = SR/2πVP. below absolute maximum when the output is shorted indefi nitely.
Note 8:
This parameter is not 100% tested.
Note 4:
The LT1469C-2 and LT1469I-2 are guaranteed functional over the
Note 9:
ΔCMRR and ΔPSRR are defi ned as follows: 1) CMRR and PSRR operating temperature range of – 40°C to 85°C. are measured in μV/V on each amplifi er; 2) the difference between the two sides is calculated in μV/V; 3) the result is converted to dB.
TYPICAL PERFORMANCE CHARACTERISTICS Distribution of Input Offset Distribution of Inverting Input Supply Current vs Supply Voltage Voltage Bias Current and Temperature
50 40 6 VS = ±15V VS = ±15V T 85°C A = 25°C TA = 25°C 40 5 30 25°C 30 4 20 20 3 10 SUPPLY CURRENT (mA) –40°C PERCENTAGE OF UNITS (%) 10 PERCENTAGE OF UNITS (%) 2 0 0 1 –175 –125 –75 –25 25 75 125 175 –10 –7.5 –5 –2.5 0 2.5 5 7.5 10 0 5 10 15 20 INPUT OFFSET VOLTAGE (μV) INVERTING INPUT BIAS CURRENT (nA) SUPPLY VOLTAGE (±V) 14692 G01 14692 G02 14692 G03
Total Noise vs Unmatched Input Noise Spectral Density 0.1Hz to 10Hz Voltage Noise Source Resistance
1000 10 100 V V S = ±15V V S = ±15V S = ±15V T T A = 25°C TA = 25°C ) A = 25°C INPUT CURRENT NOISE (pA/√ ) f = 10kHz Hz AV = 101 Hz RS = 100k FOR in i TOTAL n 100 1 10 NOISE RESISTOR NOISE ONLY en 10 0.1 1 RS + Hz VOLTAGE NOISE (100nV/DIV) INPUT VOLTAGE NOISE (nV/√ ) TOTAL NOISE VOLTAGE (nV/√ – 1 0.01 0.1 1 10 100 1k 10k 100k TIME (1s/DIV) 10 100 1k 10k 100k FREQUENCY (Hz) 14692 G05 SOURCE RESISTANCE, RS (Ω) 14692 G06 14692 G04 14692f 6
