Datasheet LT1361, LT1362 (Analog Devices) - 5
| 制造商 | Analog Devices |
| 描述 | Dual and Quad 50MHz, 800V/µs Op Amps |
| 页数 / 页 | 12 / 5 — ELECTRICAL CHARACTERISTICS The. denotes the specifications which apply … |
| 文件格式/大小 | PDF / 236 Kb |
| 文件语言 | 英语 |

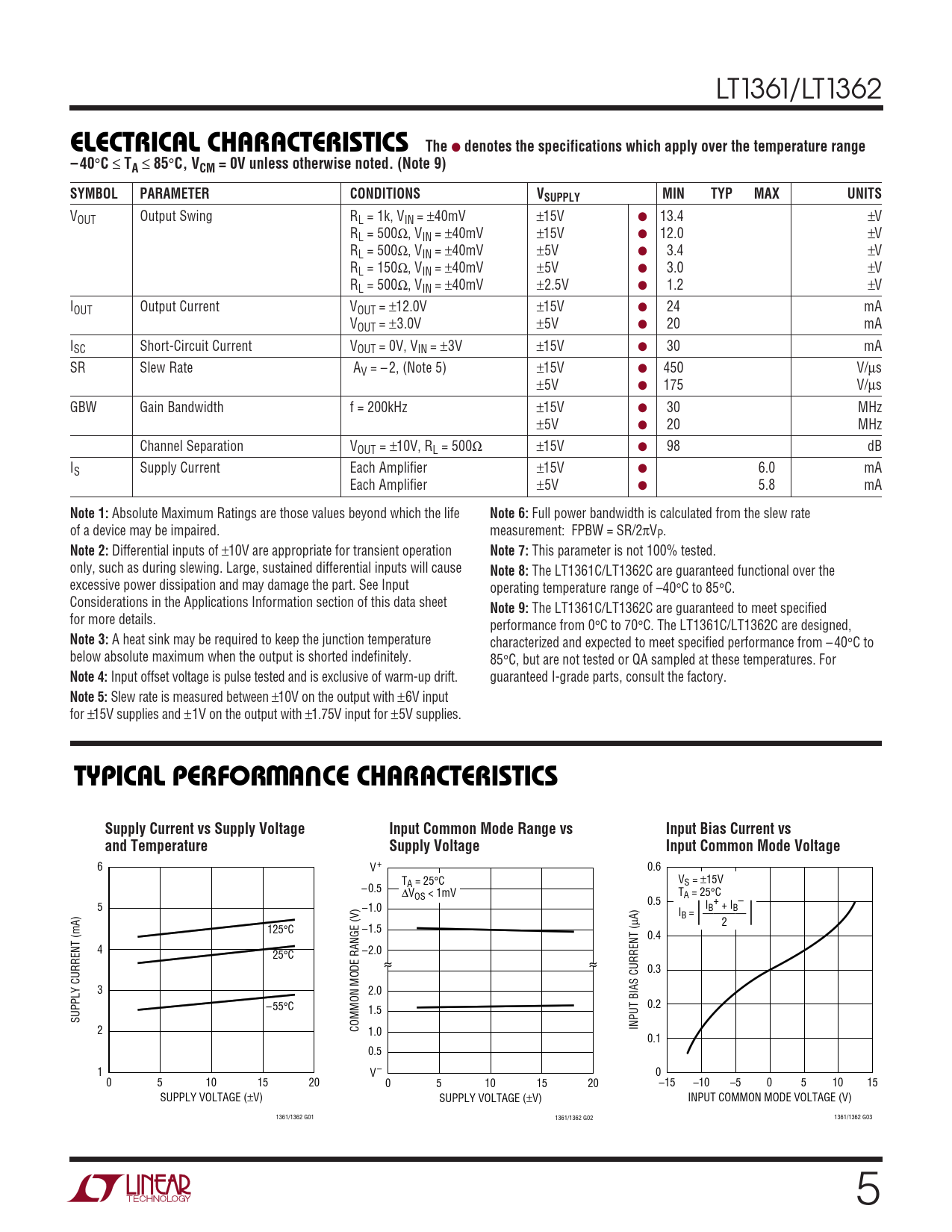

ELECTRICAL CHARACTERISTICS The. denotes the specifications which apply over the temperature range. – 40
该数据表的模型线
文件文字版本
LT1361/LT1362
ELECTRICAL CHARACTERISTICS The
●
denotes the specifications which apply over the temperature range – 40
°
C
≤
TA
≤
85
°
C, VCM = 0V unless otherwise noted. (Note 9) SYMBOL PARAMETER CONDITIONS VSUPPLY MIN TYP MAX UNITS
VOUT Output Swing RL = 1k, VIN = ±40mV ±15V ● 13.4 ±V RL = 500Ω, VIN = ±40mV ±15V ● 12.0 ±V RL = 500Ω, VIN = ±40mV ±5V ● 3.4 ±V RL = 150Ω, VIN = ±40mV ±5V ● 3.0 ±V RL = 500Ω, VIN = ±40mV ±2.5V ● 1.2 ±V IOUT Output Current VOUT = ±12.0V ±15V ● 24 mA VOUT = ±3.0V ±5V ● 20 mA ISC Short-Circuit Current VOUT = 0V, VIN = ±3V ±15V ● 30 mA SR Slew Rate AV = – 2, (Note 5) ±15V ● 450 V/µs ±5V ● 175 V/µs GBW Gain Bandwidth f = 200kHz ±15V ● 30 MHz ±5V ● 20 MHz Channel Separation VOUT = ±10V, RL = 500Ω ±15V ● 98 dB IS Supply Current Each Amplifier ±15V ● 6.0 mA Each Amplifier ±5V ● 5.8 mA
