Datasheet LT6000, LT6001, LT6002 (Analog Devices) - 2
| 制造商 | Analog Devices |
| 描述 | Single, Dual and Quad, 1.8V, 13µA Precision Rail-to-Rail Op Amps |
| 页数 / 页 | 20 / 2 — ABSOLUTE AXI U. RATI GS (Note 1). PACKAGE/ORDER I FOR ATIO. Order Options |
| 文件格式/大小 | PDF / 325 Kb |
| 文件语言 | 英语 |
ABSOLUTE AXI U. RATI GS (Note 1). PACKAGE/ORDER I FOR ATIO. Order Options
该数据表的模型线
文件文字版本

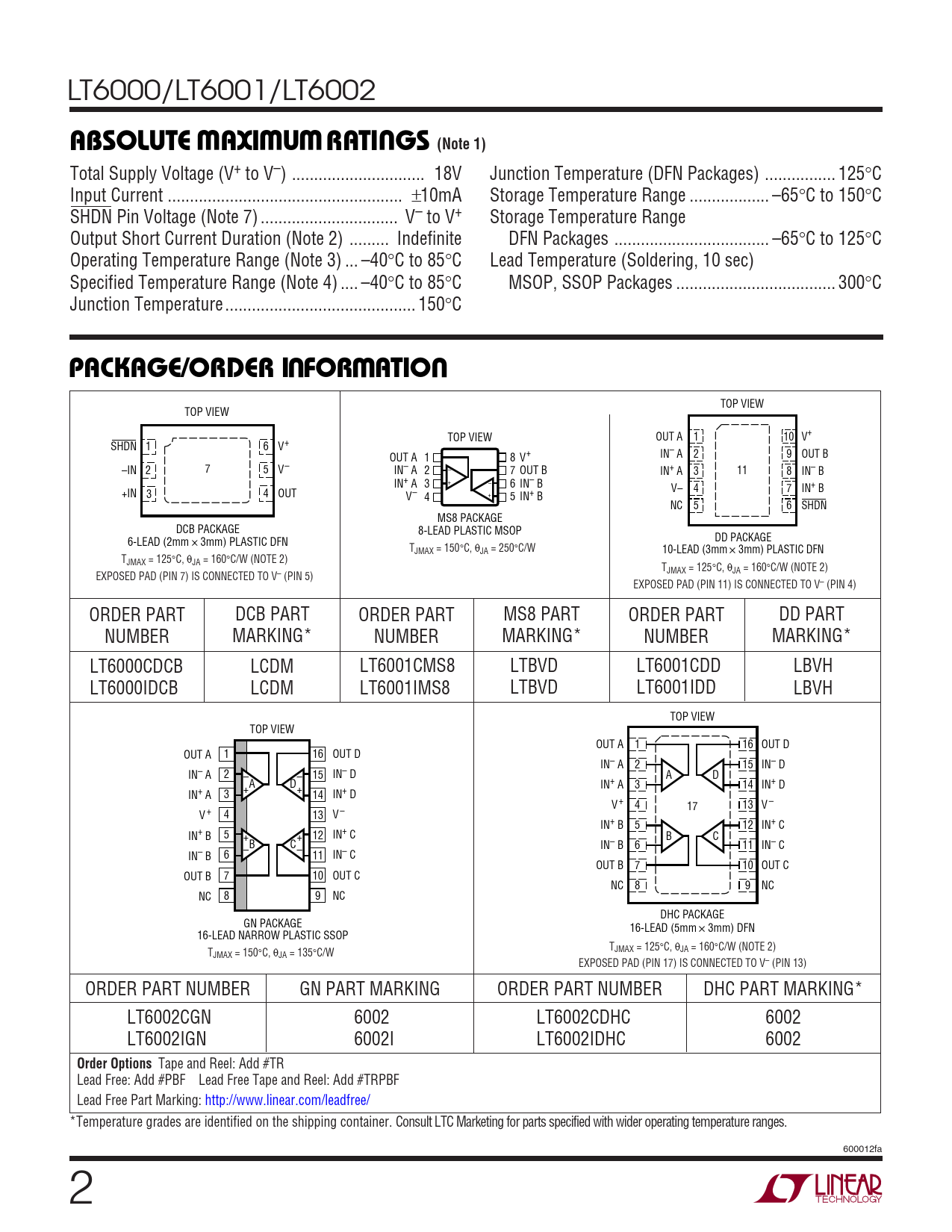

LT6000/LT6001/LT6002
W W W U ABSOLUTE AXI U RATI GS (Note 1)
Total Supply Voltage (V+ to V–) .. 18V Junction Temperature (DFN Packages) .. 125°C Input Current ... ±10mA Storage Temperature Range .. –65°C to 150°C SHDN Pin Voltage (Note 7) ... V– to V+ Storage Temperature Range Output Short Current Duration (Note 2) ... Indefinite DFN Packages ... –65°C to 125°C Operating Temperature Range (Note 3) ... –40°C to 85°C Lead Temperature (Soldering, 10 sec) Specified Temperature Range (Note 4) .. –40°C to 85°C MSOP, SSOP Packages .. 300°C Junction Temperature ... 150°C
U W U PACKAGE/ORDER I FOR ATIO
TOP VIEW TOP VIEW TOP VIEW OUT A 1 10 V+ SHDN 1 6 V+ IN– A 2 9 OUT B OUT A 1 8 V+ –IN 2 7 5 V– IN– A 2 – 7 OUT B IN+ A 3 11 8 IN– B IN+ A 3 + – 6 IN– B V– 4 7 IN+ B +IN 3 4 OUT V– 4 + 5 IN+ B NC 5 6 SHDN MS8 PACKAGE DCB PACKAGE 8-LEAD PLASTIC MSOP DD PACKAGE 6-LEAD (2mm × 3mm) PLASTIC DFN TJMAX = 150°C, θJA = 250°C/W 10-LEAD (3mm ´ 3mm) PLASTIC DFN TJMAX = 125°C, θJA = 160°C/W (NOTE 2) TJMAX = 125°C, θJA = 160°C/W (NOTE 2) EXPOSED PAD (PIN 7) IS CONNECTED TO V– (PIN 5) EXPOSED PAD (PIN 11) IS CONNECTED TO V– (PIN 4) ORDER PART DCB PART ORDER PART MS8 PART ORDER PART DD PART NUMBER MARKING* NUMBER MARKING* NUMBER MARKING* LT6000CDCB LCDM LT6001CMS8 LTBVD LT6001CDD LBVH LT6000IDCB LCDM LT6001IMS8 LTBVD LT6001IDD LBVH TOP VIEW TOP VIEW OUT A 1 16 OUT D OUT A 1 16 OUT D IN– A 2 15 IN– D IN– A 2 – 15 IN– D – A D A D IN+ A 3 14 IN+ D + + IN+ A 3 14 IN+ D V + 4 17 13 V – V + 4 13 V – IN+ B 5 12 IN+ C IN+ B 5 + + 12 IN+ C B C B C IN– B 6 11 IN– C – – IN– B 6 11 IN– C OUT B 7 10 OUT C OUT B 7 10 OUT C NC 8 9 NC NC 8 9 NC DHC PACKAGE GN PACKAGE 16-LEAD (5mm ´ 3mm) DFN 16-LEAD NARROW PLASTIC SSOP TJMAX = 125°C, θJA = 160°C/W (NOTE 2) TJMAX = 150°C, θJA = 135°C/W EXPOSED PAD (PIN 17) IS CONNECTED TO V– (PIN 13) ORDER PART NUMBER GN PART MARKING ORDER PART NUMBER DHC PART MARKING* LT6002CGN 6002 LT6002CDHC 6002 LT6002IGN 6002I LT6002IDHC 6002
Order Options
Tape and Reel: Add #TR Lead Free: Add #PBF Lead Free Tape and Reel: Add #TRPBF Lead Free Part Marking: http://www.linear.com/leadfree/ *Temperature grades are identified on the shipping container. Consult LTC Marketing for parts specified with wider operating temperature ranges. 600012fa 2
