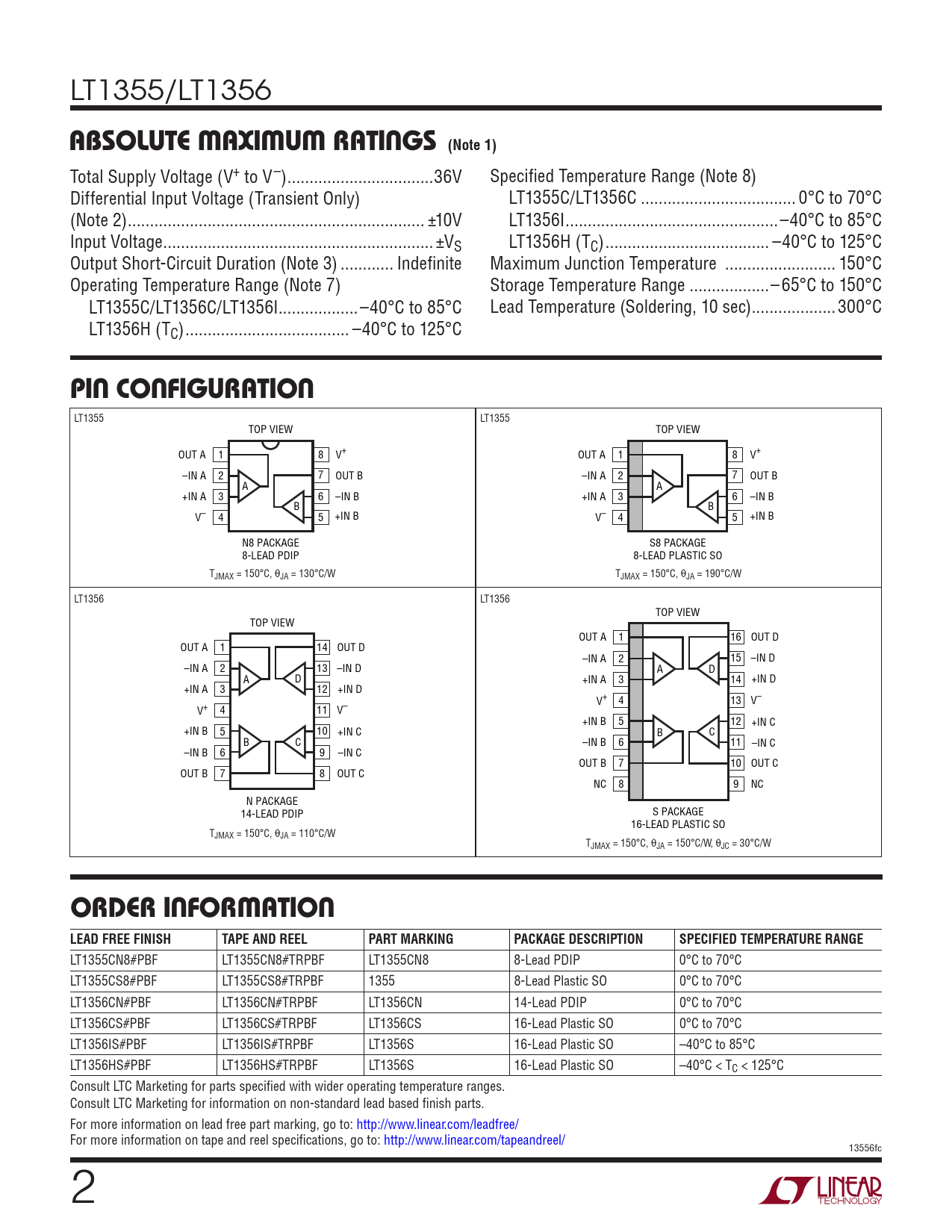

LT1355/LT1356
ABSOLUTE MAXIMUM RATINGS (Note 1)
Total Supply Voltage (V+ to V–) ...36V Specified Temperature Range (Note 8) Differential Input Voltage (Transient Only) LT1355C/LT1356C ... 0°C to 70°C (Note 2) ... ±10V LT1356I ..–40°C to 85°C Input Voltage ...±VS LT1356H (TC) ... –40°C to 125°C Output Short-Circuit Duration (Note 3) .. Indefinite Maximum Junction Temperature ... 150°C Operating Temperature Range (Note 7) Storage Temperature Range ..–65°C to 150°C LT1355C/LT1356C/LT1356I..–40°C to 85°C Lead Temperature (Soldering, 10 sec) ...300°C LT1356H (TC) ... –40°C to 125°C
PIN CONFIGURATION
LT1355 LT1355 TOP VIEW TOP VIEW OUT A 1 8 V+ OUT A 1 8 V+ –IN A 2 7 OUT B –IN A 2 7 OUT B A A +IN A 3 6 –IN B +IN A 3 6 –IN B B B V– 4 5 +IN B V– 4 5 +IN B N8 PACKAGE S8 PACKAGE 8-LEAD PDIP 8-LEAD PLASTIC SO TJMAX = 150°C, θJA = 130°C/W TJMAX = 150°C, θJA = 190°C/W LT1356 LT1356 TOP VIEW TOP VIEW OUT A 1 16 OUT D OUT A 1 14 OUT D –IN A 2 15 –IN D –IN A 2 13 –IN D A D A D +IN A 3 14 +IN D +IN A 3 12 +IN D V+ 4 13 V– V+ 4 11 V– +IN B 5 12 +IN C +IN B 5 10 +IN C B C B C –IN B 6 11 –IN C –IN B 6 9 –IN C OUT B 7 10 OUT C OUT B 7 8 OUT C NC 8 9 NC N PACKAGE 14-LEAD PDIP S PACKAGE 16-LEAD PLASTIC SO TJMAX = 150°C, θJA = 110°C/W TJMAX = 150°C, θJA = 150°C/W, θJC = 30°C/W
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LT1355CN8#PBF LT1355CN8#TRPBF LT1355CN8 8-Lead PDIP 0°C to 70°C LT1355CS8#PBF LT1355CS8#TRPBF 1355 8-Lead Plastic SO 0°C to 70°C LT1356CN#PBF LT1356CN#TRPBF LT1356CN 14-Lead PDIP 0°C to 70°C LT1356CS#PBF LT1356CS#TRPBF LT1356CS 16-Lead Plastic SO 0°C to 70°C LT1356IS#PBF LT1356IS#TRPBF LT1356S 16-Lead Plastic SO –40°C to 85°C LT1356HS#PBF LT1356HS#TRPBF LT1356S 16-Lead Plastic SO –40°C < TC < 125°C Consult LTC Marketing for parts specified with wider operating temperature ranges. Consult LTC Marketing for information on non-standard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 13556fc 2 Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Simplified Schematic Package Description Revision History Typical Applications Related Parts
