Datasheet LTC3548A (Analog Devices) - 2
| 制造商 | Analog Devices |
| 描述 | Dual Synchronous 400mA/800mA, 2.25MHz Step-Down DC/DC Regulator |
| 页数 / 页 | 20 / 2 — ABSOLUTE MAXIMUM RATINGS (Note 1). PIN CONFIGURATION. ORDER INFORMATION. … |
| 文件格式/大小 | PDF / 255 Kb |
| 文件语言 | 英语 |
ABSOLUTE MAXIMUM RATINGS (Note 1). PIN CONFIGURATION. ORDER INFORMATION. LEAD FREE FINISH. TAPE AND REEL. PART MARKING
该数据表的模型线
文件文字版本

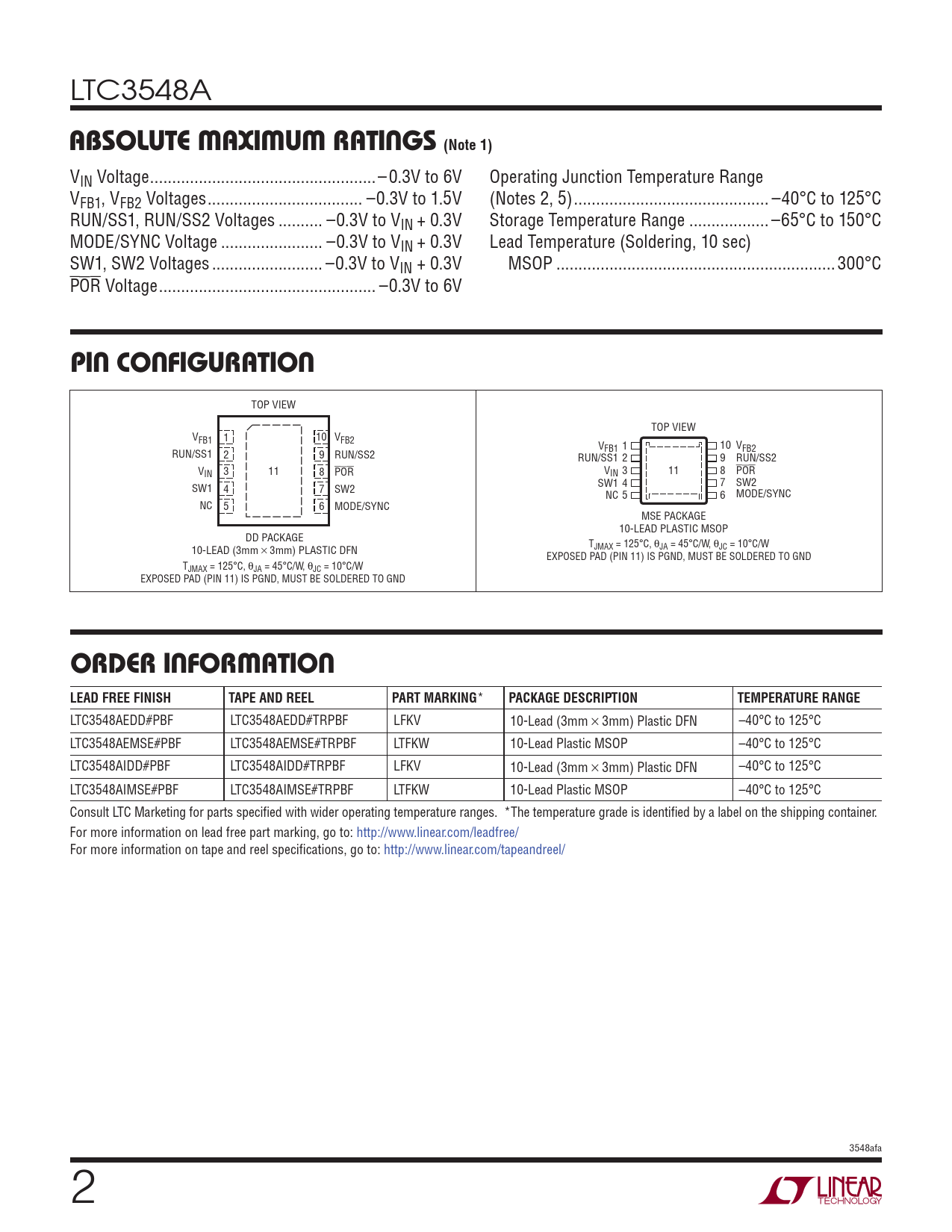

LTC3548A
ABSOLUTE MAXIMUM RATINGS (Note 1)
VIN Voltage ...– 0.3V to 6V Operating Junction Temperature Range VFB1, VFB2 Voltages ... –0.3V to 1.5V (Notes 2, 5) .. –40°C to 125°C RUN/SS1, RUN/SS2 Voltages .. –0.3V to VIN + 0.3V Storage Temperature Range .. –65°C to 150°C MODE/SYNC Voltage ... –0.3V to VIN + 0.3V Lead Temperature (Soldering, 10 sec) SW1, SW2 Voltages ... –0.3V to VIN + 0.3V MSOP ... 300°C POR Voltage ... –0.3V to 6V
PIN CONFIGURATION
TOP VIEW TOP VIEW VFB1 1 10 VFB2 V 1 FB1 10 VFB2 RUN/SS1 2 9 RUN/SS2 RUN/SS1 2 9 RUN/SS2 V 11 POR IN 3 11 8 POR V 3 IN 8 SW1 4 7 SW2 SW1 4 7 SW2 NC 5 6 MODE/SYNC NC 5 6 MODE/SYNC MSE PACKAGE 10-LEAD PLASTIC MSOP DD PACKAGE T 10-LEAD (3mm s 3mm) PLASTIC DFN JMAX = 125°C, θJA = 45°C/W, θJC = 10°C/W EXPOSED PAD (PIN 11) IS PGND, MUST BE SOLDERED TO GND TJMAX = 125°C, θJA = 45°C/W, θJC = 10°C/W EXPOSED PAD (PIN 11) IS PGND, MUST BE SOLDERED TO GND
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING
*
PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC3548AEDD#PBF LTC3548AEDD#TRPBF LFKV 10-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LTC3548AEMSE#PBF LTC3548AEMSE#TRPBF LTFKW 10-Lead Plastic MSOP –40°C to 125°C LTC3548AIDD#PBF LTC3548AIDD#TRPBF LFKV 10-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LTC3548AIMSE#PBF LTC3548AIMSE#TRPBF LTFKW 10-Lead Plastic MSOP –40°C to 125°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. *The temperature grade is identifi ed by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/ 3548afa 2
ABSOLUTE MAXIMUM RATINGS (Note 1)
VIN Voltage ...– 0.3V to 6V Operating Junction Temperature Range VFB1, VFB2 Voltages ... –0.3V to 1.5V (Notes 2, 5) .. –40°C to 125°C RUN/SS1, RUN/SS2 Voltages .. –0.3V to VIN + 0.3V Storage Temperature Range .. –65°C to 150°C MODE/SYNC Voltage ... –0.3V to VIN + 0.3V Lead Temperature (Soldering, 10 sec) SW1, SW2 Voltages ... –0.3V to VIN + 0.3V MSOP ... 300°C POR Voltage ... –0.3V to 6V
PIN CONFIGURATION
TOP VIEW TOP VIEW VFB1 1 10 VFB2 V 1 FB1 10 VFB2 RUN/SS1 2 9 RUN/SS2 RUN/SS1 2 9 RUN/SS2 V 11 POR IN 3 11 8 POR V 3 IN 8 SW1 4 7 SW2 SW1 4 7 SW2 NC 5 6 MODE/SYNC NC 5 6 MODE/SYNC MSE PACKAGE 10-LEAD PLASTIC MSOP DD PACKAGE T 10-LEAD (3mm s 3mm) PLASTIC DFN JMAX = 125°C, θJA = 45°C/W, θJC = 10°C/W EXPOSED PAD (PIN 11) IS PGND, MUST BE SOLDERED TO GND TJMAX = 125°C, θJA = 45°C/W, θJC = 10°C/W EXPOSED PAD (PIN 11) IS PGND, MUST BE SOLDERED TO GND
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING
*
PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC3548AEDD#PBF LTC3548AEDD#TRPBF LFKV 10-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LTC3548AEMSE#PBF LTC3548AEMSE#TRPBF LTFKW 10-Lead Plastic MSOP –40°C to 125°C LTC3548AIDD#PBF LTC3548AIDD#TRPBF LFKV 10-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LTC3548AIMSE#PBF LTC3548AIMSE#TRPBF LTFKW 10-Lead Plastic MSOP –40°C to 125°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. *The temperature grade is identifi ed by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/ 3548afa 2
