Datasheet BCR602 (Infineon)
| 制造商 | Infineon |
| 描述 | 60V linear LED controller IC for dimmable LED |
| 页数 / 页 | 15 / 1 — BCR602 hot plug IC with dimming. 60 V linear LED controller IC for … |
| 修订版 | 01_01 |
| 文件格式/大小 | PDF / 478 Kb |
| 文件语言 | 英语 |
BCR602 hot plug IC with dimming. 60 V linear LED controller IC for dimmable LED applications with ripple suppression,
该数据表的模型线
文件文字版本
link to page 15

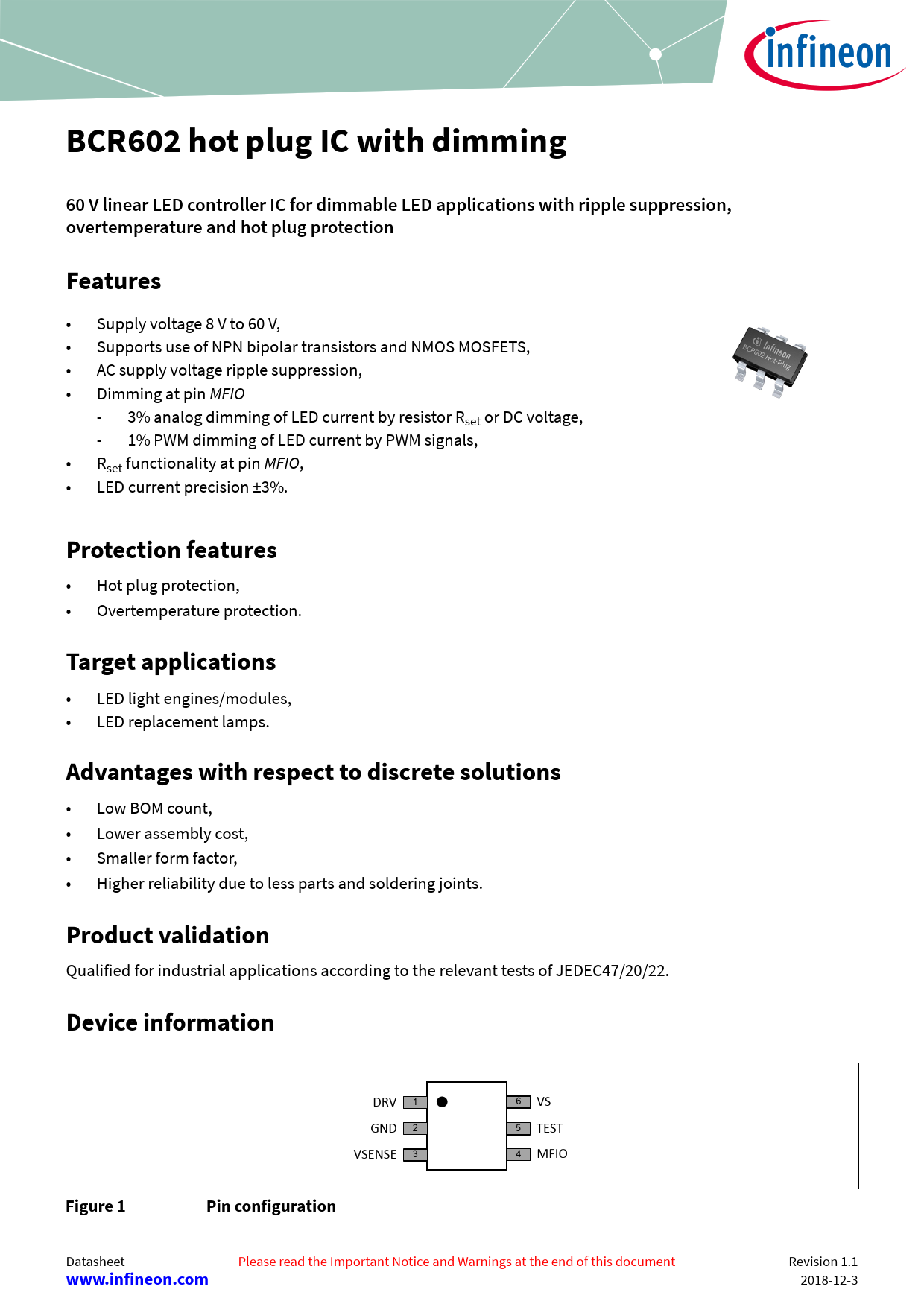

BCR602 hot plug IC with dimming 60 V linear LED controller IC for dimmable LED applications with ripple suppression, overtemperature and hot plug protection Features
• Supply voltage 8 V to 60 V, • Supports use of NPN bipolar transistors and NMOS MOSFETS, • AC supply voltage ripple suppression, • Dimming at pin MFIO - 3% analog dimming of LED current by resistor Rset or DC voltage, - 1% PWM dimming of LED current by PWM signals, • Rset functionality at pin MFIO, • LED current precision ±3%.
Protection features
• Hot plug protection, • Overtemperature protection.
Target applications
• LED light engines/modules, • LED replacement lamps.
Advantages with respect to discrete solutions
• Low BOM count, • Lower assembly cost, • Smaller form factor, • Higher reliability due to less parts and soldering joints.
Product validation
Qualified for industrial applications according to the relevant tests of JEDEC47/20/22.
Device information
DRV 1 6 VS GND 2 5 TEST VSENSE 3 4 MFIO
Figure 1 Pin configuration
Datasheet Please read the Important Notice and Warnings at the end of this document Revision 1.1
www.infineon.com
2018-12-3 Document Outline Features Protection features Target applications Advantages with respect to discrete solutions Product validation Device information Description Table of contents 1 Pin configuration 2 Functional description 3 Thermal characteristics 4 Absolute maximum ratings 5 Operating conditions 6 Electrical characteristics 7 Package information 8 References Revision history Disclaimer
