Datasheet BCR602 (Infineon) - 4
| 制造商 | Infineon |
| 描述 | 60V linear LED controller IC for dimmable LED |
| 页数 / 页 | 15 / 4 — BCR602 hot plug IC with dimming. Pin configuration. Figure 2. Table 2. … |
| 修订版 | 01_01 |
| 文件格式/大小 | PDF / 478 Kb |
| 文件语言 | 英语 |
BCR602 hot plug IC with dimming. Pin configuration. Figure 2. Table 2. Pin no. Pin name. Pin type. Function
该数据表的模型线
文件文字版本

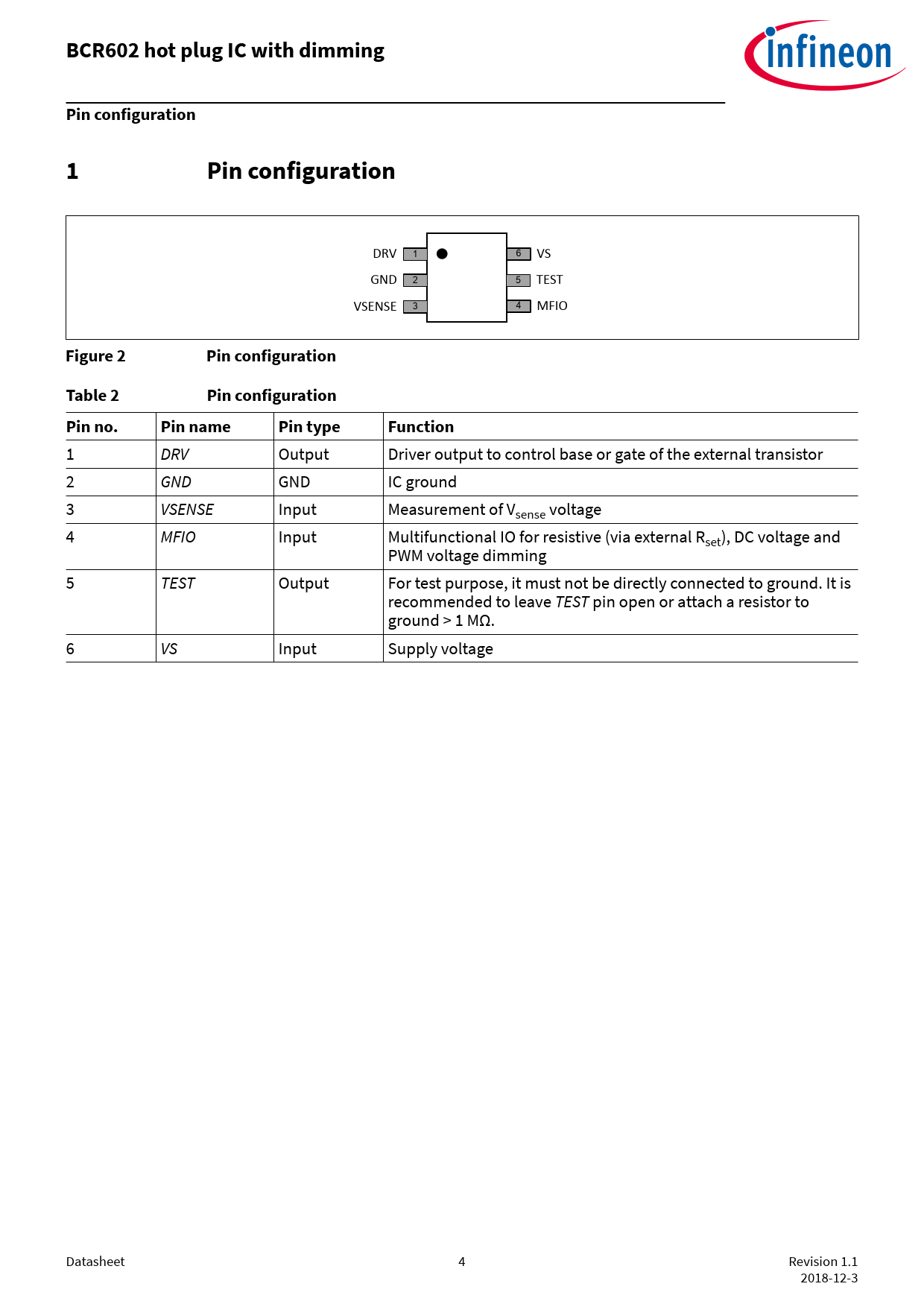

BCR602 hot plug IC with dimming Pin configuration 1 Pin configuration
DRV 1 6 VS GND 2 5 TEST VSENSE 3 4 MFIO
Figure 2 Pin configuration Table 2 Pin configuration Pin no. Pin name Pin type Function
1 DRV Output Driver output to control base or gate of the external transistor 2 GND GND IC ground 3 VSENSE Input Measurement of Vsense voltage 4 MFIO Input Multifunctional IO for resistive (via external Rset), DC voltage and PWM voltage dimming 5 TEST Output For test purpose, it must not be directly connected to ground. It is recommended to leave TEST pin open or attach a resistor to ground > 1 MΩ. 6 VS Input Supply voltage Datasheet 4 Revision 1.1 2018-12-3 Document Outline Features Protection features Target applications Advantages with respect to discrete solutions Product validation Device information Description Table of contents 1 Pin configuration 2 Functional description 3 Thermal characteristics 4 Absolute maximum ratings 5 Operating conditions 6 Electrical characteristics 7 Package information 8 References Revision history Disclaimer
