| 制造商 | Infineon |
| 描述 | 60V linear LED controller IC for dimmable LED |
| 页数 / 页 | 15 / 8 — BCR602 hot plug IC with dimming. Absolute maximum ratings. Table 3. … |
| 修订版 | 01_01 |
| 文件格式/大小 | PDF / 478 Kb |
| 文件语言 | 英语 |

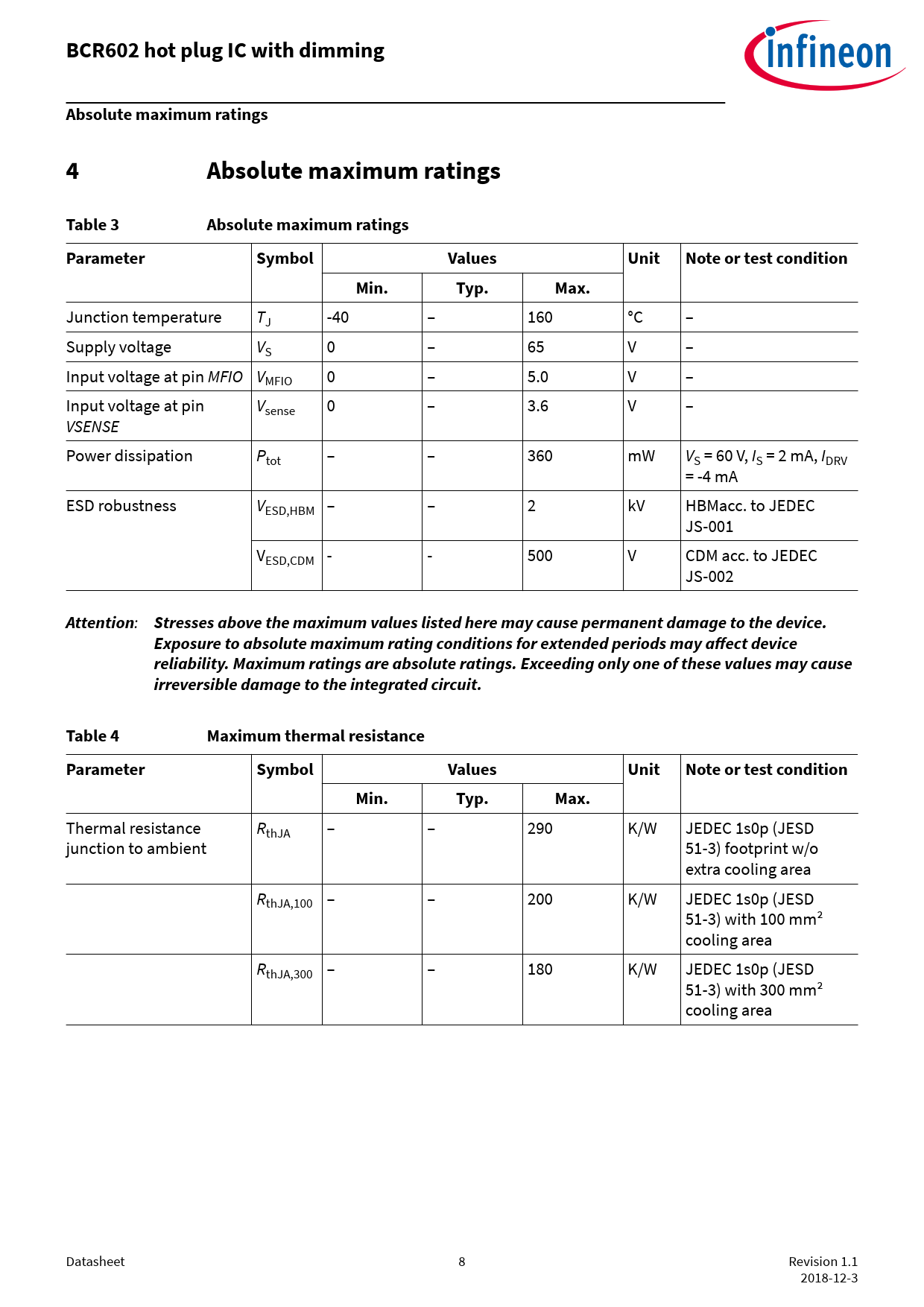

BCR602 hot plug IC with dimming. Absolute maximum ratings. Table 3. Parameter. Symbol. Values. Unit. Note or test condition. Min. Typ. Max
该数据表的模型线
文件文字版本
BCR602 hot plug IC with dimming Absolute maximum ratings 4 Absolute maximum ratings Table 3 Absolute maximum ratings Parameter Symbol Values Unit Note or test condition Min. Typ. Max.
Junction temperature TJ -40 – 160 °C – Supply voltage VS 0 – 65 V – Input voltage at pin MFIO VMFIO 0 – 5.0 V – Input voltage at pin Vsense 0 – 3.6 V – VSENSE Power dissipation Ptot – – 360 mW VS = 60 V, IS = 2 mA, IDRV = -4 mA ESD robustness VESD,HBM – – 2 kV HBMacc. to JEDEC JS-001 VESD,CDM - - 500 V CDM acc. to JEDEC JS-002
Attention
:
Stresses above the maximum values listed here may cause permanent damage to the device. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Maximum ratings are absolute ratings. Exceeding only one of these values may cause irreversible damage to the integrated circuit. Table 4 Maximum thermal resistance Parameter Symbol Values Unit Note or test condition Min. Typ. Max.
Thermal resistance RthJA – – 290 K/W JEDEC 1s0p (JESD junction to ambient 51-3) footprint w/o extra cooling area RthJA,100 – – 200 K/W JEDEC 1s0p (JESD 51-3) with 100 mm² cooling area RthJA,300 – – 180 K/W JEDEC 1s0p (JESD 51-3) with 300 mm² cooling area Datasheet 8 Revision 1.1 2018-12-3 Document Outline Features Protection features Target applications Advantages with respect to discrete solutions Product validation Device information Description Table of contents 1 Pin configuration 2 Functional description 3 Thermal characteristics 4 Absolute maximum ratings 5 Operating conditions 6 Electrical characteristics 7 Package information 8 References Revision history Disclaimer
