STGWA50IH65DF. Electrical characteristics. Table 7: IGBT switching characteristics (snubbed inductive load). Symbol. Parameter
该数据表的模型线
文件文字版本
link to page 5 link to page 10 link to page 10 link to page 10 link to page 10

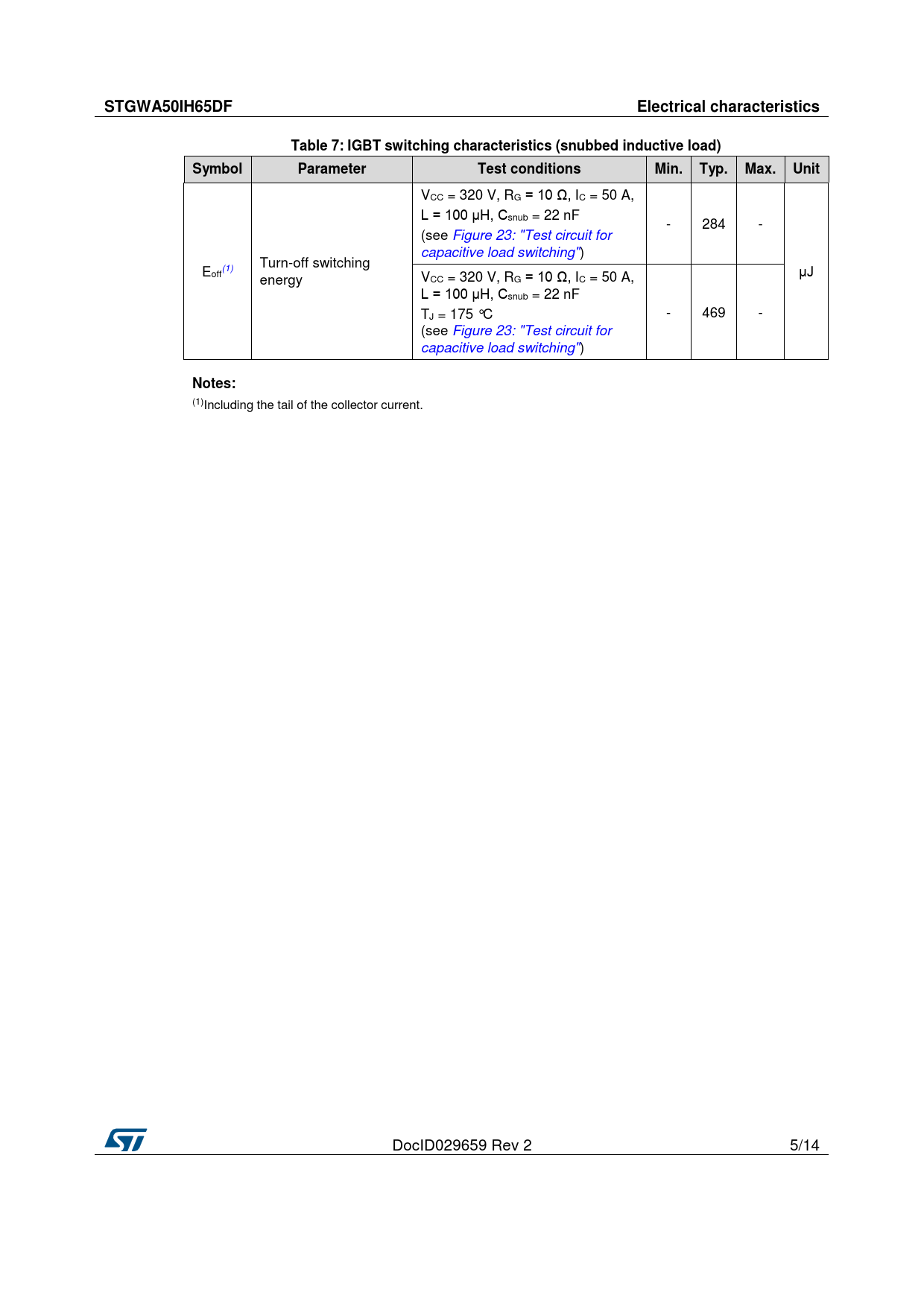

STGWA50IH65DF Electrical characteristics Table 7: IGBT switching characteristics (snubbed inductive load) Symbol Parameter Test conditions Min. Typ. Max. Unit
VCC = 320 V, RG = 10 Ω, IC = 50 A, L = 100 μH, Csnub = 22 nF - 284 - (see Figure 23: "Test circuit for capacitive load switching") Turn-off switching E (1) off μJ energy VCC = 320 V, RG = 10 Ω, IC = 50 A, L = 100 μH, Csnub = 22 nF TJ = 175 °C - 469 - (see Figure 23: "Test circuit for capacitive load switching")
Notes:
(1)Including the tail of the collector current. DocID029659 Rev 2 5/14
