Datasheet MMBT3904T (Diodes) - 2
| 制造商 | Diodes |
| 描述 | NPN |
| 页数 / 页 | 6 / 2 — MMBT3904T. Absolute Maximum Ratings. Characteristic. Symbol. Value. Unit. … |
| 文件格式/大小 | PDF / 267 Kb |
| 文件语言 | 英语 |
MMBT3904T. Absolute Maximum Ratings. Characteristic. Symbol. Value. Unit. Thermal Characteristics. ESD Ratings. JEDEC Class
该数据表的模型线
文件文字版本

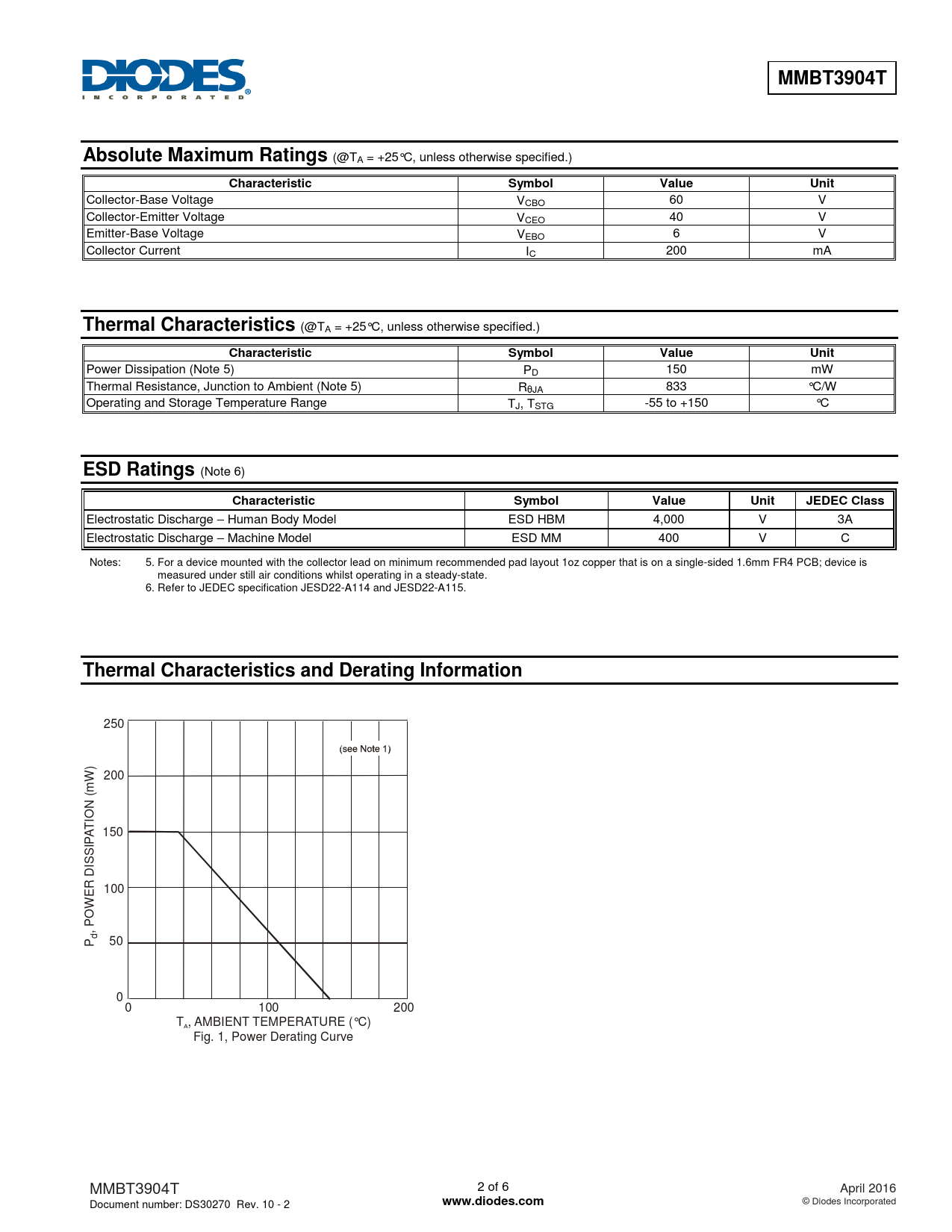

MMBT3904T Absolute Maximum Ratings
(@TA = +25°C, unless otherwise specified.)
Characteristic Symbol Value Unit
Collector-Base Voltage VCBO 60 V Collector-Emitter Voltage VCEO 40 V Emitter-Base Voltage VEBO 6 V Collector Current IC 200 mA
Thermal Characteristics
(@TA = +25°C, unless otherwise specified.)
Characteristic Symbol Value Unit
Power Dissipation (Note 5) PD 150 mW Thermal Resistance, Junction to Ambient (Note 5) RθJA 833 °C/W Operating and Storage Temperature Range TJ, TSTG -55 to +150 °C
ESD Ratings
(Note 6)
Characteristic Symbol Value Unit JEDEC Class
Electrostatic Discharge – Human Body Model ESD HBM 4,000 V 3A Electrostatic Discharge – Machine Model ESD MM 400 V C Notes: 5. For a device mounted with the collector lead on minimum recommended pad layout 1oz copper that is on a single-sided 1.6mm FR4 PCB; device is measured under still air conditions whilst operating in a steady-state. 6. Refer to JEDEC specification JESD22-A114 and JESD22-A115.
Thermal Characteristics and Derating Information
250 ) W 200 m( NOITA 150 PI S SI D R 100 E W O P , dP 50 0 0 100 200 T , AMBIENT TEMPERATURE (°C) A Fig. 1, Power Derating Curve MMBT3904T 2 of 6 April 2016 Document number: DS30270 Rev. 10 - 2
www.diodes.com
© Diodes Incorporated
