Datasheet SMBT3904 / MMBT3904 (Infineon) - 4
| 制造商 | Infineon |
| 描述 | NPN Silicon Switching Transistors |
| 页数 / 页 | 11 / 4 — SMBT3904...MMBT3904. Test circuits. Delay and rise time. Storage and fall … |
| 修订版 | 01_01 |
| 文件格式/大小 | PDF / 883 Kb |
| 文件语言 | 英语 |
SMBT3904...MMBT3904. Test circuits. Delay and rise time. Storage and fall time
该数据表的模型线
文件文字版本

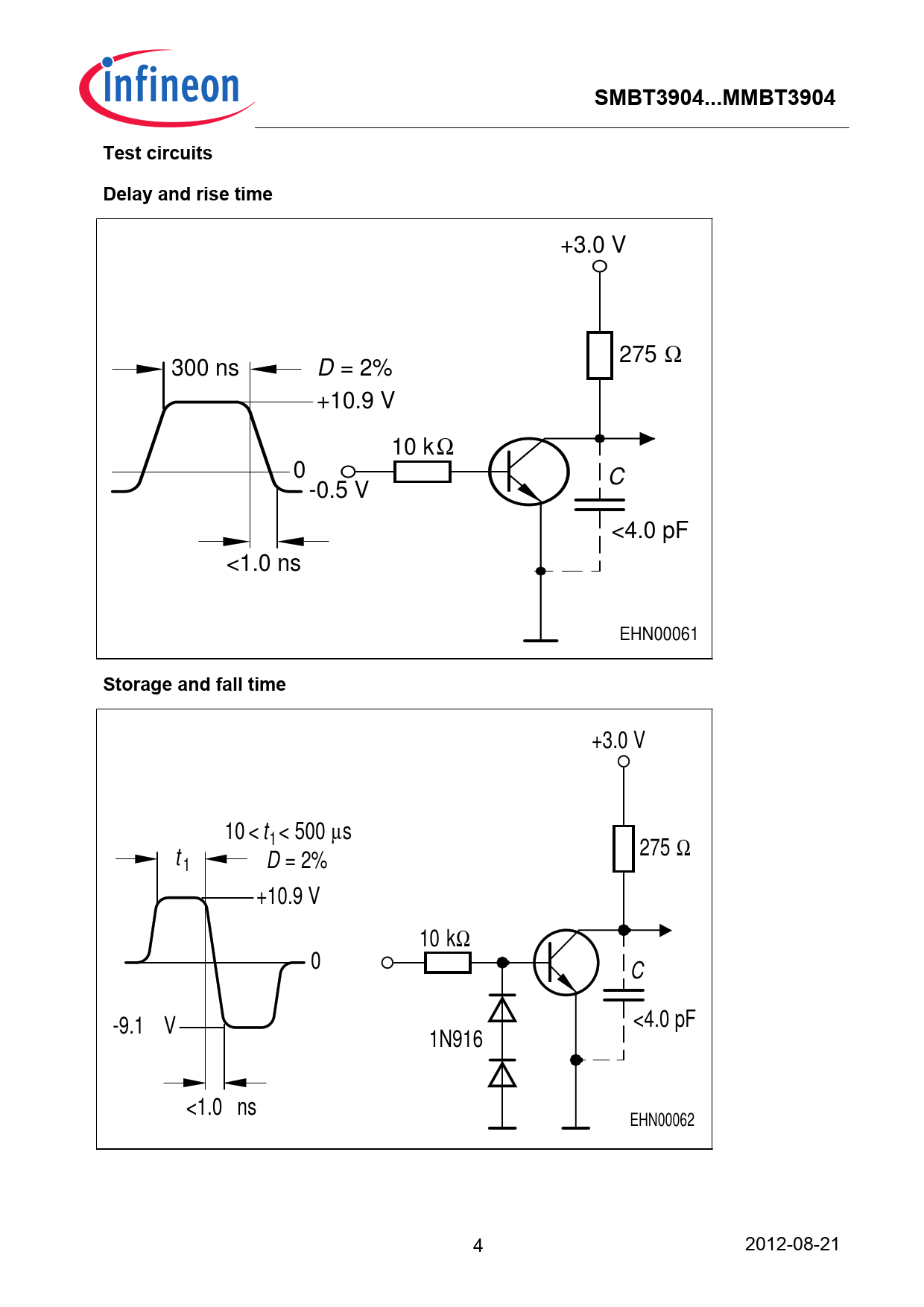

SMBT3904...MMBT3904 Test circuits Delay and rise time
+3.0 V 275 Ω 300 ns D = 2% +10.9 V 10 k Ω 0 C -0.5 V <4.0 pF <1.0 ns EHN00061
Storage and fall time
+3.0 V 10 < t < 500 1 µs 275 t Ω 1 D = 2% +10.9 V 10 kΩ 0 C -9.1 <4.0 pF V 1N916 <1.0 ns EHN00062 4 2012-08-21
