Datasheet SMBT3904 / MMBT3904 (Infineon) - 10
| 制造商 | Infineon |
| 描述 | NPN Silicon Switching Transistors |
| 页数 / 页 | 11 / 10 — Package SOT363. SMBT3904...MMBT3904 |
| 修订版 | 01_01 |
| 文件格式/大小 | PDF / 883 Kb |
| 文件语言 | 英语 |
Package SOT363. SMBT3904...MMBT3904
该数据表的模型线
文件文字版本

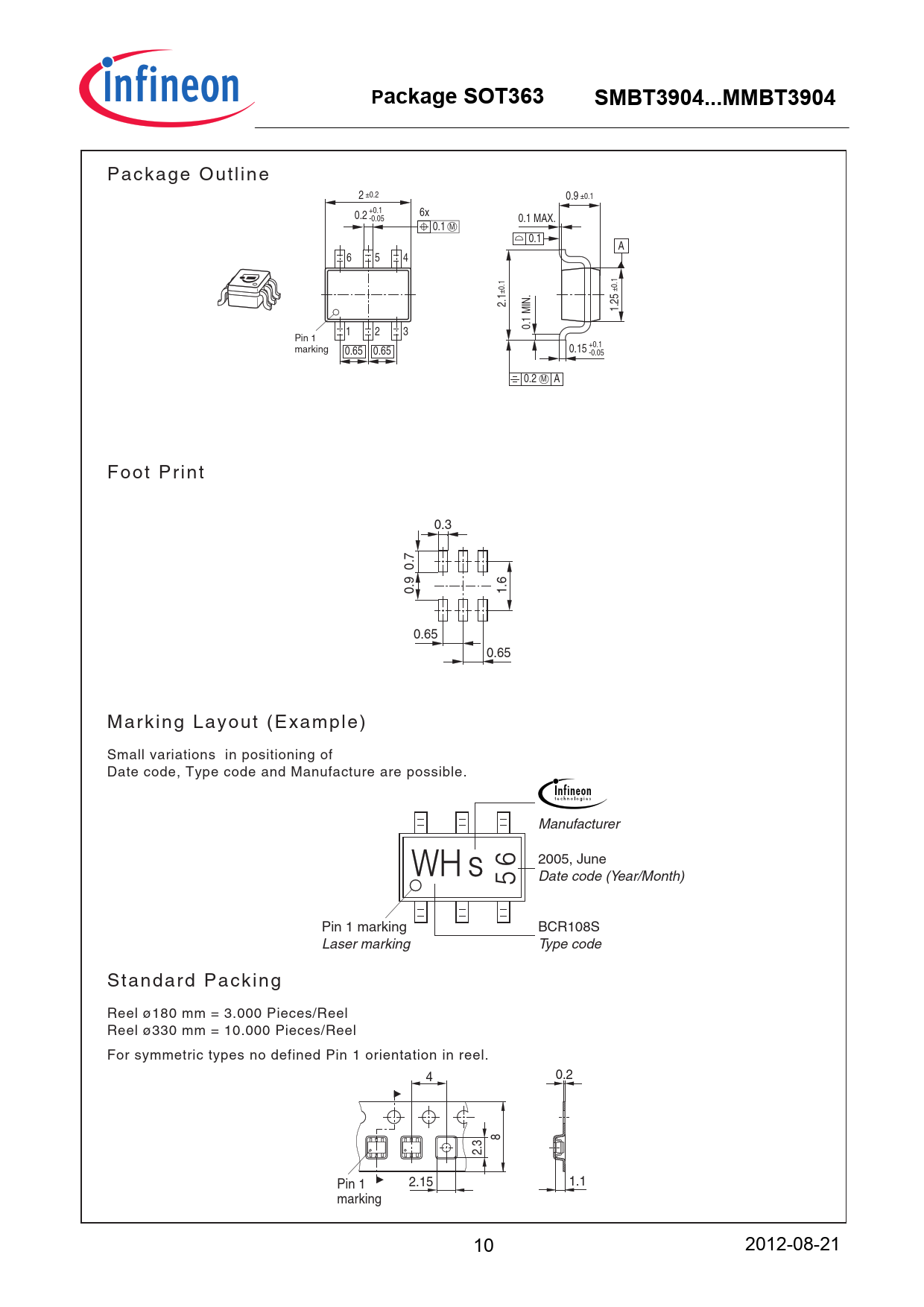

Package SOT363 SMBT3904...MMBT3904
P a c k a g e O u t l i n e 2 ±0.2 0.9 ±0.1 +0.1 0.2 6x -0.05 0.1 MAX. 0.1 M 0.1 A 6 5 4 ±0.1 ±0.1 2.1 1.25 0.1 MIN. 1 2 3 Pin 1 +0.1 marking 0.15 0.65 0.65 -0.05 0.2 M A F o o t P r i n t 0.3 0.7 0.9 1.6 0.65 0.65 M a r k i n g L a y o u t ( E x a m p l e ) Small variations in positioning of Date code, Type code and Manufacture are possible. Manufacturer 2005, June Date code (Year/Month) Pin 1 marking BCR108S Laser marking Type code S t a n d a r d P a c k i n g Reel ø180 mm = 3.000 Pieces/Reel Reel ø330 mm = 10.000 Pieces/Reel For symmetric types no defined Pin 1 orientation in reel. 4 0.2 8 2.3 Pin 1 2.15 1.1 marking 10 2012-08-21
